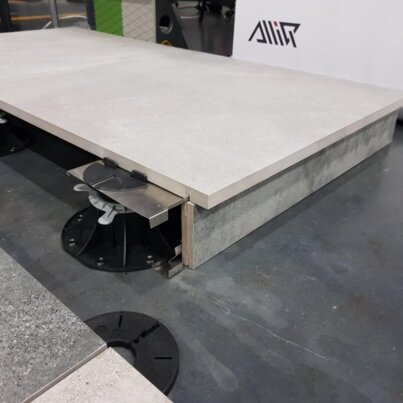

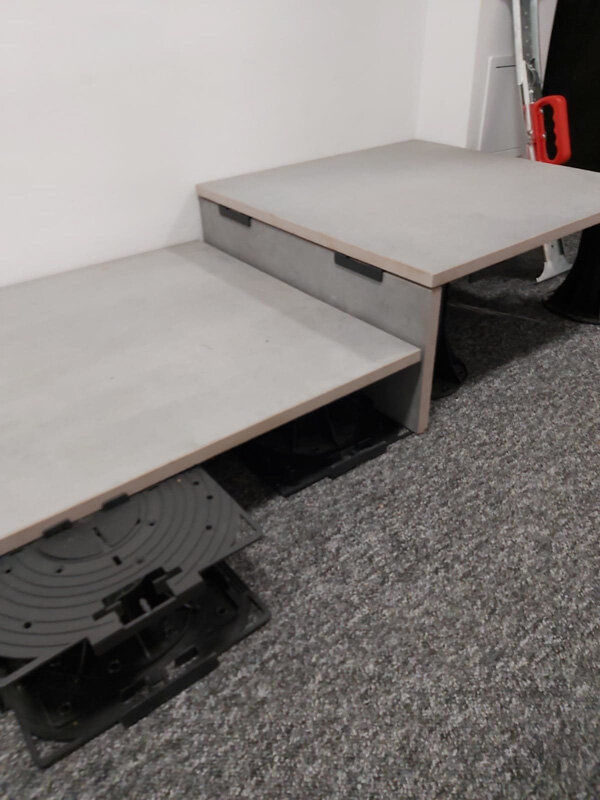

Information regarding the execution of raised deck terrace fascia boards can be found in the abbreviated installation instructions for the universal side finishing closure plate for terraces. Additionally, we present an animation showing the installation of a terrace fascia board, i.e., the vertical board masking the space under the terrace from the edge side that does not adjoin any boundary restriction.

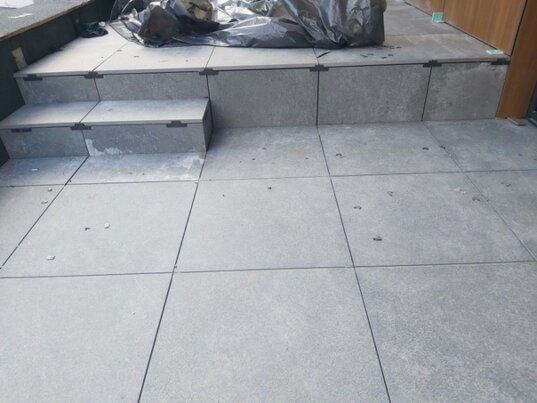

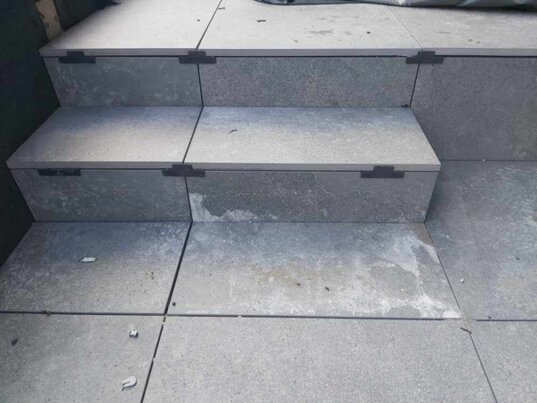

When using the side finishing closure plate for terraces, it is recommended to limit the number of steps on the terrace to a maximum of one. Installing a step requires doweling the pedestals or using adhesive for permanent fixing. Additionally, it is recommended to reinforce the installation of terrace pavers by gluing them. Detailed information on how to use the side finishing closure plate for terraces is provided in the instructions. For gluing work on raised deck terraces, it is recommended to use an appropriate adhesive, such as 3M™ 560 polyurethane sealant adhesive For stairs with more than one step, we recommend constructing a frame from aluminum joists to ensure the stability of the step structure.
The up-to-wall clip plays an essential role by creating an expansion joint between the raised deck terrace and the edge restraints. The raised deck terrace, being a type of floating floor, is not permanently connected to the building's structural elements, neither from below nor from the sides. Separating the terrace from the edge restraints, which are most often: walls, parapet walls, balustrades, window joinery, etc., is intended to create a ventilation gap between the elements. The lack of proper separation and permanent connection of the two elements leads to the formation of damp areas, which over time can lead to mechanical damage and potential leaks. Contact points exposed to moisture are particularly susceptible to biological corrosion, which significantly affects the aesthetics of these areas. The raised deck terrace, as a floating floor, is subject to the phenomenon of thermal expansion, which causes fluctuations in the dimensions of the terrace surface. Therefore, it is essential to provide adequate expansion joints between the individual elements. Failure to use proper expansion joints can lead to the occurrence of stresses and damage to the terrace, cracking of pavers, and deformation of the edge restraint elements. The up-to-wall clip creates a gap of approx. 8 mm wide, which ensures the proper distance and prevents the formation of damp contact points and damage related to thermal expansion. In the case of materials characterized by greater thermal expansion, it may be necessary to increase the width of this gap. In the case of terraces with a significant surface area, where there is an uninterrupted terrace surface with a length of 10 m, it is necessary to calculate the permissible expansion dimensions of the terrace, based on the parameters provided by the terrace flooring manufacturer, such as pavers or decking boards.

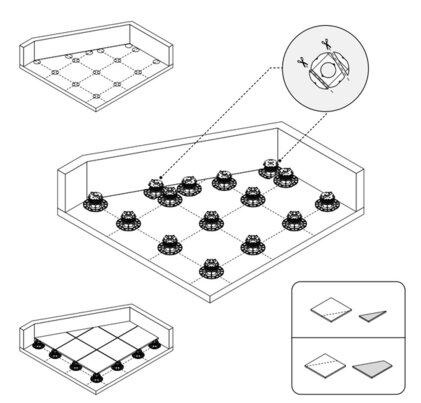

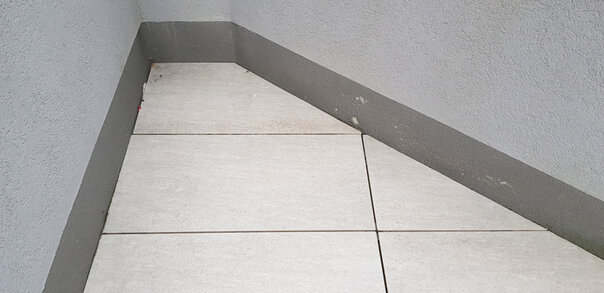

Terrace or balcony designs often feature irregular shapes due to the individual architectural design. It is important to be aware that any atypical shapes significantly complicate the terrace installation process, not only for raised deck terraces but also for those installed traditionally with adhesive. If pavers are being laid on the terrace and so-called cut pieces are created, leaving a small element that, due to its size, cannot be supported by a minimum of three pedestals, an individual installation must be carried out. Cut pieces smaller than 25 cm are characterized by reduced strength. Before starting work involving the laying of pavers on a raised deck terrace, we recommend measuring the pavers. If the measurements show that, after cutting, the pavers will be less than 25 cm, we recommend also making a cut piece at the beginning of the terrace to avoid such small pavers. Individual installation of an element for a paver terrace: Under the pavers adjacent to the small cut piece, a stainless steel sheet should be placed, cut in such a way that it covers the area where the cut paver element is to be placed. The cut piece should be glued into that area, maintaining the same gap between pavers as exists across the entire terrace.
A properly designed terrace that incorporated raised deck technology from the very beginning should be free of areas where it is difficult to install terrace pedestals. In practice, however, various situations arise where difficulties occur with the installation of a raised deck terrace. In such cases, it is necessary to find an optimal installation solution, consistent with generally accepted building standards, that will ensure the durability of the terrace across its entire surface. This may include the use of atypical support pads for leveling the terrace or bonding the entire element. When performing bonding work on raised deck terraces, we recommend using 3M™ 560 Polyurethane Sealant Adhesive
A raised deck terrace is characterized by open joints between the pavers. These joints ensure free airflow beneath the terrace and drainage of water from under each of the pavers. This is a huge advantage of a floating raised deck terrace. In traditional terraces, the joints between the pavers are filled with grout, which over time degrades under the influence of weather conditions, and water that penetrates beneath the tiles can cause damage to both the tiles and the substrate during freezing. In the case of pavers with perfectly even edges, such as 2 or 3 cm thick ceramic terrace tiles, we recommend using joint spacers with a width of 3 mm. However, for pavers with minor irregularities, such as stone tiles, we suggest using joint spacers with a width of 5 mm. We often hear concerns about the free drainage of rainwater with a 3 or 5 mm joint, but the answer is clear: a width of 3 mm or less guarantees free water drainage.

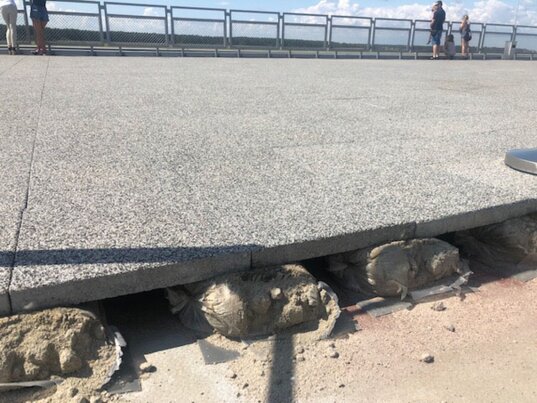

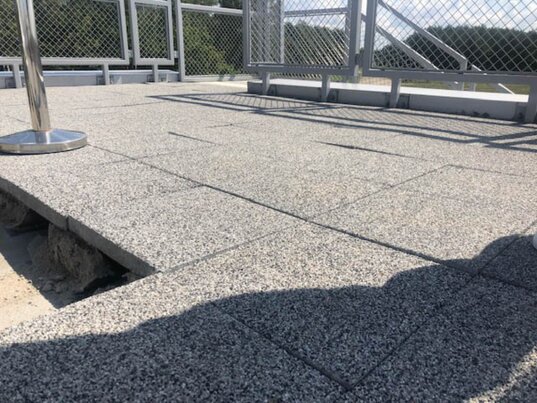

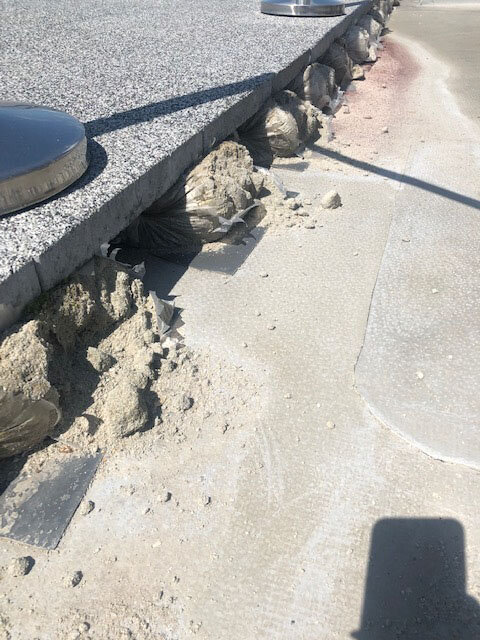

We do not recommend constructing raised deck terraces leveled on cement mortar bags. There are a number of contraindications or factors worth considering before deciding to lay a raised deck terrace on cement mortar bags. Here are a few of them:
When laying a terrace on adjustable pedestals, it is important to account for wind uplift forces to ensure the stability and durability of the paving surface. Wind can exert significant pressure on a raised deck terrace, which may cause it to shift or even lift if appropriate precautions are not taken. Here are a few things to consider:

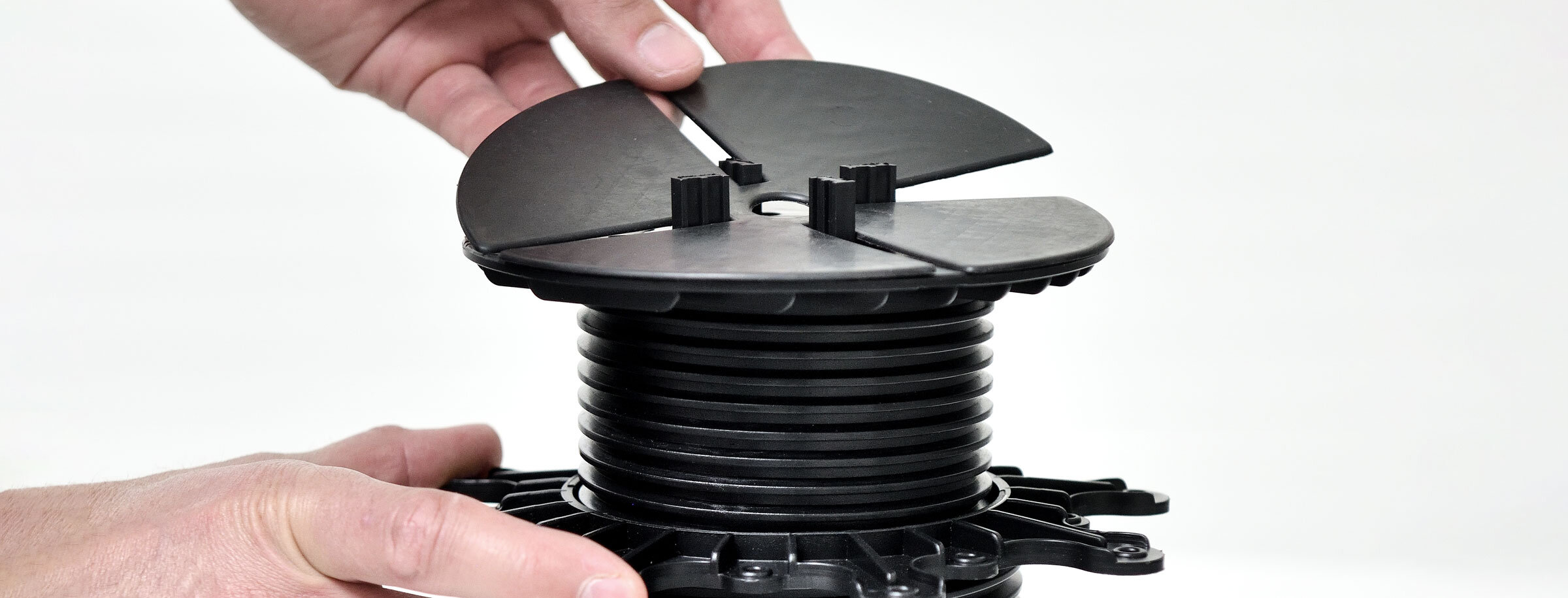

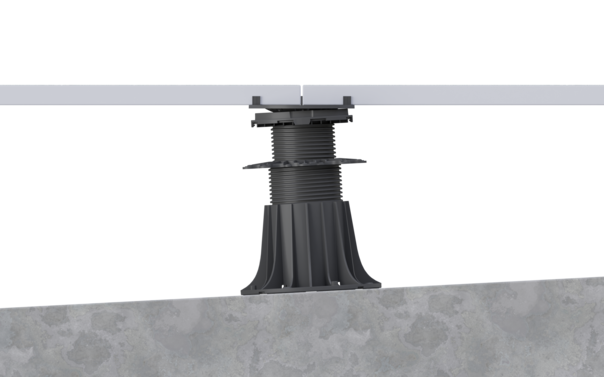

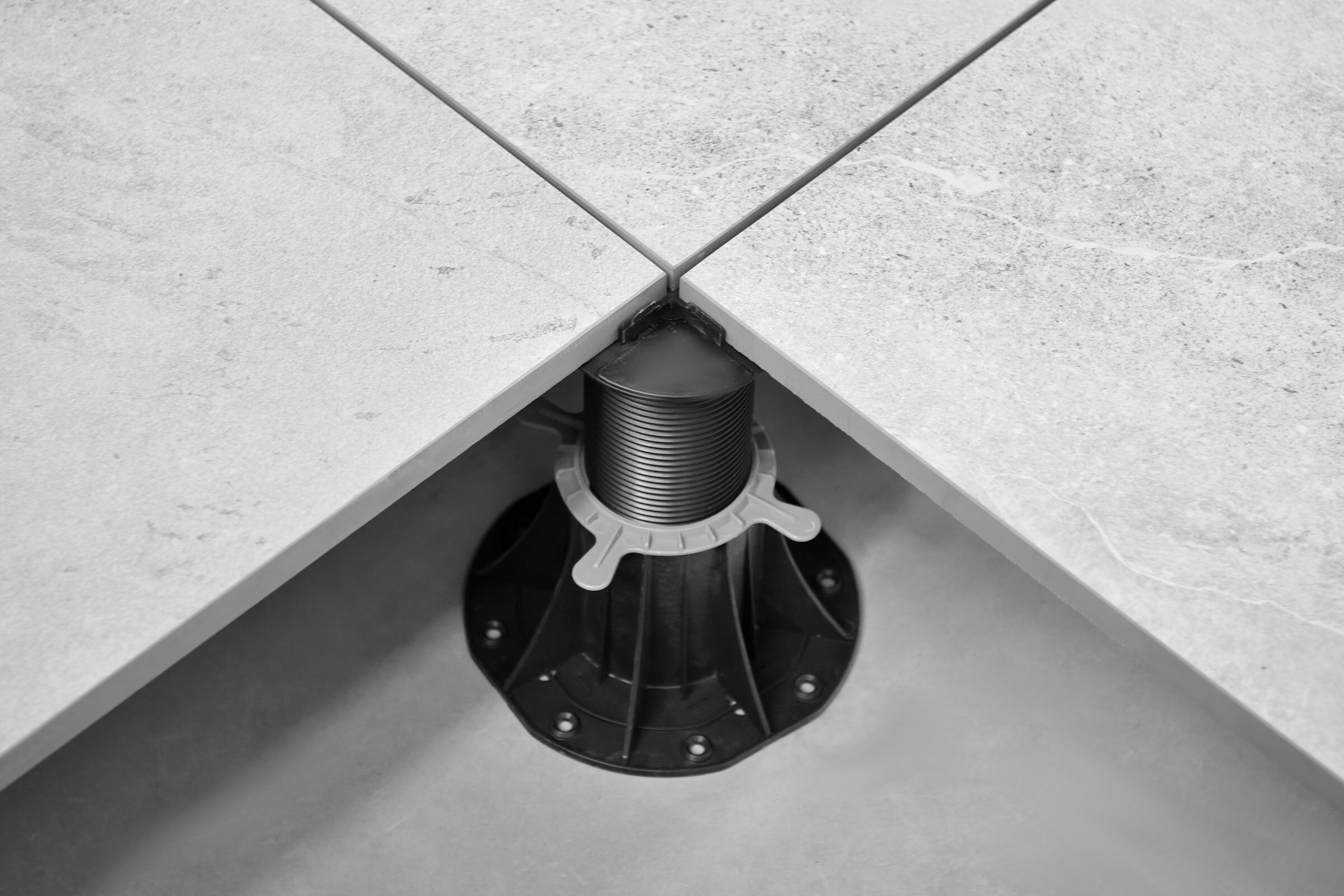

The self-leveling head is an additional element of the pedestal head, consisting of two components with a spherical shape. The terrace pavers rest on the head with their corner. Before laying the last fourth paver, the height can be adjusted using the nut on the pedestal to achieve the desired terrace level. After laying the pavers and walking on the terrace, the self-leveling head is loaded only in the vertical axis, so it does not change its position while walking on the terrace.

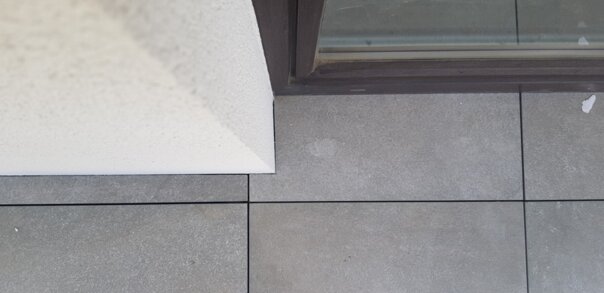

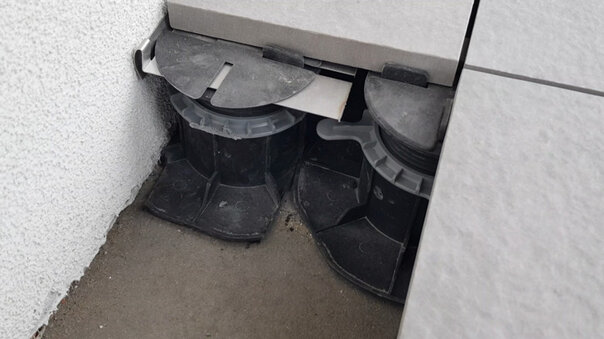

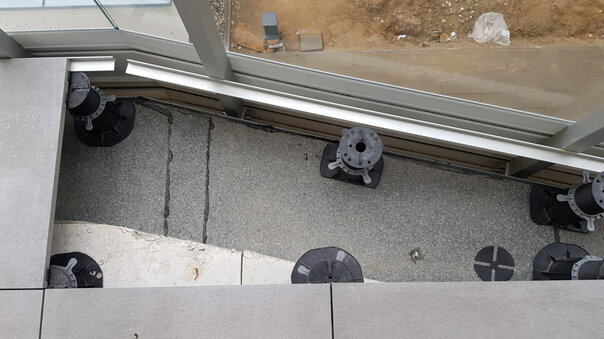

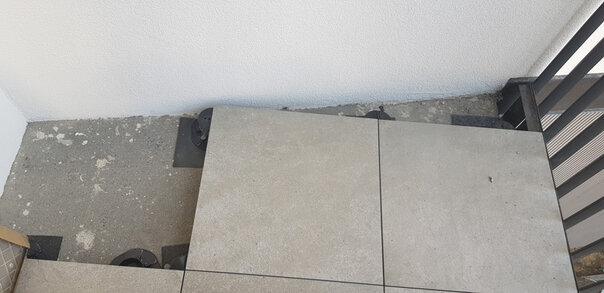

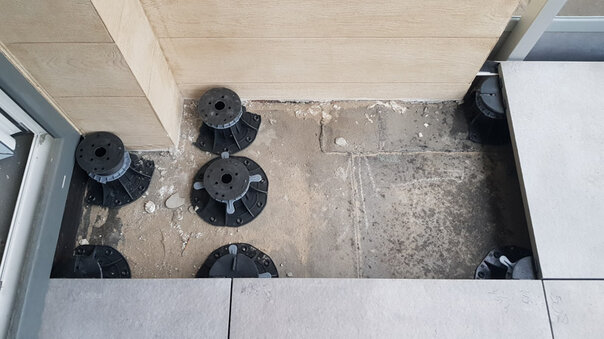

No, in these places there is no need to use other pedestals with a special shape. Terrace pedestals can be placed directly against the wall (the edge boundary of the terrace) or in the corner of the terrace. In such places, we cut their base so as to bring the pedestal as close to the wall as possible. We recommend that the part of the terrace without support at the wall or in the corner does not protrude more than 4 cm beyond the outline of the top cap of the pedestal. After cutting the base, we recommend using See also: Terrace accessories to protect the substrate from sharp edges.

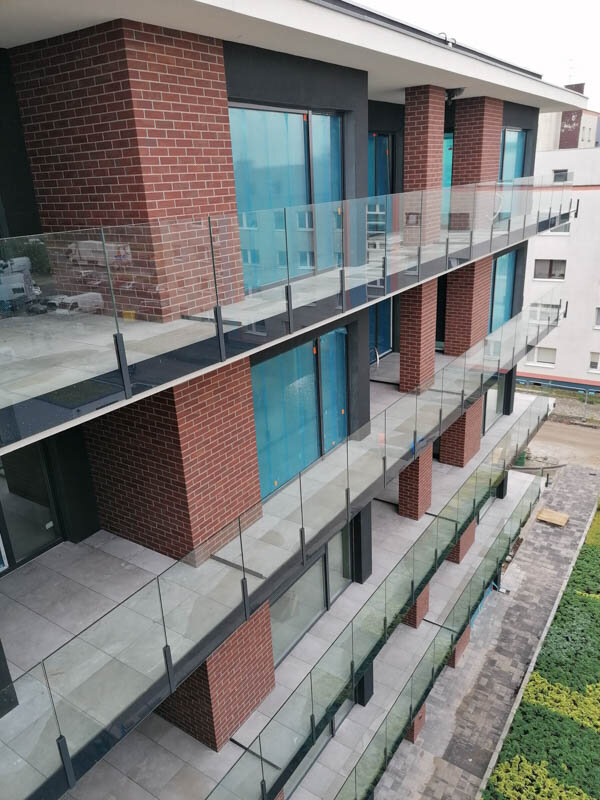

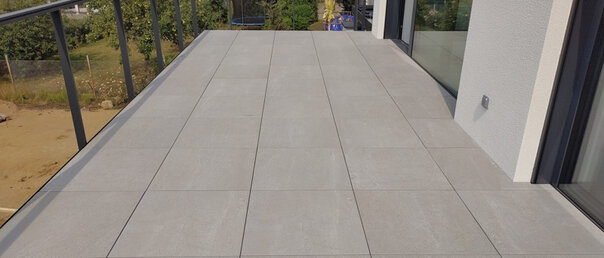

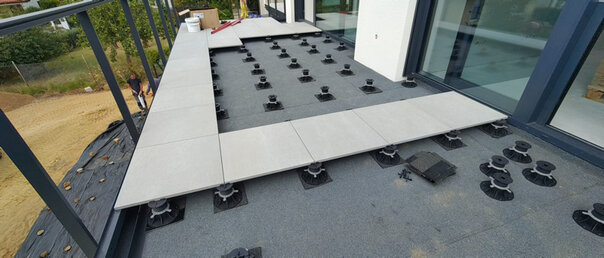

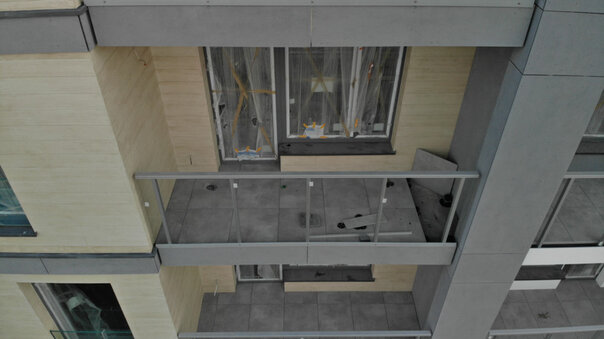

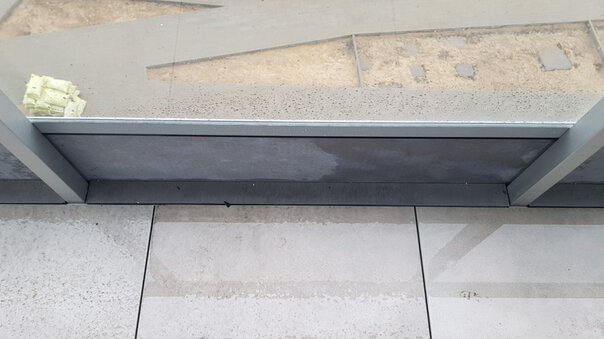

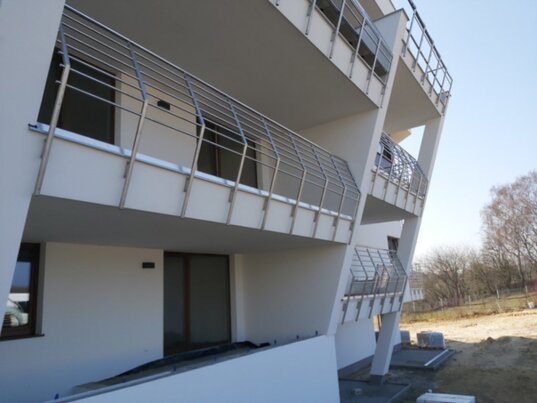

A raised deck terrace has a void underneath, which remains visible if there is no edge border in the form of a wall or parapet. When planning a raised deck terrace, it is best to prepare a detailed design with a cross-section through the terrace layers in advance. Only completing the design will give us certainty that nothing will surprise us during construction. We encourage designers to download a free package of files useful for designing raised deck terraces - download the raised deck terrace designer accelerator. The optimal solution is to design an approximately 10-20 centimeter side finishing closure plate in the railing, whose height depends on the expected pedestal height. Another good solution for installing a raised deck terrace with a railing is to rest the last paver on an aluminum angle profile riveted to the railing. Such a mounted profile serves simultaneously as support and edge border for the terrace. Below we present a cross-section through such a terrace and photos. In cases where it is not possible to rivet the aluminum angle profile to the railing posts, side finishing closure plates can also be made using See also: Closure clips set SPIRAL, STANDARD, MAX – grey. For balconies, we recommend installing 2 cm thick pavers, which can be mounted on physical anchors. Mechanical mounting of pavers on anchors built into the side finishing closure plate ensures that such a paver will not fall off the terrace. We also encourage designers to submit their designs for a free consultation regarding raised deck terrace technology.
The sides of the terrace should be secured in such a way that animals do not have the possibility to get under the structure. As for smaller insects, there is a certain probability that such an event will occur, however it is the same as for any other part of the building. Furthermore, the possibility of inspection allows for an easy resolution of a hypothetical problem through access to the space under the terrace.

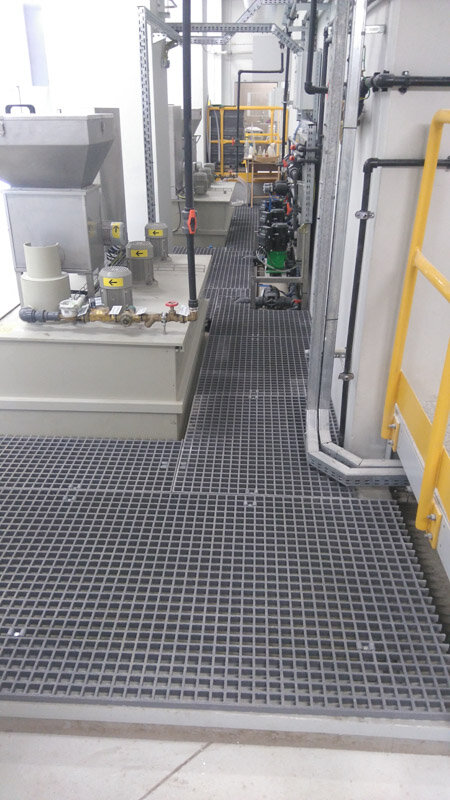

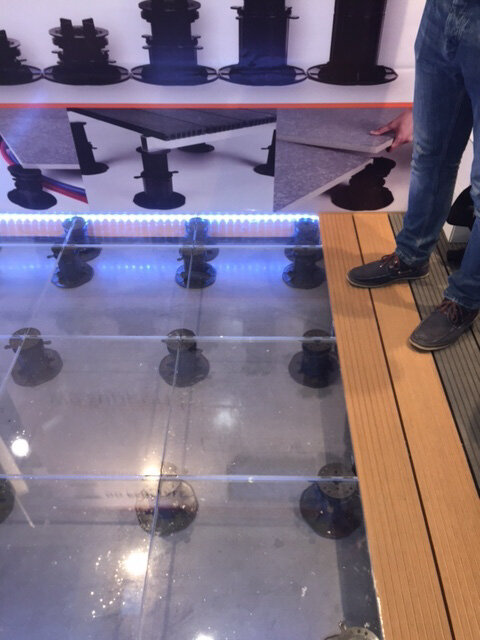

Adjustable pedestals for installing floating floors and raised deck terraces are useful for laying and leveling floors inside buildings. They are widely used when laying wooden floors on joists during the renovation of old buildings, as well as when installing parquet and floors in sports halls. Furthermore, they can be used when laying so-called walkway gratings on technical paths in industrial plants and other places. It is worth remembering that the requirements for using these solutions may vary between individual countries, especially regarding fire safety regulations. In some countries, adjustable pedestals are commonly used and accepted, while in others they may be difficult to use in accordance with applicable regulations.

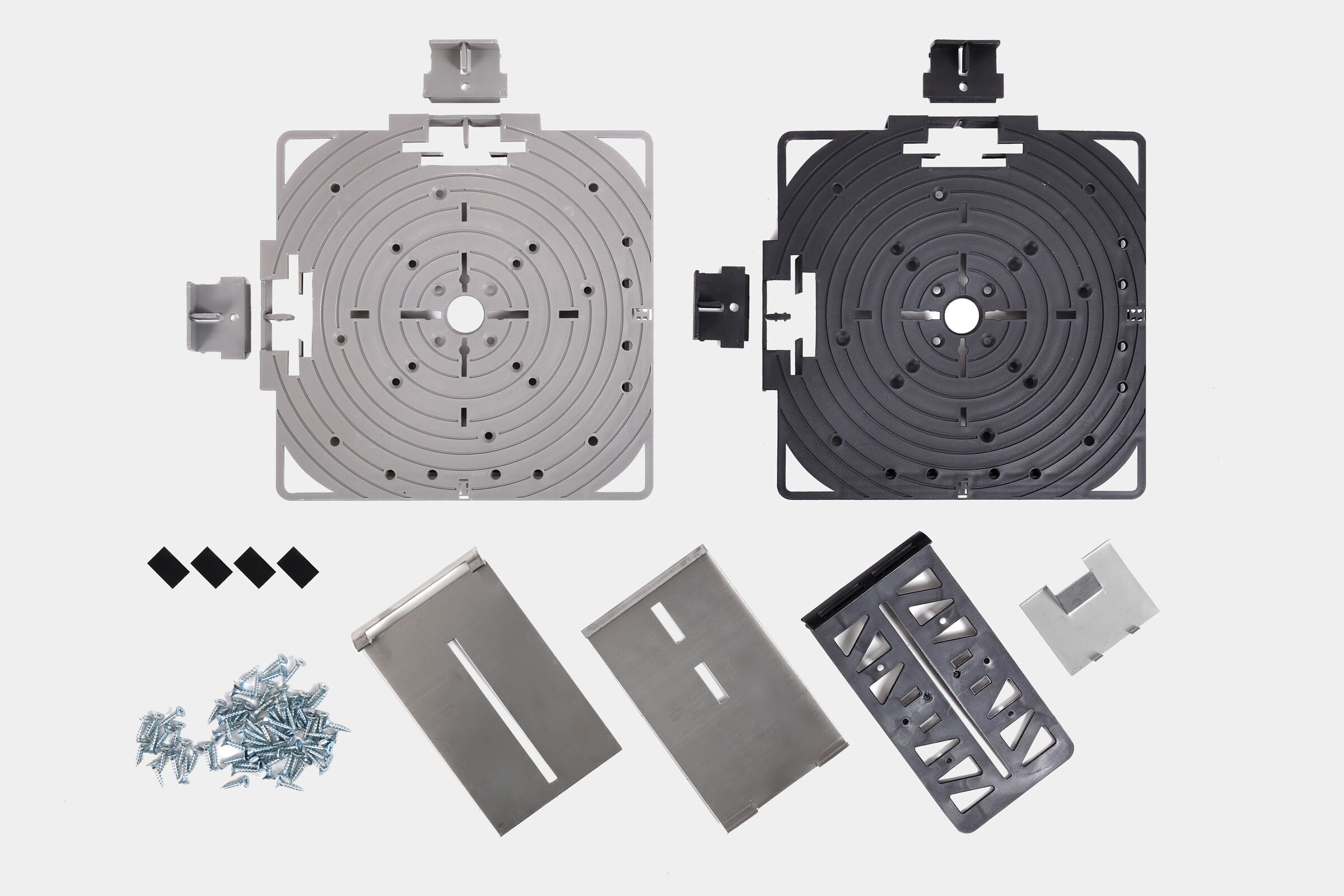

See also: Terrace accessories is used for the purpose of: Protecting the substrate on which the pedestals rest. This is usually a delicate waterproofing layer that could, over time, vulcanize with the base of the terrace pedestal or become damaged as a result of the pedestal base pressing into it under load. We recommend using protective pads under pedestals in the case of delicate waterproofing membranes that may be susceptible to damage. Leveling out unevenness beneath the pedestal. Often, the surface on which adjustable pedestals for raised deck terraces are installed has irregularities that are best leveled out with protective pads made of SBR rubber granulate. Rubber pads can be cut with a knife to any size and shape to best level the substrate beneath the pedestal. Acoustic protection for rooms below the terrace. If an adjustable pedestal is placed on a ceiling slab beneath which there are rooms, and the slab itself does not have adequate acoustic insulation, it may happen that people in those rooms will hear sounds related to walking on the terrace. Using rubber protective pads will help improve acoustic insulation. When setting pedestals on a hard substrate, such as a concrete screed, slight cracking sounds may occur while walking, caused by fine particles of sand and concrete beneath the pedestal. Using rubber protective pads effectively prevents unwanted sounds associated with terrace use. To improve acoustic comfort, in addition to using pads beneath the pedestals, we also recommend using rubber pads between the pedestal head and the terrace paver. You will find more information in the answer to the question:—---------------
General Terms and Conditions of Deck Dry Sp. z o.o. Orders Orders are accepted via email. Based on the order, a proforma invoice is generated and sent back. The next stage depends on the payment terms agreed individually. It is possible to place orders with any delivery address in Poland. Order Fulfillment Orders are fulfilled within the timeframes indicated by Deck Dry after the order is accepted and after the formalities related to payment and confirmation of the order amount are completed, depending on the payment terms: cash on delivery orders are shipped after acceptance of the amount on the proforma invoice or another calculation of the order value. orders fulfilled on a prepayment basis are shipped after the payment is credited to the Deck Dry Sp. z o.o. account. orders fulfilled with a payment deadline are shipped at the agreed time and after acceptance of the order value calculation. The condition for fulfilling an order with deferred payment terms is the absence of overdue payments on the Customer's account and not exceeding the established trade credit limit. During peak terrace season periods, order fulfillment times may be extended up to 7 business days. We will inform you of the extended fulfillment time when confirming the order. If the Customer does not accept the proposed delivery dates, we consider the order cancelled. Payment Terms Payment terms are established individually with each customer. For new contractors, orders are fulfilled upon 100% prepayment or cash on delivery. The condition for initiating order fulfillment on a prepayment basis is the receipt of funds into the Deck Dry account. Deferred payment terms are possible only if the turnover with the Customer can be insured with TU Euler Hermes. Upon obtaining positive verification, an individual trade credit is established. The condition for maintaining deferred payment terms is timely payment of liabilities. In the event of payment delays, Deck Dry may refuse to fulfill subsequent orders and may refuse to fulfill orders with deferred payment terms in the future. Delivery Costs For deliveries below 1 pallet sent by courier company, the delivery costs are borne by the customer depending on the number of packages according to the table below, Deck Dry undertakes to pack the goods into the smallest possible number of packages within the size and weight limits of packages applicable at the courier company performing the delivery, delivery cost table: Number of packages Shipping cost [net] Return documents [net] Total shipping cost [net] 1 package PLN 25.00 PLN 5.00 PLN 30.00 2 packages PLN 50.00 PLN 5.00 PLN 55.00 3 packages PLN 75.00 PLN 5.00 PLN 80.00 4 packages PLN 100.00 PLN 5.00 PLN 105.00 5 packages PLN 125.00 PLN 5.00 PLN 130.00 6-10 packages PLN 155.00 PLN 5.00 PLN 155.00 deliveries above 20 cartons (10 courier packages) are carried out at Deck Dry's expense Returns Returns are accepted on the following terms: Maximum within 2 months from the date of purchase (the period may be extended individually in justified cases), After prior notification to Deck Dry and agreement on the approximate return date, The condition for a full refund is the delivery of the goods in undamaged condition, without soiling, in original cartons, In the case of damage or significant soiling, Deck Dry may refuse to accept the returned goods, In the case of a return in damaged packaging or packaging other than the original, Deck Dry will reduce the return value by the cost of repackaging for each non-original or damaged carton. The costs of sending returns are borne by the person returning the goods, In the case of sending a return that violates the conditions described in point 4, in subpoints a., b. and c., Deck Dry will send the returns back to the customer and charge them for the return shipping costs, except in situations where the parties agree on a different solution, by mutual consent, Deck Dry undertakes to refund the amounts due for returns within 14 days of accepting the returns at its warehouse, Returns are accepted exclusively at the Deck Dry warehouse located in Gdańsk at ul. Wenus 73 A. Prices Prices are established individually for each customer. Multiple price lists may apply to a single recipient depending on the order size. This applies to recipients placing full-pallet orders and those handling investment projects.
We know that precisely planning the required quantity of ordered products for project completion is extremely difficult. To meet expectations, we allow returns of ordered products. Returned products must be in their original, undamaged packaging and show no signs of use. The return shipping costs are borne by the returner.

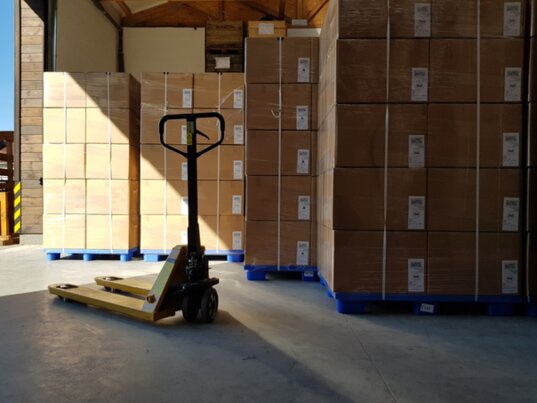

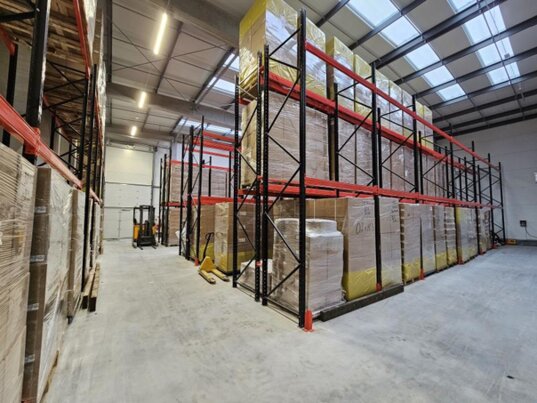

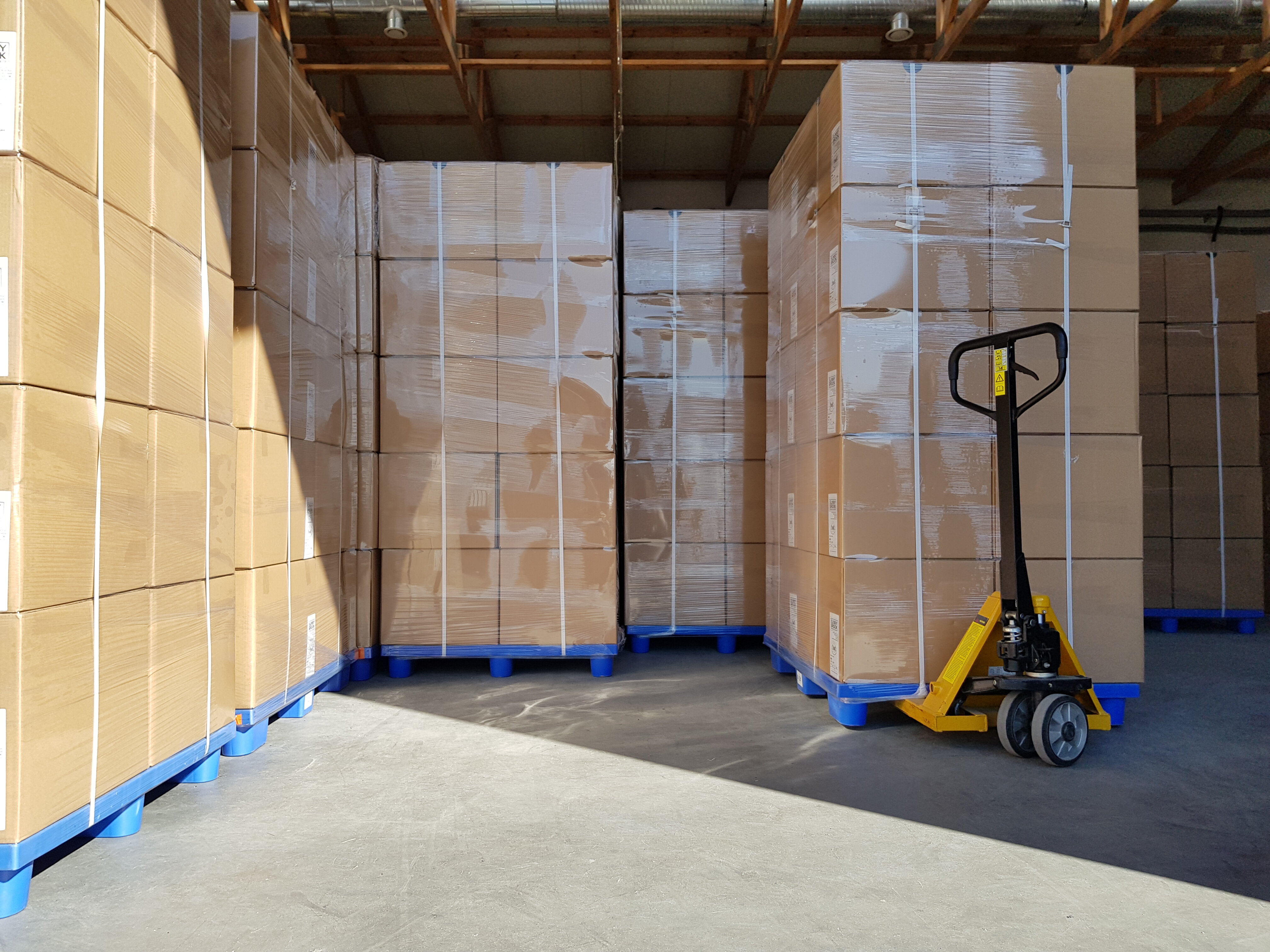

As a manufacturer, we flexibly adapt our production to the current order structure, eliminating the phenomenon of &34;waiting for delivery&34; common among many importers. Even during periods of highest demand for pedestals, such as spring and summer, we ensure uninterrupted supply. No projects carried out with us have ever been halted due to a lack of pedestals. Typically, the waiting time for pedestal shipment is one or two business days. In exceptional situations or for individual orders, the deadline may be slightly extended. Transport time depends on the planned shipping date and the quantity of goods transported, but it usually falls within the range given below: Austria 1-2 days Belgium 3-4 days Bosnia and Herzegovina 4-5 days Bulgaria 3-5 days Croatia 3-4 days Montenegro 5-6 days Czech Republic 1-2 days Denmark 3-4 days Estonia 3-4 days Finland 4–6 days France 3-4 days Greece 3-4 days Spain 3-6 days Netherlands 2-3 days Ireland 4-5 days Lithuania 1-2 days Luxembourg 3–4 days Latvia 2-3 days Germany 2-3 days Norway 3-6 days Portugal 6-7 days Romania 2-3 days Serbia 4-5 days Slovakia 1-2 days Slovenia 3-4 days Scotland 4-5 days Switzerland 2-3 days Turkey 6-8 days Hungary 2-3 days United Kingdom 3-4 days Italy 3-6 days NORTH AMERICA 4-5 weeks ASIA 4-5 weeks AUSTRALIA 6-7 weeks
PRODUCT QUALITY:
ENVIRONMENTAL PROTECTION:
BENEFITS FOR CONTRACTORS:
Raised deck terraces on pedestals installed on thermal insulation are susceptible to deflection, related to the reduced hardness of the substrate compared to, for example, a concrete substrate. It is entirely possible to install a raised deck terrace on thermal insulation, provided it has adequate hardness. It should be remembered that the minimum permissible substrate hardness is 200 kPa/m2, and the recommended value is 300 kPa/m2. Thanks to these parameters, we will avoid the risk of substrate deflection. Below are our recommendations regarding the hardness of XPS boards. In the case of the thermal insulation layer, it is most often necessary to apply roofing felt or another protective layer safeguarding the insulation against UV and oxidation, in accordance with the insulation manufacturer's recommendations and building practices. In exceptional cases, when the substrate under the raised deck terrace has been made without meeting the parameters described above, one can try to remedy the situation by increasing the surface area of the pedestal base. The larger the base surface area, the more the total load is distributed over a larger area, and therefore the substrate deflection during use will be smaller. One can try to use pedestals from the MAX series, which have a base diameter of 210 mm. One can also use pedestals with a side finishing closure plate DDP CP placed underneath, whose dimension is 257x257 mm. In cases where the substrate does not meet the recommended hardness parameters, tests should always be carried out to check the deflection of the substrate under the pedestal and to assess whether they are acceptable and permissible.

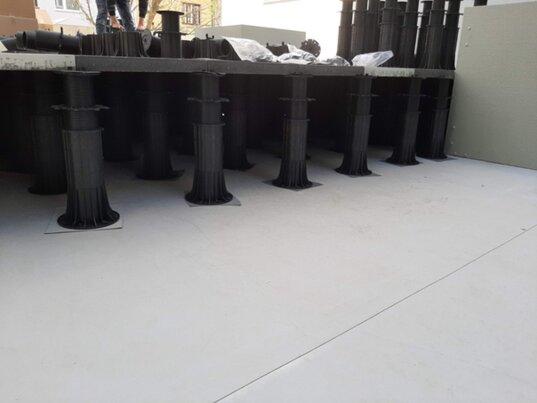

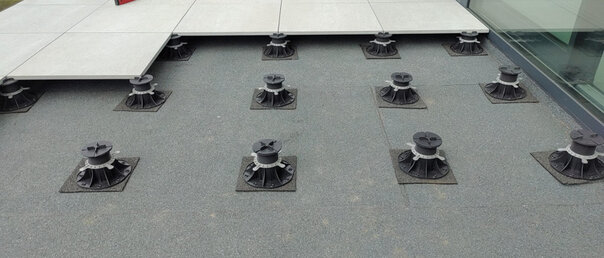

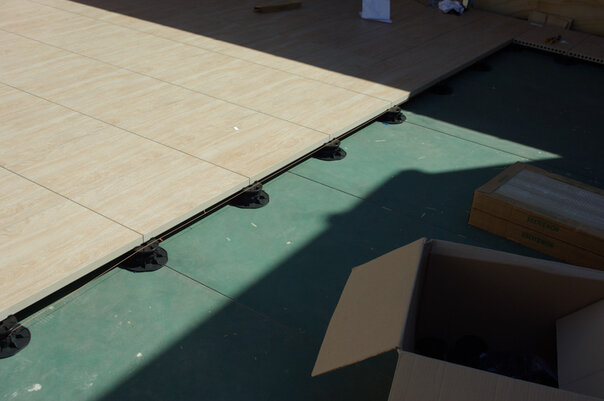

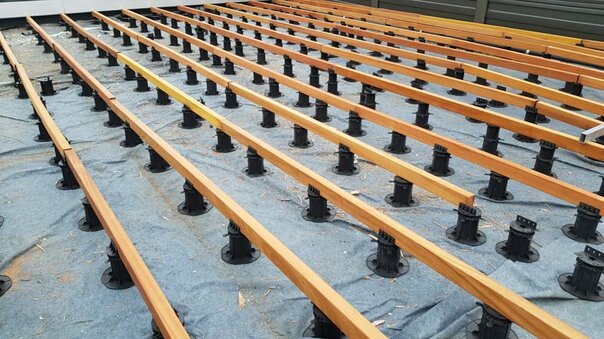

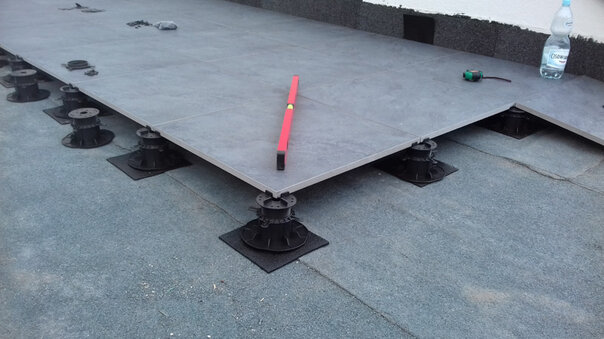

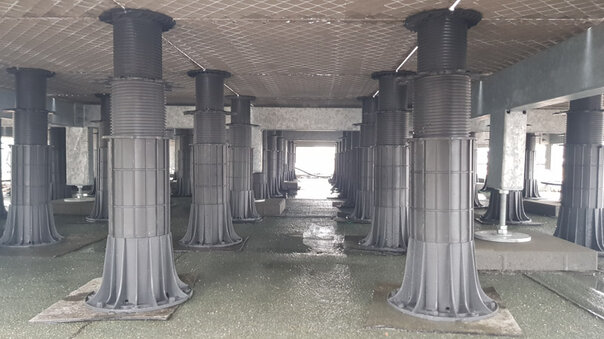

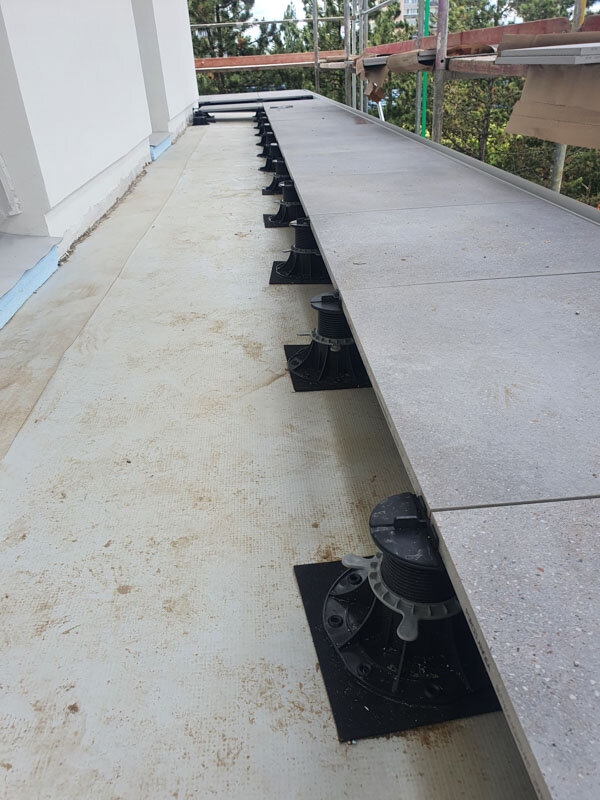

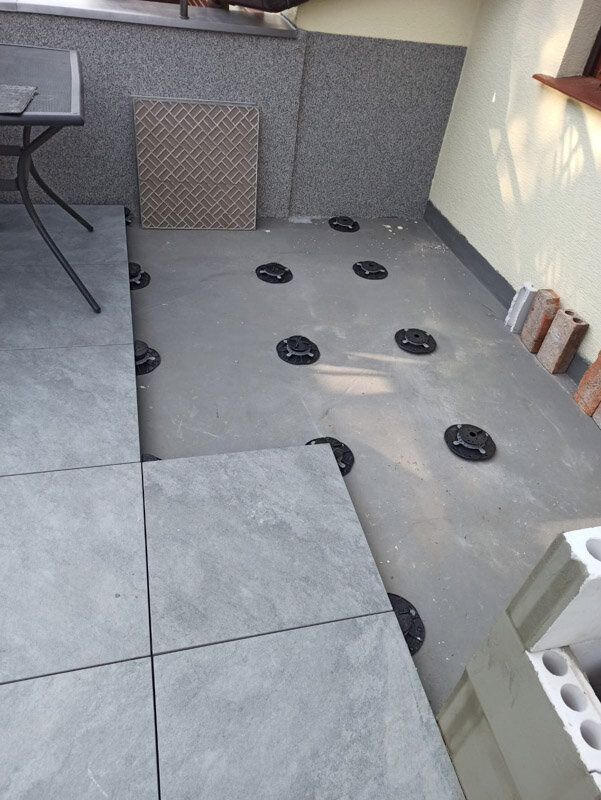

When installing terrace pedestals on a waterproofing layer, additional protection in the form of a separating element between the pedestal base and the substrate should be considered. Our pedestals feature specially designed, appropriately rounded edges to avoid damaging the insulation layer. Despite the fact that our customers have laid pedestals directly on the waterproofing without additional protection, our recommendation is to use See also: Terrace accessories if possible. These may also be protective pads made of another material, provided they effectively protect the insulation from damage.
Raised deck terraces are implemented as a floating technology, which means they do not require permanent bonding or anchoring to the substrate, similar to other floating floors. Recommendations regarding bonding or anchoring typically apply to specific areas of the terrace. Sometimes this is recommended, e.g., on the last rows of pedestals at the terrace edge, or for individual pedestals, to provide additional stabilization. In the case of terraces without edge restraints, or when installing vertical terrace finishing boards, the so-called bottom fascia boards, we recommend bonding the pedestals located at the terrace edge. A significant advantage of terraces on pedestals is that they do not require permanent fixing to the substrate, which minimizes the risk of damage to the frequently used waterproofing membrane. The raised deck terrace system is a response to bonded terraces, which in temperate climates can easily be damaged by cyclic freezing and thawing throughout the year when the temperature exceeds 0°C. Regarding bonding work on raised deck terraces, we recommend using an appropriate adhesive for this purpose, such as 3M™ 560 Polyurethane Sealant Adhesive
See also: Is it necessary to glue or dowel terrace pedestals to the substrate?

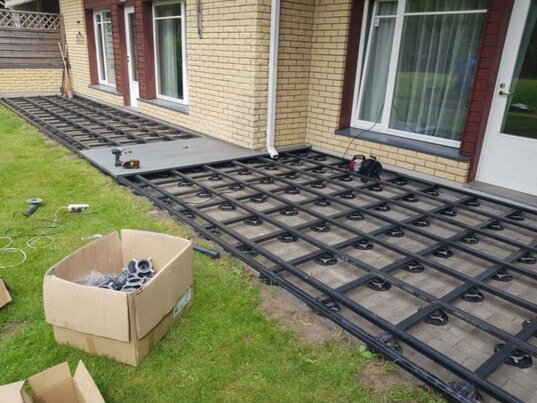

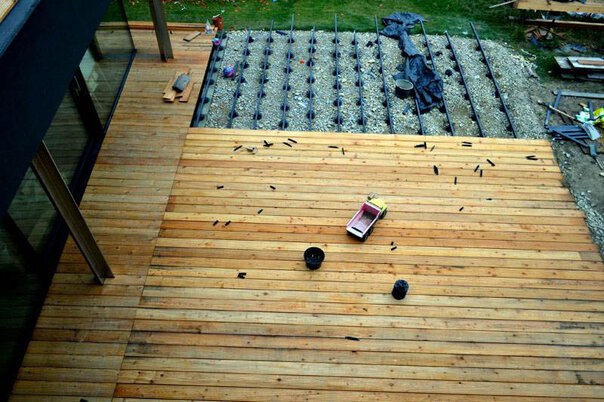

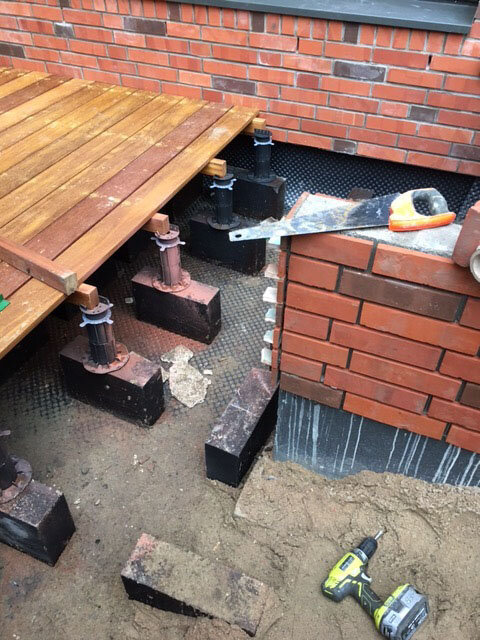

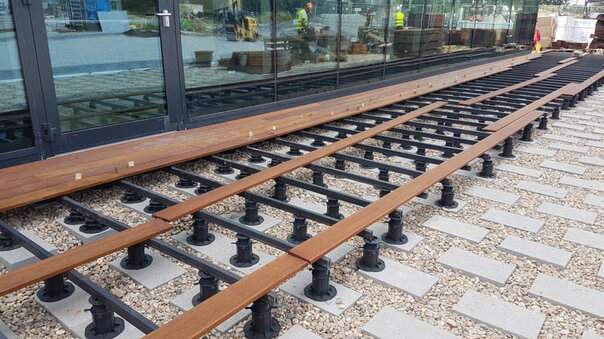

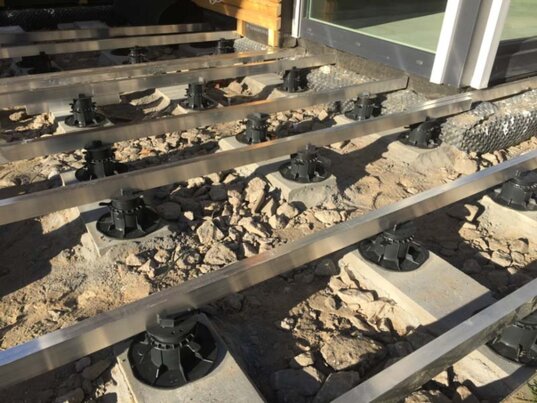

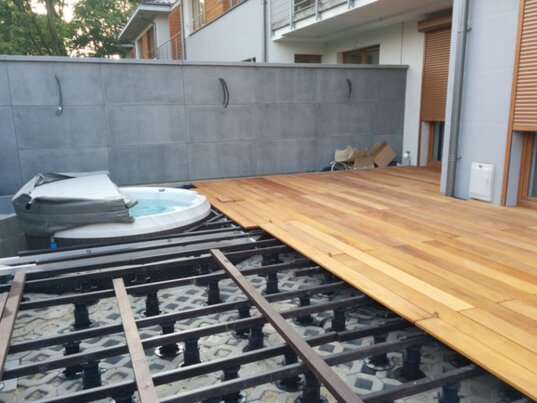

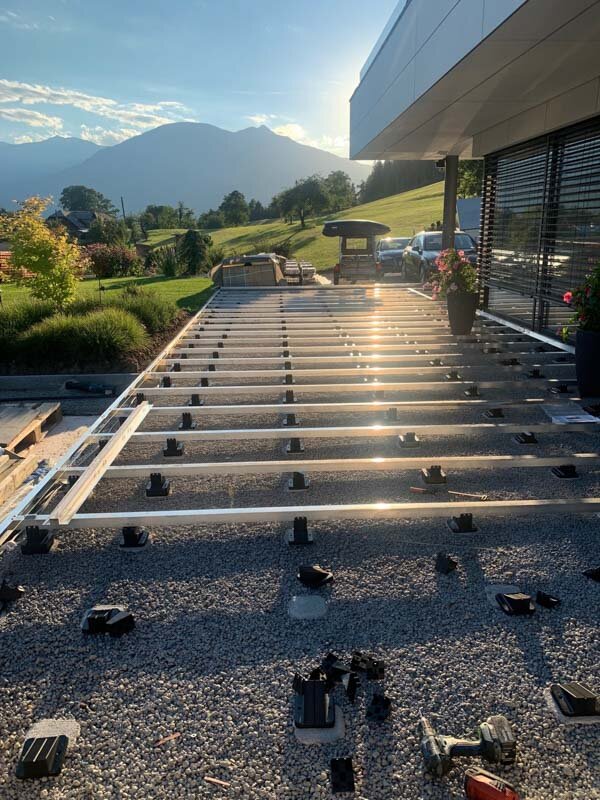

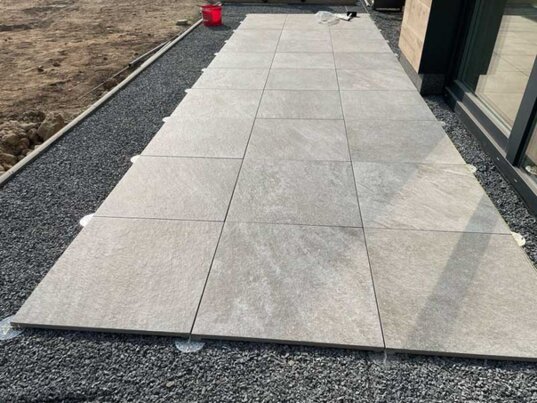

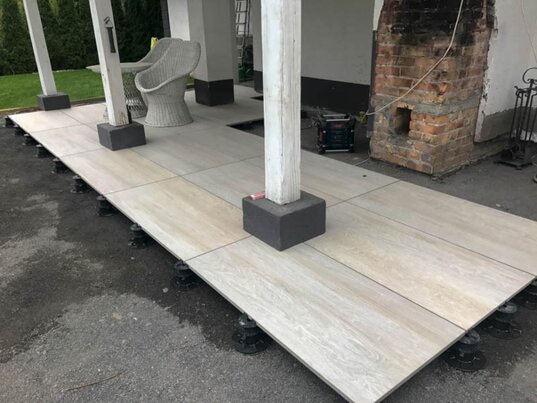

It is possible to set pedestals on so-called "ground," however, such a base needs to be properly prepared. To set pedestals on the ground, approximately 50 cm of soil must be removed. Then, this area should be filled with aggregate, preferably coarser (about 40-80 mm), and then finer (0-20 mm), after which the layers should be thoroughly compacted with a compactor. However, it should be noted that such a base depends on local geological conditions, and despite proper layer application, ground settlement and the need for periodic pedestal adjustment cannot be ruled out. For setting pedestals directly on the ground, we recommend using concrete blocks, which provide stable and durable support for the pedestals. A raised deck terrace, like any type of structure, needs a solid foundation in the ground. More information on types of bases and their properties can be found in the article - See also: How to build a raised deck terrace on gravel, grass, or concrete yourself?
One of the key advantages of a floating raised deck terrace is that it does not require installation according to the slope or inclination of the surface on which it is placed, such as a roof or balcony. Thanks to this, it can serve as a natural extension of the indoor floor, providing the user with exceptional comfort. A raised deck terrace effectively drains water through the gaps between pavers or boards, which means that no slope is necessary for free water runoff. After rainfall, water may remain on the terrace surface, but it will quickly evaporate. It is worth noting that the phenomenon of water surface tension causes the ends of pavers or boards to dry slightly slower even on a slope. This is a natural phenomenon that can sometimes be incorrectly interpreted as an installation error or material defect, but it results from the properties of surface tension (similar to raindrops on a vertical window pane). In the case of raised deck terraces, we recommend using minimum slopes ranging from 1% to a maximum of 2%. These slight inclinations are practically invisible to the user, while effectively draining water from the terrace surface, ensuring protection of walls, window and door joinery from its effects.
Pedestals should be placed on a hard, level surface free of contaminants. In the case of surfaces covered with waterproofing, carefully review the layers beneath the waterproofing and the manufacturer's instructions. The pedestals are designed so that the underside of the base has no sharp edges that could damage the waterproofing. The most common types of waterproofing on which pedestals can be placed directly are cap sheet roofing felt, EPDM, PVC, as well as slurry waterproofing. Nevertheless, for complete safety, we recommend using SBR rubber pads. In the case of underlayment felt, liquid waterproofing, or other waterproofing for which the manufacturer recommends protective layers, an SBR rubber pad should be used, as there is a risk of damage. In cases where the waterproofing is laid directly on the thermal insulation layer, the compressive strength of the thermal insulation must be determined (the minimum value is 200 kPa/m2, the optimal value is 300 kPa/m2 or higher).
Based on our experience, built on thousands of completed projects, we have never encountered users complaining about this type of odor. The main reason this situation should not occur is that the roofing felt is not directly in the sun but under the terrace, covered by pavers or boards, so it does not heat up to very high temperatures. Furthermore, it is important that the roofing felt on which the terrace pedestals will be placed is a top-layer roofing felt without exposed asphalt adhesive, which could emit an unpleasant odor. Any doubts regarding the use of roofing felt as a base for a raised deck terrace should be consulted with the roofing felt supplier.

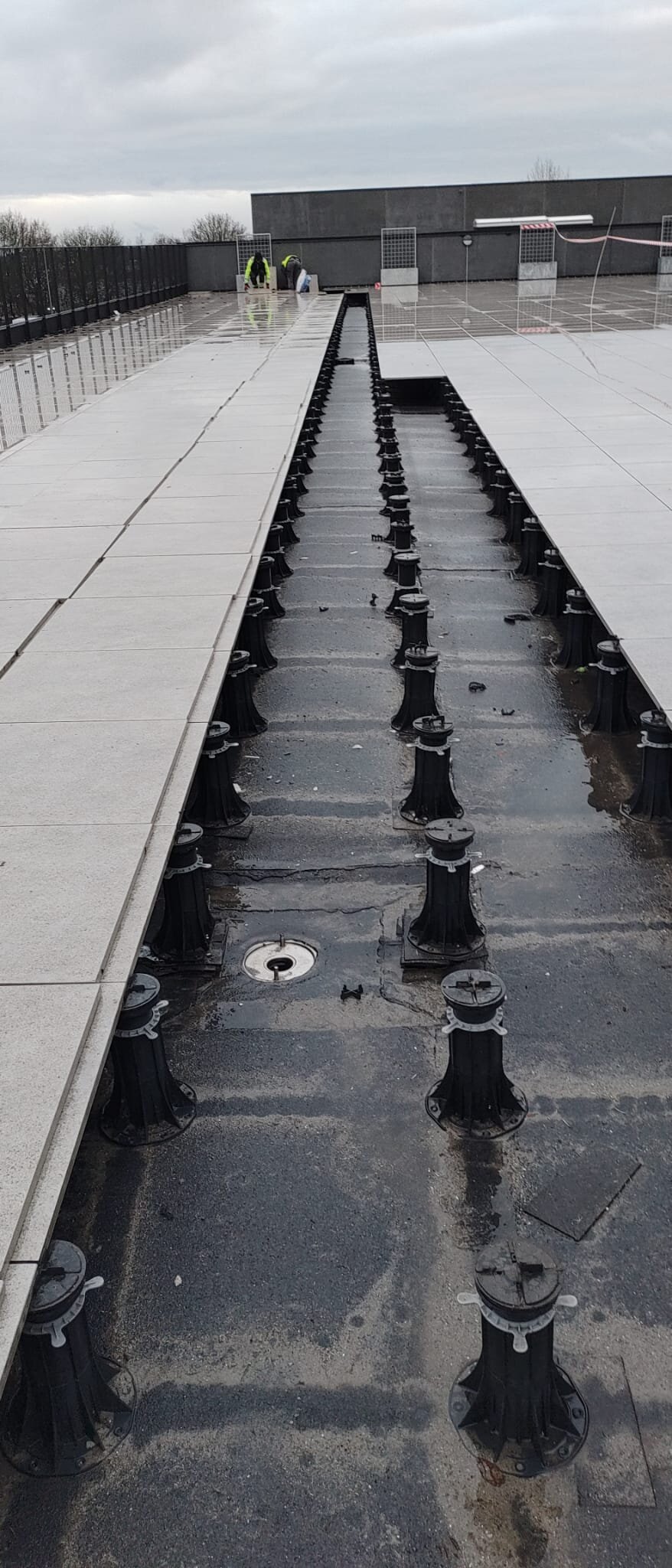

Raised deck terraces are completely demountable in a simple way, and it is also possible to inspect a single element. Very small contaminants, such as sand, penetrate under the terrace, which are usually flushed out by water. If the terrace is located next to trees or shrubs that shed pollen, the underside of the terrace can be rinsed with water or blown out with compressed air. Below is a photo of a terrace that was inspected after approximately 5 years from installation. The components of biological origin visible under the terrace undergo complete decomposition and are flushed out with water.
First of all, you should familiarize yourself with the paver manufacturer's recommendations regarding laying them on terrace pedestals. Installation that is not in accordance with the manufacturer's instructions may result in loss of warranty. We are not aware of any clear-cut research or scientific studies confirming the validity of adding a fifth pedestal in the middle, under the paver, as additional protection against paver cracking. Based on our analyses and experience, adding a pedestal should be considered on a case-by-case basis, depending on the type of paver, the substrate under the terrace, and the intended use of the terrace. Recommendations may vary; it is important to consider a few issues before making a decision: The issue of paver strength and the material it is made of Pavers made of various materials are used for laying on pedestals, such as ceramic, stone, and concrete (pressed, vibrated, reinforced). Each of these materials has different properties, and manufacturers use different production technologies. For laying pavers on pedestals, we recommend using only the highest quality pavers from reputable manufacturers who anticipate point support. The issue of substrate hardness Raised deck terraces on pedestals can be laid on various types of substrate. These can be hard substrates, such as concrete screed, concrete slabs, etc., as well as soft substrates, such as XPS insulation boards, PIR roof boards, etc. It should be remembered that the proper substrate hardness, recommended at 300 kPa/m², and the minimum permissible at 200 kPa/m², affects whether the terrace will flex during use. An additional pedestal can help distribute the terrace load over a larger area. The issue of terrace load When determining the number of pedestals needed under a terrace paver, the anticipated terrace loads should be analyzed, and the total load per square meter of the terrace should be calculated. Based on the calculations performed, it can be determined whether the use of an additional pedestal in the middle of the terrace paver is recommended. See question 9 - What is the load capacity of the pedestals? If an additional pedestal is used in the middle, under the terrace paver, we recommend using pedestals with a self-leveling head to ensure perfect support of the paver with the entire surface of the pedestal's top cap. More information can be found in the article - See also: 5 rules to ensure terrace pavers on pedestals won't crack.

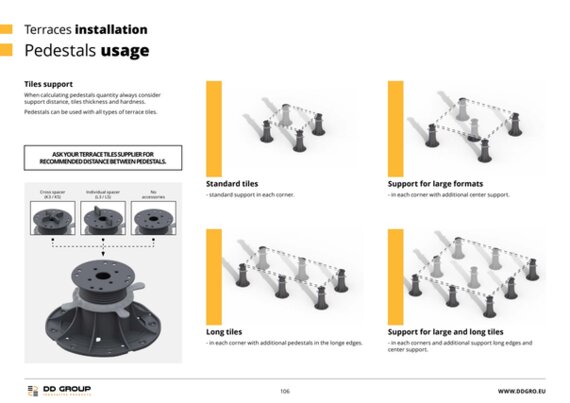

Recommendations regarding the spacing and installation possibilities of pavers on adjustable pedestals should be included in the installation instructions provided by the manufacturer. Installation that is not in accordance with the recommendations may result in loss of warranty. In practice, there are no specific limitations regarding the size of the paver, but limitations related to installation and transport should be taken into account. It is important to know the required support density for the specific material and the anticipated load. In most cases, it is sufficient to place the pedestals on a grid at a distance of approximately 60 cm. However, even in the case of pavers measuring 60 x 60 cm, it may be necessary to support not only the corners but also the center of the paver. In the case of larger pavers, such as 120 x 120 cm, the pedestals are placed at 60 cm intervals, i.e., at each corner, in the middle of all side edges, and under the paver. Increasing the density of the pedestal grid increases the load-bearing capacity of the system.
Most often, this depends on the thickness of the paver. In the case of ceramic pavers, this is usually a minimum of 2 cm, but it is always worth following the manufacturer's recommendation. As pedestal manufacturers, we recommend support at 4 points for 2 cm ceramic pavers and 5 cm concrete pavers. However, the number of support points depends on the paver manufacturer and the quality of the concrete. In the case of stone pavers, the number of support points depends on the type of material and the size of the paver, so you should always consult the manufacturer for appropriate guidelines regarding installation with point support of terrace pavers. More information can be found in the article- See also: 5 rules to ensure terrace pavers on pedestals won't crack.

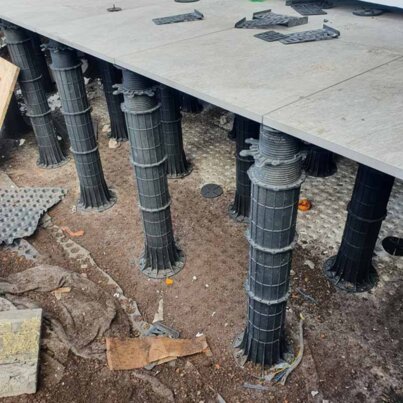

Standardly, the tallest pedestal we offer is the MAX model with a height range of 75-95 cm. It is equipped with three height couplers, but in special cases, one more coupler can be added to achieve a height range of 95-115 cm. See also: Max See also: Max

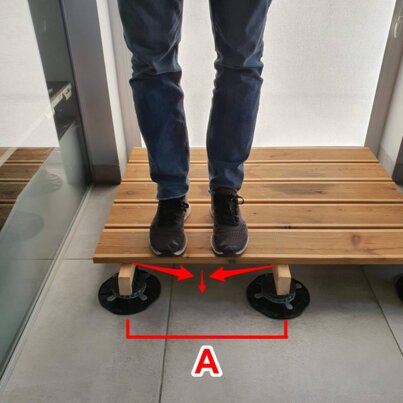

The type of joists should be in accordance with the recommendations of the deck board manufacturer. Installation that is not in accordance with the manufacturer's instructions may result in loss of warranty. Terrace pedestals have no restrictions regarding the material from which the terrace joists are made. The most important thing is that the entire terrace structure is sufficiently durable, stable, and does not sag excessively during use. The most commonly used materials from which joists laid on pedestals are made include: Terrace joists made of regional softwood, so-called softwood. This is a good material for installation on terrace pedestals, however, an appropriate joist size should be used so that it does not sag when walked on. It should also be remembered that wood may have a tendency to warp and over the years undergo rotting processes. Terrace joists made of exotic hardwood, so-called hardwood. This is a very good material for installation on terrace pedestals, however, an appropriate joist size should be used so that it does not sag when walked on. It should also be remembered that wood may have a tendency to warp. Unlike joists made of softwood, such joists essentially do not undergo rotting processes, or the process is very long and lasts many years. Terrace joists made of WPC composite (Wood plastic composite). Using joists made of WPC composite on terrace pedestals carries numerous risks. This is a material that changes its flexibility depending on temperature and on warm days may become too flexible and cause sagging. However, if we decide to install on composite joists, one should choose the highest quality product and make sure that the manufacturer maintains the warranty for installation on terrace pedestals. Aluminum terrace joists. Aluminum joists are the best type of joists that we can choose for the installation of a raised deck terrace on pedestals. This type of joist for deck boards retains its dimensions, does not become plastic under the influence of high temperature, and remains rigid.

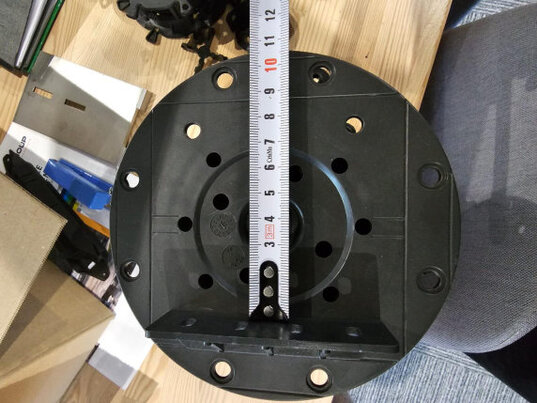

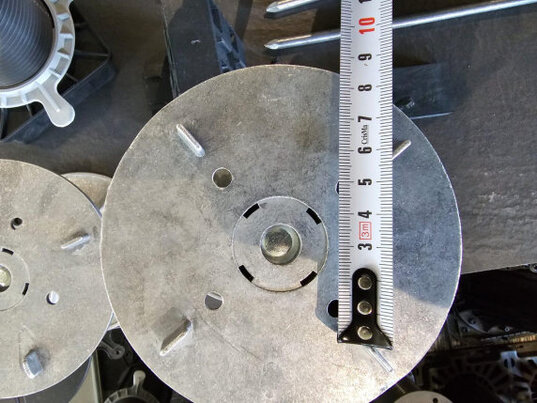

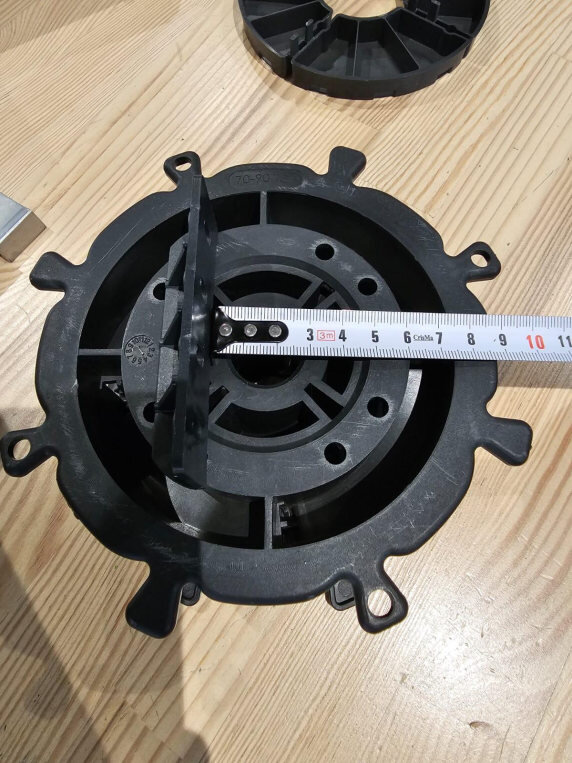

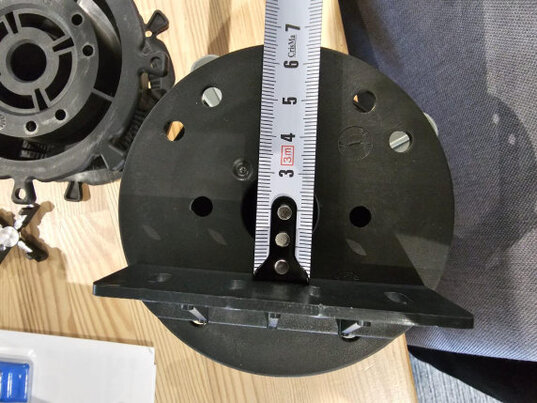

For the SPIRAL series, the maximum joist width is 8 cm; for the STANDARD series, it is 6 cm; for the MAX series, 10 cm; and for ALU, 5 cm. For the RAPTOR series, the maximum joist width that can be mounted on the pedestal is 6 cm. As for the strength parameters, they were measured on an aluminum joist with a width of 3 cm.

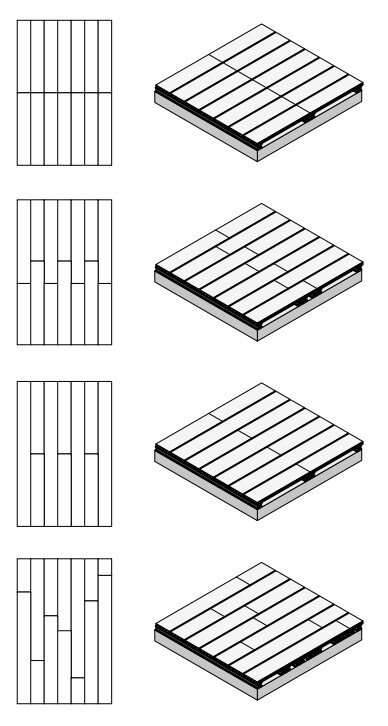

Yes, if the supplier of the installed raised deck terrace system allows point support of the terrace with adjustable pedestals in their installation instructions. In the context of pedestals, the layout of the boards does not matter, because the pedestals only support the joists. Please note that a terrace pattern with a variable board layout requires a greater number of joists, and consequently, also a greater number of pedestals.
The spacing of pedestals under terrace joists should be in accordance with the recommendations of the manufacturer of the installed terrace system. Installation not in accordance with the manufacturer's instructions may result in loss of warranty. Generally speaking, the spacing of pedestals depends on the material from which the joist is made, as well as its rigidity. Standardly, joists are placed at a distance of about 50 cm, and then often the pedestals are set at the same distance along the joists (which then gives 5-6 pedestals per square meter). The final spacing of pedestals, however, depends on the purpose of the upper surface and the loads to which it will be subjected. In the absence of instructions from the terrace joist supplier to determine the appropriate spacing of pedestals under the joists, it is best to perform a test consisting of setting the pedestals at a distance at which no deflection occurs when loaded with the weight of an adult person. Ask your joist supplier about the recommended spacing of terrace pedestals. Detailed information on the number of terrace pedestals per square meter of a raised deck terrace can be found in this article
To build in accordance with regulations, construction products with proper documentation must be used. Proper documentation, in accordance with the Construction Products Act and other regulations, is the National Declaration of Performance issued by the entity introducing the product to the market. Such a declaration is issued based on a construction standard appropriate for the given application, and in its absence, based on a National Technical Assessment, which may be issued by the relevant Technical Assessment Body. In the case of pedestals, there is no appropriate standard. There is a standard for raised access floors, but it applies only to interior installations. The Technical Assessment Body competent for pedestals is the Building Research Institute (ITB). According to the law, it is the ITB that makes the final assessment of whether a given product qualifies as a construction product or not. A National Technical Assessment has been issued for DD Pedestals pedestals. Based on the National Technical Assessment, National Declarations of Performance are issued. Such a declaration based on a National Technical Assessment is the only correct document confirming that a product may be used in residential construction.
According to the position of the Building Research Institute, terrace pedestals are considered a construction product, and therefore their use requires compliance with construction product regulations.
As a manufacturer, we provide a free warranty on products covering manufacturing defects for a period of 2 years. In B2B sales for the residential sector, the warranty is 6 years. In B2B, a longer warranty may be granted, which may be associated with an increased price. It should be emphasized that the warranty does not equal the product's lifespan; the lifespan for polypropylene can be up to over 50 years. Detailed information regarding warranty terms is contained in the warranty card. In Poland, the warranty on construction products is regulated by construction law and the Civil Code. According to these regulations, the minimum warranty period for construction products is at least 2 years from the date of acceptance of construction works or delivery of products.
When laying a raised deck terrace on support pads for pavers of a fixed height, the lowest pad height we offer is 2 mm -See also: Paver supports. When laying a raised deck terrace on adjustable pedestals, the lowest pedestal with adjustment is the SPIRAL pedestal, whose height starts at 10 mm and has a range from 10 to 17 mm. Adjustable SPIRAL pedestals for terrace pavers Adjustable SPIRAL pedestal for terrace joists
See also: What is the minimum height of a raised deck terrace on pedestals?
Each series of pedestals has a different load capacity. The values given below refer to the maximum force at which the strength properties of the pedestals are reduced. A safety factor must be applied, which for most design purposes is typically FS:2 (Factor of Safety 2). This means that the maximum load capacity of the pedestal should be divided by
Yes, our products have an Environmental Product Declaration EPD, which is available for download via this link: https://api.environdec.com/api/v1/EPDLibrary/Files/172fec7d-fc73-4873-1aa5-08dc8a1e81c8/Data

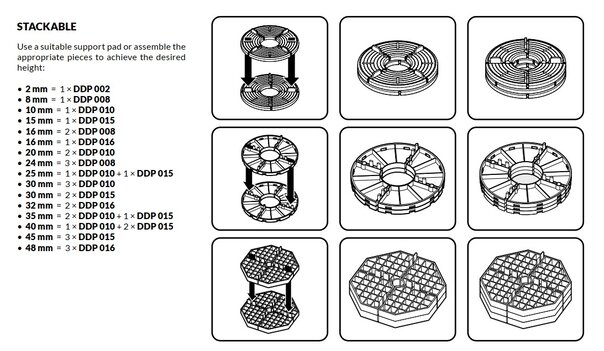

See also: Paver supports can be stacked to increase their height range. We recommend stacking a maximum of 3 pedestals. Uneven ground or slopes may affect the stacking capabilities of the support pads for terrace pavers. Check the stability of the pedestals before starting to lay the terrace pavers.
The self-leveling head is a separate component that can be used as an addition to pedestals from the Spiral, See also: Standard and See also: Max series. We use it when we want the pavers on our terrace to lie horizontally while the substrate beneath the pedestals has slopes. It helps correct the slope of the substrate from 0 to 8% (depending on the pedestal series). Our experience indicates that in the case of a slope on the substrate beneath the terrace of less than 2%, using the self-leveling head is not necessary. To level such a slight slope, an SH rubber shim is usually sufficient. We therefore recommend using the head when the slope of the surface exceeds 2%. Because it is a separate component, the customer can freely decide whether such an addition is needed or not, without having to overpay.

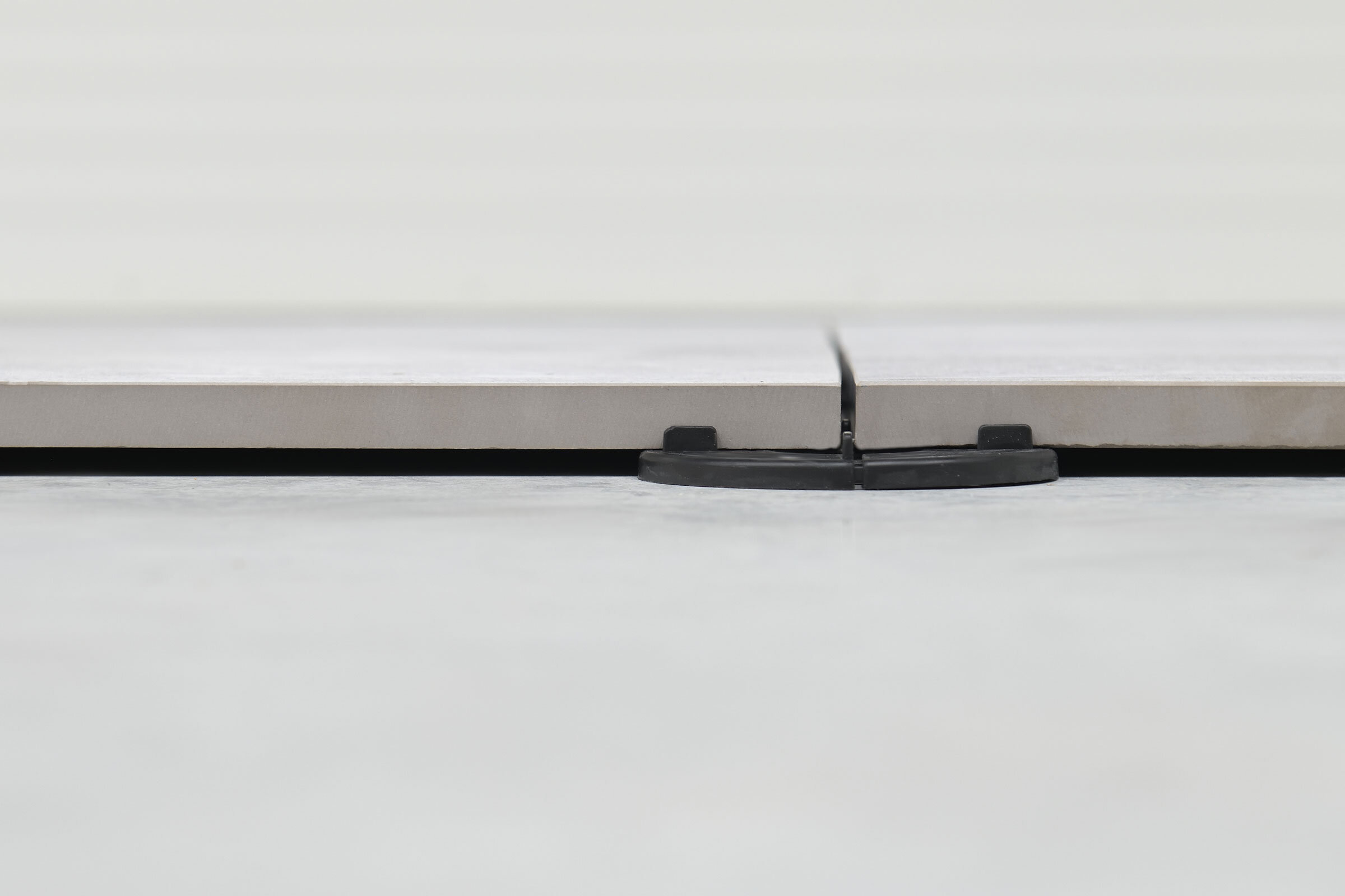

This is not required, we leave it to the decision of the terrace installer. However, we recommend using these pads, as they allow for leveling out minor unevenness in the pavers, positively affect acoustics (no so-called resonance box is created), and prevent unwanted sounds that may occur during use as a result of sand particles getting between the paver and the pedestal.
Our pedestals have been designed to make adjustment as easy as possible. This process is carried out using a nut that rotates independently of the base, and the thread shape ensures stability without the need for readjustment. Top adjustment keys are only used in the case of a different pedestal design, for example when the screw is threaded into the base or when the pedestals have built-in self-leveling heads. In our products, top adjustment with a key is only possible in the case of See also: Max when a slight height correction is needed. Initially, our pedestals were produced for our own projects, which is why we chose the most optimal design from the perspective of large-scale projects, where optimizing every installation step is key. The fastest way to achieve the correct pedestal height after removing it from the packaging is to use our screwdriver attachment, which quickly and efficiently adjusts the pedestal height.

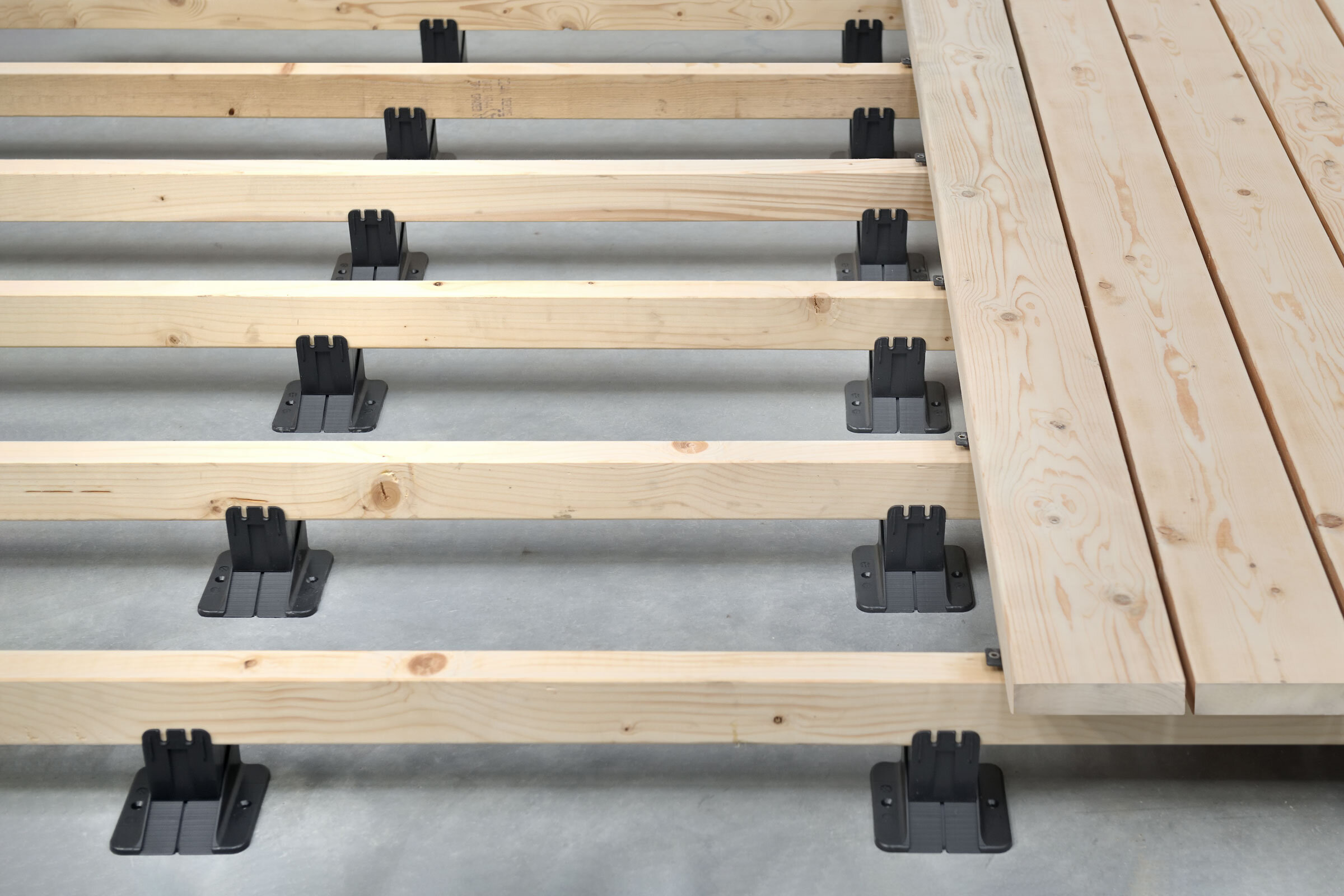

Adjustable height pedestals from the RAPTOR series are based on the so-called wedge (step) technology, consisting of a lower and upper wedge. Height adjustment is achieved by sliding the upper wedge relative to the lower one along the teeth (so-called steps). Once the desired height is achieved, RAPTOR pedestals loaded with the weight of the terrace have no possibility of changing their height either up or down. A change in height could only occur as a result of significant vibrations that could shift the terrace structure, or in the case where the terrace had stresses causing part of it to lift upward. Unlike other solutions for leveling terraces using wedge pedestals, our RAPTOR series pedestals feature special holes into which a screw can be driven to permanently connect the lower and upper wedges. We recommend connecting the wedges with screws if the phenomena described above may occur, as well as additionally in non-standard locations and in rows of pedestals at the terrace edge. However, this is not required and should in each case be left to the decision of the terrace installer.

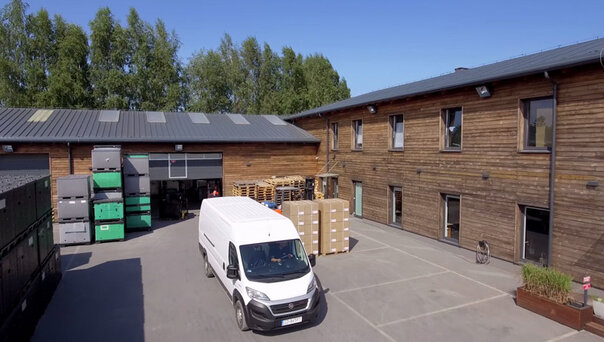

We are a manufacturer of the products we offer. Our production facility is located in Gdańsk. We have full control over the entire production process - from sourcing raw material of appropriate quality, through production, assembly, packaging, quality control, all the way to shipment to the customer. Unlike competitors who do not have full control over the quality of their products because they outsource production &34;externally&34;, often using production facilities located in countries that do not meet any standards - neither quality, environmental, nor labor law standards. Our products are covered by test reports from an independent laboratory the Building Research Institute ITB, and the measuring instruments used in our in-house quality control laboratory are accredited, and the correctness of their operation is confirmed by the Central Office of Measures.
