Raptor

Terrace pedestal for joists with wedge height adjustment.

15-120 mm

terrace joist

RAPTOR features

Raptor 1

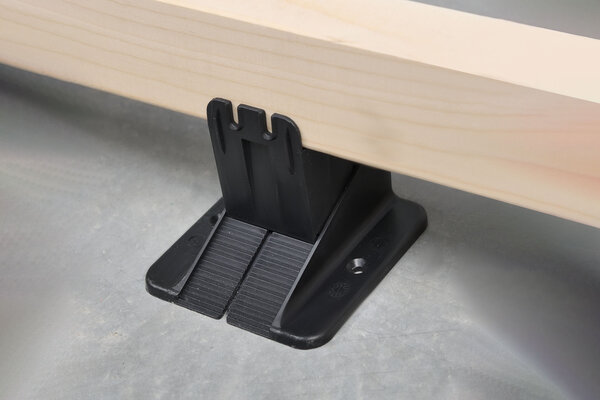

Step-by-step height adjustment in 1 mm increments

Raptor 2

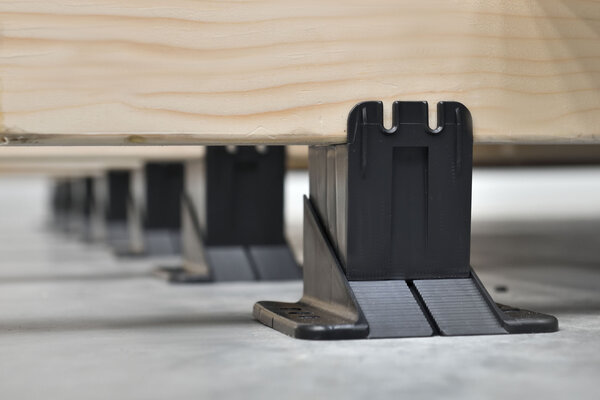

Wedge-shaped design for high load resistance

Raptor 3

Adapted to various joist sizes

Raptor 4

Height range from 15 to 245 mm

Packshots rap s 15 35 view 4

RAP-S-15-35-(100) RAPTOR S pedestal 15–35 mm for decking

Packshots rap km view 4

RAP-KM-(100) Top wedge M RAPTOR

Packshots rap m 35 65 view 4

RAP-M-35-65-(100) RAPTOR M pedestal 35-65 mm for decking

Packshots rap kl view 4

RAP-KL-(100) Top wedge L RAPTOR

Packshots rap l 65 95 view 4

RAP-L-65-95-(100) RAPTOR L pedestal 65-95 mm for decking

Packshots rap kxl view 4

RAP-KXL-(100) Top wedge XL RAPTOR

Packshots rap xl 095 125 view 4

RAP-XL-95-125-(55) RAPTOR XL pedestal 95-125 mm for decking

Packshots rap pl view 4

RAP-PL-(100) Bottom wedge L RAPTOR

Packshots rap p30 view 4

RAP-P30-(100) Height extender RAPTOR h=30 mm

Packshots rap po view 4

RAP-PO-(100) Protection pad RAPTOR h=2 mm

Packshots rap pa view 4

RAP-PA-(50) Acoustic pad RAPTOR h=10 mm

Inclination corrector for RAPTOR pedestals leveling slopes up to 7%

RAP-KN-(50) Base slope corrector RAPTOR 7%

RAPTOR pedestals

Packshots rap po view 4

RAP-PO-(100) Protection pad RAPTOR h=2 mm

Packshots rap p30 view 4

RAP-P30-(100) Height extender RAPTOR h=30 mm

Inclination corrector for RAPTOR pedestals leveling slopes up to 7%

RAP-KN-(50) Base slope corrector RAPTOR 7%

Packshots rap pa view 4

RAP-PA-(50) Acoustic pad RAPTOR h=10 mm

Packshots adec adj25x45x4000 view 4

ADEC-ADJ25X45X2000-(1) AluDeck 25×45×2000

Packshots adec adj40x45x4000 view 4

ADEC-ADJ40X45X2000-(1) AluDeck 40×45×2000

Packshots akcw sbr170x170x3 view 4

AKCW-SBR170X170X3-(100) Rubber pad SBR 170x170x3 mm

RAPTOR accessories

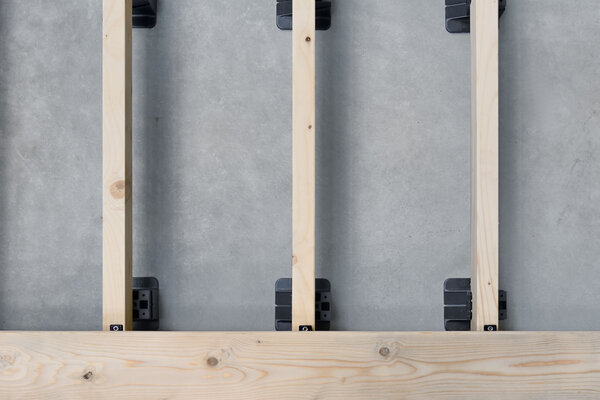

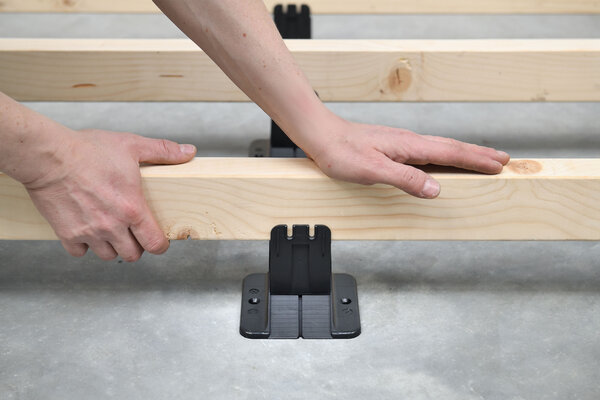

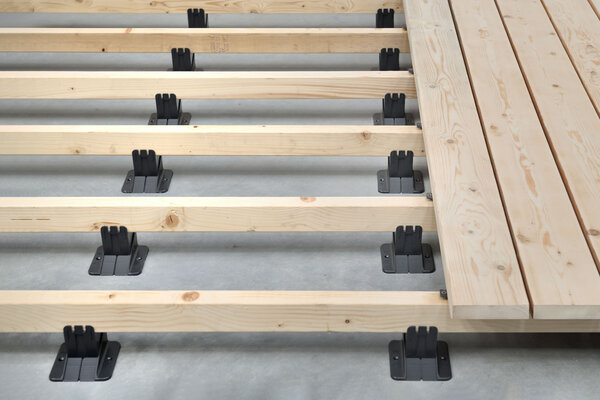

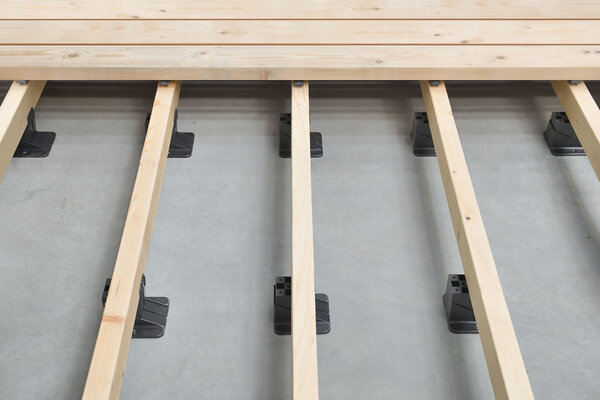

Terrace pedestals RAPTOR are designed for lifting and leveling terraces on joists.

The height is adjusted by moving the wedge every 1 mm. The universal head fits any type of joist.

The possibility of using dedicated accessories and leveling substrate slopes up to 7%.

EN Brochure RAPTOR

EN Short manual RAPTOR

EN Manual RAPTOR SOLVER

Raptor

See project implementations using pedestals with a unique structure that support joists:
