| Short name |
|
RAP-P30-(100)
|
| Full name |
|

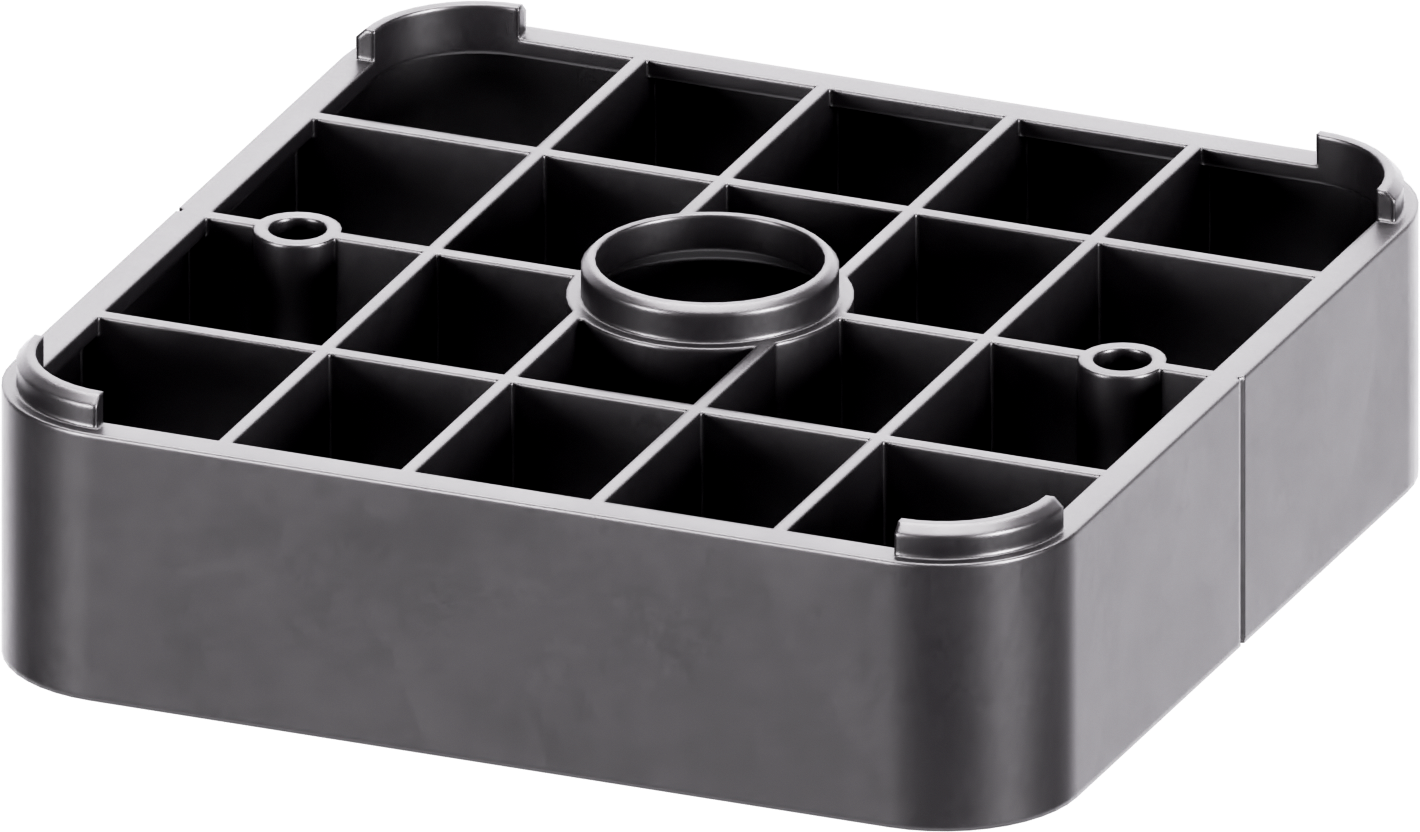

Height extender for RAPTOR - height 30 mm
|
| Product group |
|
Raptor
|
| Code |
|
106.090111
|
| EAN |
|
5904276342787
|
| Application |
|
• terrace joist
|
| Minimum height [mm] |
|
30 mm
|
| Minimum height [inch] |
|
1 3/16 inch
|
| Maximum height [mm] |
|
30 mm
|
| Maximum height [inch] |
|
1 3/16 inch
|
| Load resistance up to |
|
1000 kg
|
| Load resistance up to [lbs] |
|
2204.62 lbs
|
| Load resistance up to [kN] |
|
10 kN
|
| What finishing materials can be used |
|
• hardwood joist
• softwood joist • aluminium joist • WPC joist |
| Special Feature |
|
• Slope leveling
• Sound insulation • Inspection access • Very low height • Vertical edge |
| characteristic_attributes |
|
Characteristics of the accessory:
|
|
|
|
| Total dimension - length |
|
120 mm
|
| Total product dimension length (inch) |
|
4 3/4 inch
|
| Total dimension - width |
|
120 mm
|
| Total product dimension width (inch) |
|
4 3/4 inch
|
| Head area |
|
(144 cm2)
|
| Head area [inch²] |
|
22.32 inch² inch2
|
| Head diameter (upper plate) |
|
Ø 157 mm
|
| Head diameter (top plate) [inch] |
|
6 1/8 inch
|
| Base diameter |
|
Ø 157 mm
|
| Base diameter [inch] |
|
6 1/8 inch
|
| Weight |
|
~0.08 kg
|
| lbs |
|
0.1764 lbs
|
| Fire resistance |
|
E
|
| Minimum temperature [°C] |
|
od -20°C
|
| Minimalna temperatura [stopnie F] |
|
-4 F
|
| Maximum temperature [°C] |
|
do 65 °C
|
| Maksymalna temperatura [stopnie F] |
|
149 F
|
| Color |
|
black
|
| Mandatory warranty |
|
Limited 10-year residential and commercial warranty
|
| Country of origin |
|
Poland
|
| Material name |
|
PP
|
| Percentage of recycled material |
|
100 %
|
| Type of waste |
|
• non-hazardous waste - recyclable
|
| Project type |
|
• interior use
• exterior use |
| Consists of |
|
Distance pad RAPTOR
|
