| Short name |
|
RAP-L-65-95-(100)
|
| Full name |
|

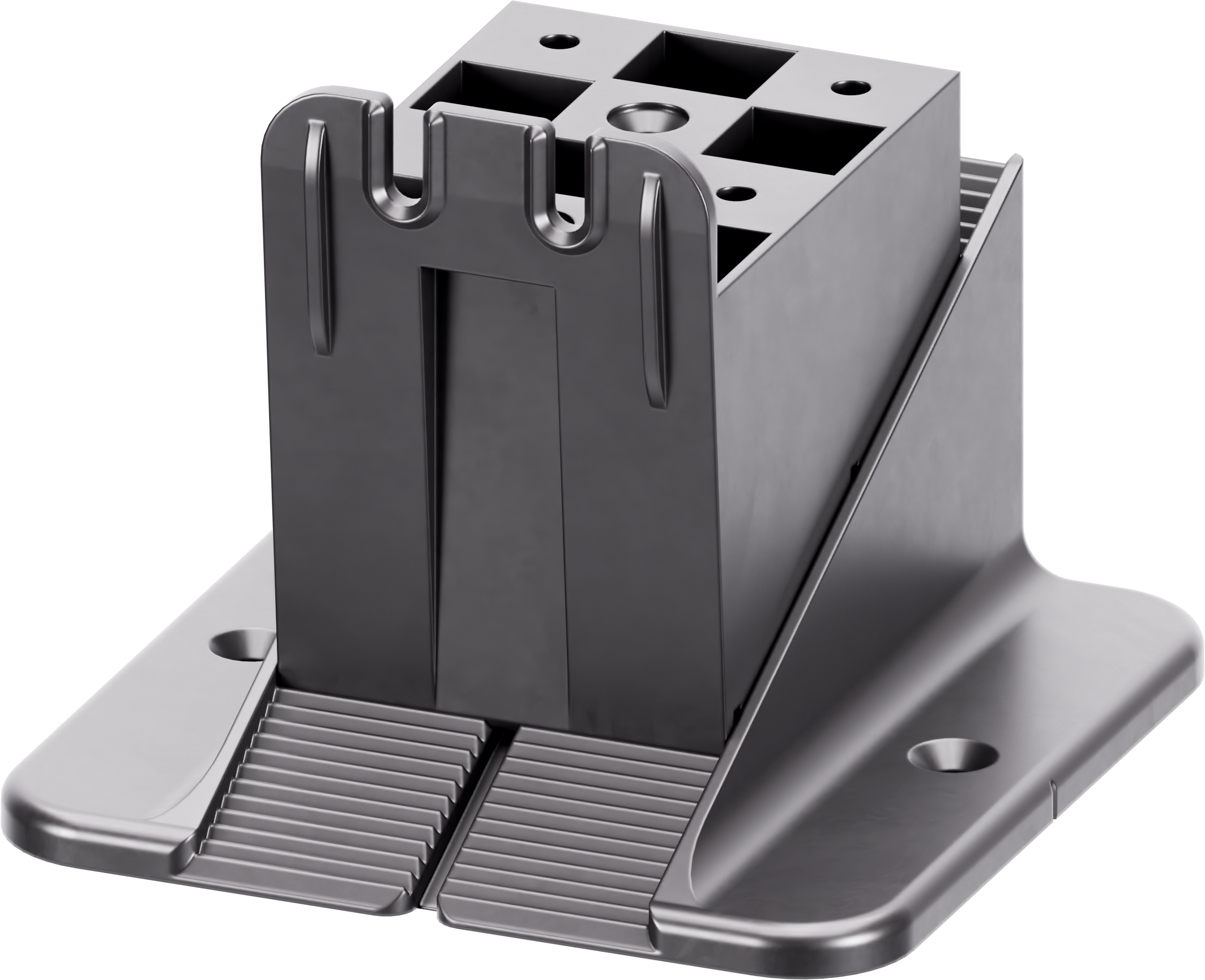

Wedge decking pedestal RAPTOR L 65-95 mm for outdoor raised flooring
|
| Product group |
|
Raptor
|
| Code |
|
106.050111
|
| EAN |
|
5904276342718
|
| Application |
|
• terrace joist
|
| Minimum height [mm] |
|
65 mm
|
| Minimum height [inch] |
|
2 9/16 inch
|
| Maximum height [mm] |
|
95 mm
|
| Maximum height [inch] |
|
3 3/4 inch
|
| Load resistance up to |
|
1000 kg
|
| Load resistance up to [lbs] |
|
2204.62 lbs
|
| Load resistance up to [kN] |
|
10 kN
|
| What finishing materials can be used |
|
• hardwood joist
• softwood joist • aluminium joist • WPC joist |
| Special Feature |
|
• Slope leveling
• Sound insulation • Inspection access • Very low height • Vertical edge |
| characteristic_attributes |
|
Product features:
|
|
|
|
| Regulation type |
|
stepped
|
| Total dimension - length |
|
120 mm
|
| Total product dimension length (inch) |
|
4 3/4 inch
|
| Total dimension - width |
|
130 mm
|
| Total product dimension width (inch) |
|
5 1/8 inch
|
| Head area |
|
(46 cm2)
|
| Head area [inch²] |
|
7.13 inch² inch2
|
| Head diameter (upper plate) |
|
Ø 0 mm
|
| Base diameter |
|
Ø 156 mm
|
| Base diameter [inch] |
|
6 1/8 inch
|
| Weight |
|
~0.16 kg
|
| lbs |
|
0.3527 lbs
|
| Fire resistance |
|
E
|
| Minimum temperature [°C] |
|
od -20°C
|
| Minimalna temperatura [stopnie F] |
|
-4 F
|
| Maximum temperature [°C] |
|
do 65 °C
|
| Maksymalna temperatura [stopnie F] |
|
149 F
|
| Color |
|
black
|
| Mandatory warranty |
|
Limited 10-year residential and commercial warranty
|
| Country of origin |
|
Poland
|
| Material name |
|
PP
|
| Percentage of recycled material |
|
100 %
|
| Type of waste |
|
• non-hazardous waste - recyclable
|
| Project type |
|
• interior use
• exterior use |
| Consists of |
|
Top wedge L for RAPTOR pedestal, Bottom wedge L for RAPTOR pedestal
|
