| Short name |
|
AKCW-RPL-(60)
|
| Full name |
|

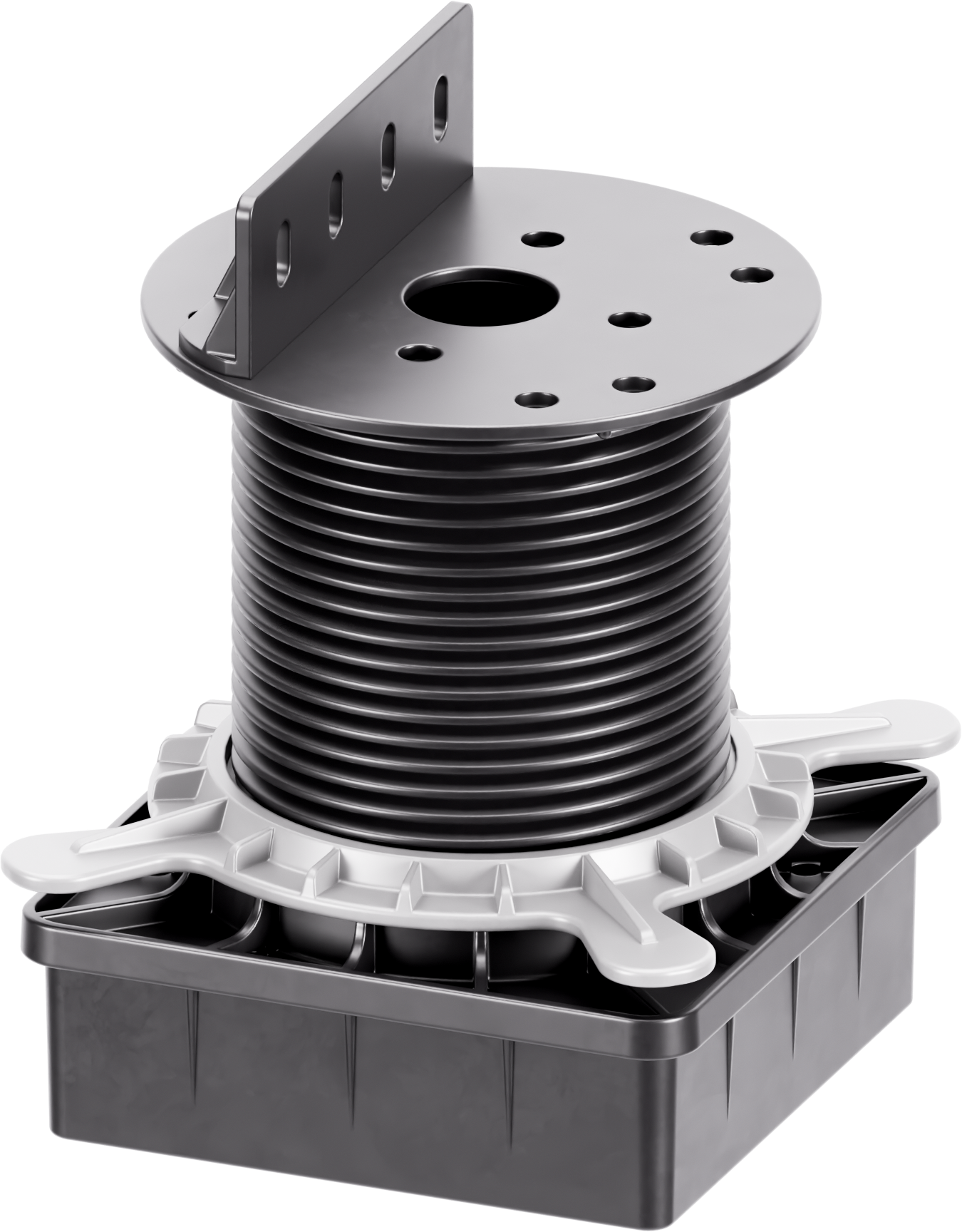

Adjustable deck joist support for anchor foundation with height adjustment 100 mm
|
| Product group |
|
Accessories
|
| Code |
|
110.084011
|
| EAN |
|
5904276345542
|
| Application |
|
• terrace tiles
• terrace pedestals |
| Minimum height [mm] |
|
25 mm
|
| Minimum height [inch] |
|
15/16 inch
|
| Maximum height [mm] |
|
100 mm
|
| Maximum height [inch] |
|
3 15/16 inch
|
| Load resistance up to |
|
0 kg
|
| Load resistance up to [lbs] |
|
0 lbs
|
| What finishing materials can be used |
|
• hardwood joist
• softwood joist • aluminium joist • WPC joist |
| characteristic_attributes |
|
Product features:
|
|
|
|
| Total dimension - length |
|
151 mm
|
| Total product dimension length (inch) |
|
5 15/16 inch
|
| Total dimension - width |
|
151 mm
|
| Total product dimension width (inch) |
|
5 15/16 inch
|
| Head area |
|
(0 cm2)
|
| Head area [inch²] |
|
0 inch² inch2
|
| Head diameter (upper plate) |
|
Ø 0 mm
|
| Base diameter |
|
Ø 0 mm
|
| Weight |
|
~0.25 kg
|
| lbs |
|
0.5512 lbs
|
| Fire resistance |
|
E
|
| Minimum temperature [°C] |
|
od -20°C
|
| Minimalna temperatura [stopnie F] |
|
-4 F
|
| Maximum temperature [°C] |
|
do 65 °C
|
| Maksymalna temperatura [stopnie F] |
|
149 F
|
| Color |
|
black, grey
|
| Mandatory warranty |
|
Limited 10-year residential and commercial warranty
|
| Country of origin |
|
Poland
|
| Material name |
|
PP
|
| Percentage of recycled material |
|
60.08 %
|
| Type of waste |
|
• non-hazardous waste - recyclable
|
| Project type |
|
• exterior use
|
| Consists of |
|
Adapter for metal driven foundation , Adapter for joists , STANDARD 4 Screw , STANDARD Nut
|
