Adjustable terrace pedestals - application, construction and selection rules

Despite their relatively simple construction, pedestals are an extremely practical element that greatly facilitates terrace installation. However, how do you choose the right one that meets the project requirements?

What are adjustable terrace pedestals?

Adjustable terrace pedestals are the basic structural element of a raised deck terrace system, most often made of polypropylene (PP). Also called support pads or terrace supports. They enable precise leveling of the surface without the use of mortars, adhesives, or permanent bonding to the substrate; they are used for:

  • adjusting the height of the terrace,
  • compensating for substrate slopes,
  • point support of pavers or joists
  • protecting the waterproofing

It is thanks to them that it is possible to create:

  • a terrace without gluing
  • a terrace on uneven ground
  • modernization of an old surface without breaking it up
  • a perfectly level terrace
  • a terrace at a convenient usable height
  • a safe terrace for years

If you want to understand how the entire system works:

See also: What is a raised deck terrace

Standard series of adjustable pedestals for pavers and joists

Construction of an adjustable pedestal

A typical adjustable pedestal consists of:

  1. Base - responsible for stable load transfer to the substrate
  2. Screw (thread) - enables smooth height adjustment
  3. Head - with joint spacers (for pavers) or adapter (for joists).

As additional accessories for the pedestal, the following elements can be used:

  • self-leveling heads - compensating slopes up to 7%
  • SBR rubber pads (for additional protection of waterproofing and sound insulation
  • height couplers - to achieve greater pedestal height
  • slope correctors - under the pedestal, to compensate for 8% slopes

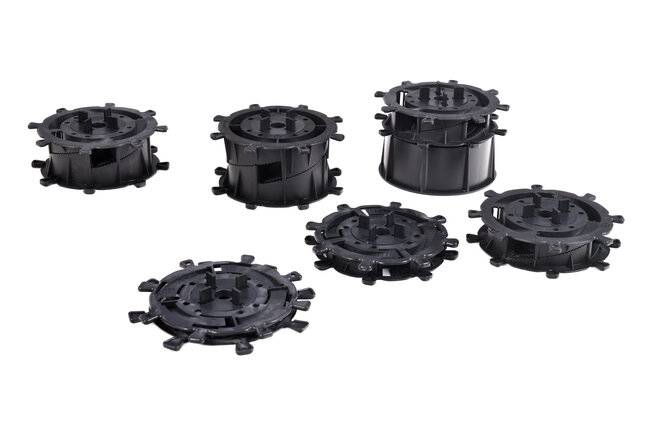

Standard series of adjustable pedestals for pavers and joists Series of adjustable spiral pedestals for pavers and joists

Height Adjustment Range

Each pedestal series has different height ranges, with the lowest pedestal starting at just 10 mm and the tallest reaching 950 mm.

SPIRAL pedestals - for pavers and joists - height range from 10 to 210 mm, their height is adjusted gradually, every 1 mm.

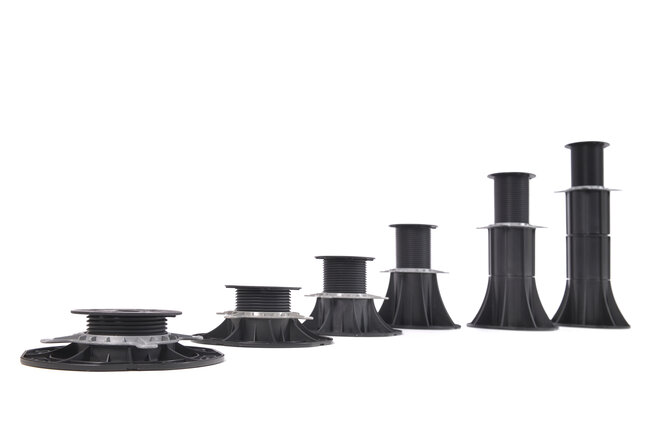

Series of adjustable pedestals for joists and pavers standard side by side

STANDARD pedestals - for pavers and joists - smooth height adjustment range from 30-420 mm

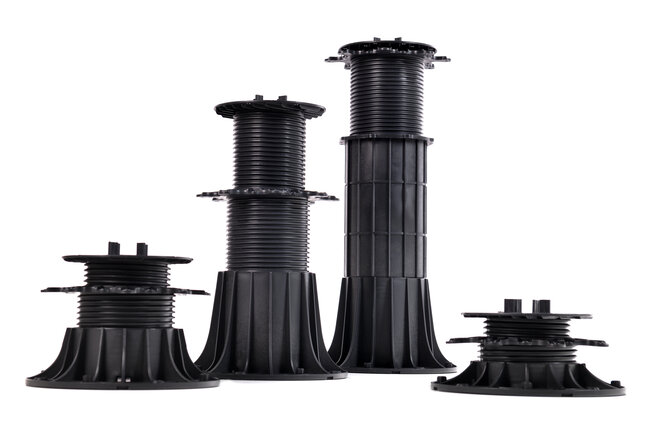

Set of MAX adjustable pedestals for pavers and joists

MAX Pedestals - for pavers and joists - smooth height adjustment range from 45-950 mm

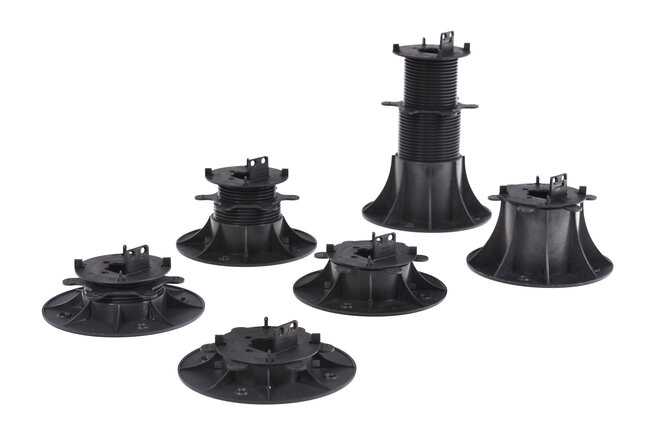

Series of clever level adjustable pedestals for terraces with pavers and joists

CLEVER-LEVEL pedestals - for pavers and joists - stepless height adjustment range from 25 to 200 mm

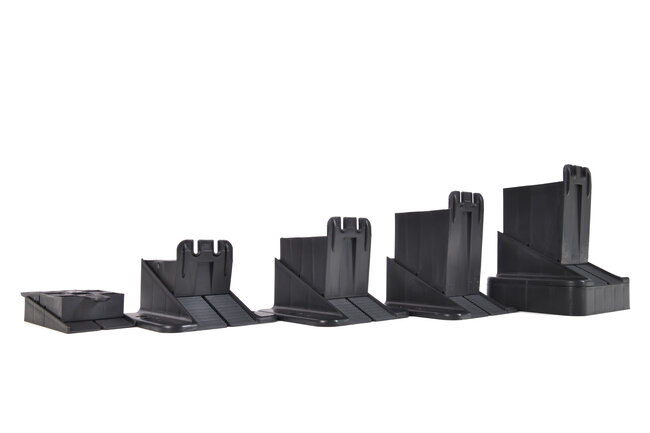

Adjustable terrace pedestals for joists with raptor boards

RAPTOR Pedestals - for joists - gradual height adjustment in 1 mm increments from 15 to 245 mm.

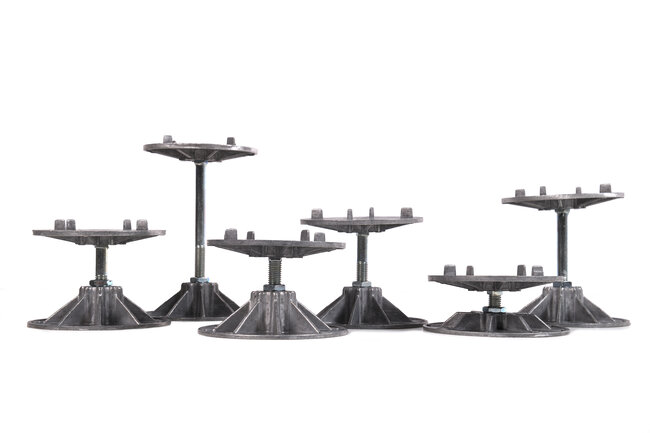

Adjustable metal ALU pedestals for terraces with pavers

ALU pedestals - for pavers - aluminum pedestals with smooth adjustment from 40 to 200 mm

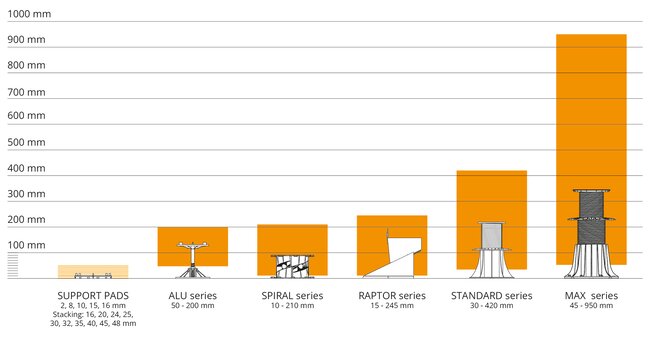

Comparison of the height range of the solver pedestal series

Height specification of pedestals:

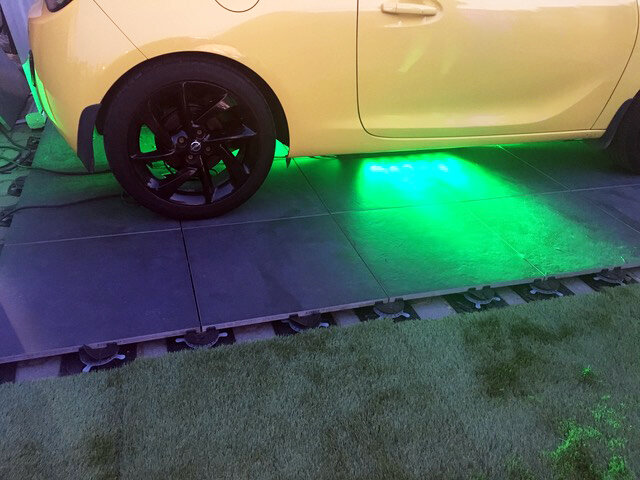

Temporary exhibition structure built on a raised deck terrace on pedestals

Application of Adjustable Pedestals

Adjustable pedestals are used under:

  • 2 cm porcelain pavers
  • concrete pavers
  • natural stone
  • aluminum joists
  • wooden joists
  • WPC joists
  • grates with artificial grass

The system is used in:

  • residential terraces,
  • balconies and loggias,
  • inverted roofs,
  • technical terraces,
  • developer projects
  • swimming pools
  • fountains
  • exhibition displays
  • temporary structures

Why are adjustable pedestals a system solution?

Adjustable pedestals enable:

✔ compensation of substrate slopes

✔ precise leveling of each paver individually

✔ installation without permanent connection to the building

✔ protection of the waterproofing layer

✔ service access throughout the entire service life

✔ installation of utilities under the terrace

Unlike bonded systems:

  • no mortars are used,
  • there is no risk of paver delamination,
  • no cracked grout joints occur,
  • replacement of a single element is possible.

Technology comparison:

See also: Elevated terrace vs traditional glued terrace

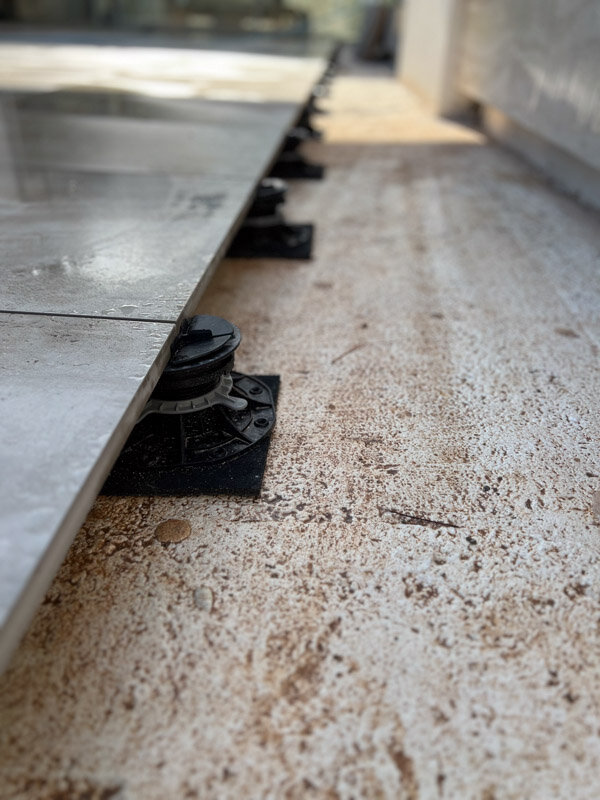

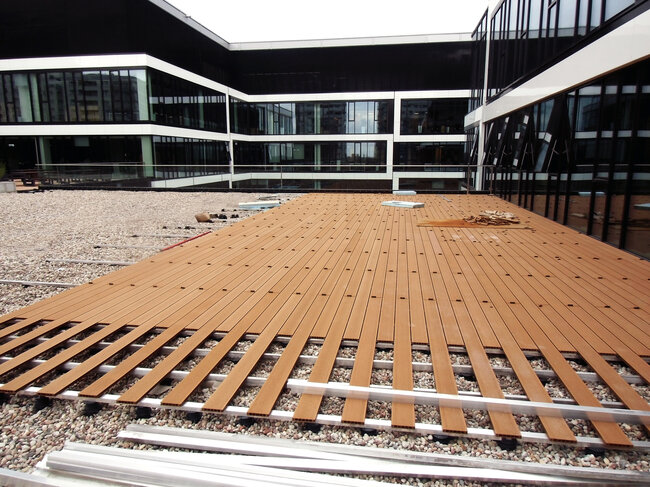

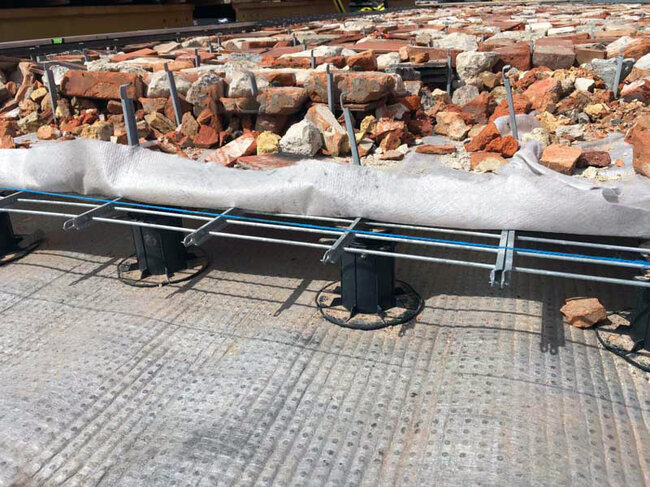

Terrace pedestals solver on individual museum construction Elevated terrace on a usable roof with aluminum joists and composite decking boards on solver pedestals Terrace with adjustable pedestals laid on SBR rubber pads on the terrace

Spacing and load capacity of pedestals

The selection of pedestals depends on the size of the paver, the manufacturer's recommendations, and additional planned loads on the terrace.

For example:

  • paver 60×60 cm - support at the corners (every 60 cm),
  • paver 90×90 cm - support every 45 cm with additional support in the center
  • point loads (planters, pergolas) - denser pedestal spacing

High-quality pedestals can bear loads of up to several tons each (depending on the model and installation conditions).

youtube video with pedestal load testing

Waterproofing protection

A raised deck terrace on pedestals is primarily about waterproofing protection; its full safeguarding allows the structure to be maintained in perfect condition.

The pedestals do not have sharp edges, so they will not damage the insulation, however, in the case of delicate materials, it is worth using additional SBR rubber pads, which also improve the acoustic comfort of the terrace.

Adjustable or fixed support pads?

In practice:

  • adjustable pedestals are used where height or slopes need to be leveled
  • fixed support pads work well on ground-level terraces or in places where an adjustable pedestal does not fit

Often both solutions are combined in one project, precisely because of the heights.

Most common mistakes when using adjustable pedestals

  1. Placing the pedestal on an unstable substrate.
  2. Too large spacing of supports.
  3. Lack of compaction under point loads.
  4. Lack of waterproofing protection.
  5. Not accounting for the height of the door threshold.

More about the mistakes:

See also: Most common mistakes during the installation of raised deck terraces

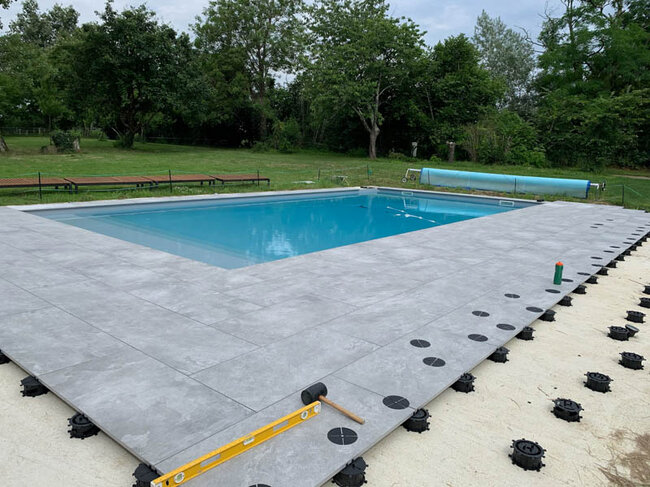

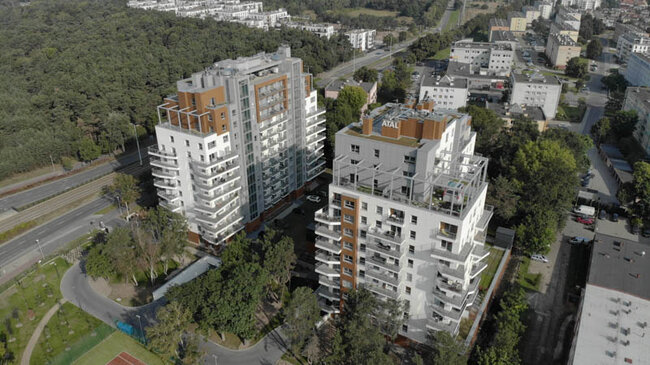

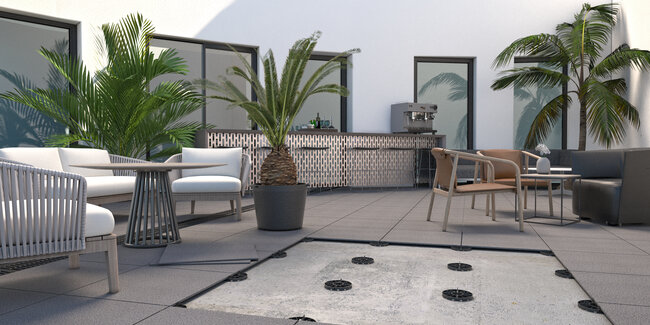

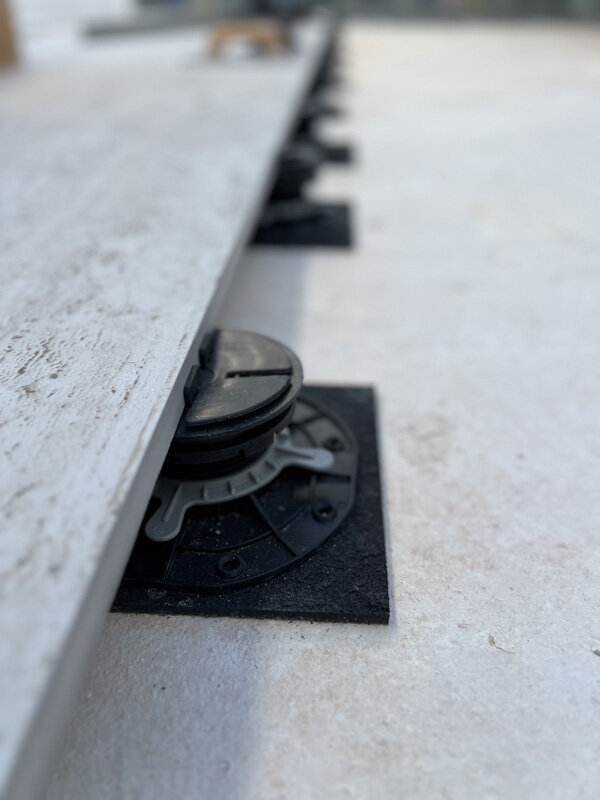

Terrace pedestal placed under the paver with an SBR rubber pad under the pedestal Terrace pavers on transparent support pads of fixed height laid on gravel Support pads for pavers in the terrace visualization Photo of a multi-family building investment using adjustable terrace pedestals with pavers, balcony view photo of a building investment with raised deck terraces on balconies on adjustable pedestals

Why investors choose adjustable pedestals?

On large projects, this system is chosen because of:

  • predictability of execution
  • ease of quality control
  • the ability to adjust during installation
  • no complaints related to joints and debonding
  • optimization of working time
  • modern and aesthetic appearance
  • reduced chance of defects

Summary

Adjustable terrace pedestals are a key element of a modern raised deck terrace system.

They allow for:

  • creating a terrace without gluing,
  • precise leveling,
  • protection of the waterproofing,
  • easy maintenance and replacement of components.

It is not the thickness of the paver, but the quality of the support system that determines the durability of the terrace.

If you want to go a step further:

See also: How does a raised deck terrace work
