Nothing spoils an elegant, high-end terrace made of stone slabs or porcelain tiles quite like visible PVC pipes, flexible garden hoses, or tangled extension cords. Fortunately, construction on a raised deck terrace system with adjustable pedestals offers a clever solution: a spacious sub-floor void that absorbs installations entirely, while each surface paver can be easily lifted when maintenance is required.
The "floating floor" advantage
Traditional terrace construction relies on pouring concrete slabs or embedding pavers in sand and mortar. Although durable, these methods permanently bury utilities in the ground. If a pipe leaks or a cable needs replacing, you are forced to break them up with a hammer.

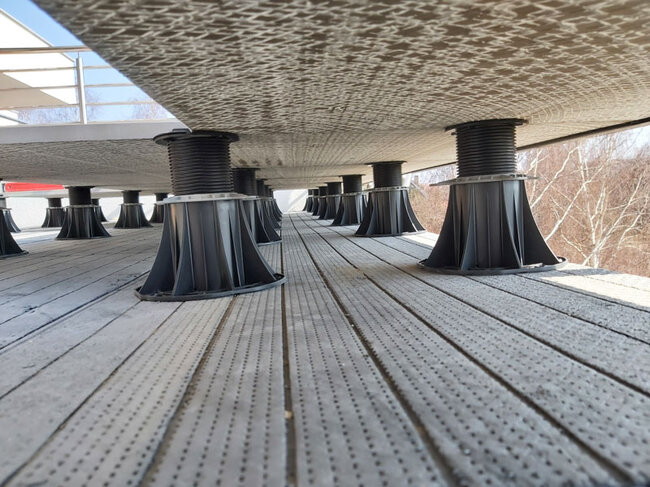

A raised deck terrace on pedestals works on a "floating" dry-install design. Heavy terrace pavers made of porcelain, concrete, or stone rest on raised terrace pedestals without grout or adhesive. Open joints between the pavers allow rainwater to drain directly onto the waterproofed substrate below, and the gap beneath the surface creates a clean, usable space.
This sub-floor void acts as a hidden utility channel throughout your outdoor living space.
5 practical tips for routing installations under pedestals
Although the space under a raised deck terrace seems like a blank canvas, haphazardly laying cables and pipes can cause problems in the future. Here's how to keep your installation tidy, safe, and accessible:
1. Plan and zone before installation
Before laying pedestals and terrace pavers, plan the installation routes. Keep electrical cables and plumbing separate to prevent accidental exposure to moisture or physical collisions during repairs.
- High-voltage lines: Always run main electrical wiring in continuous, waterproof rigid conduit, raised above the deck or securely fastened to adjacent walls.
- Plumbing and gas installation: Make sure main water supply lines and gas pipes run parallel to the pedestal rows so they do not press against the load-bearing heads.
2. Protect cables and pipes from abrasion

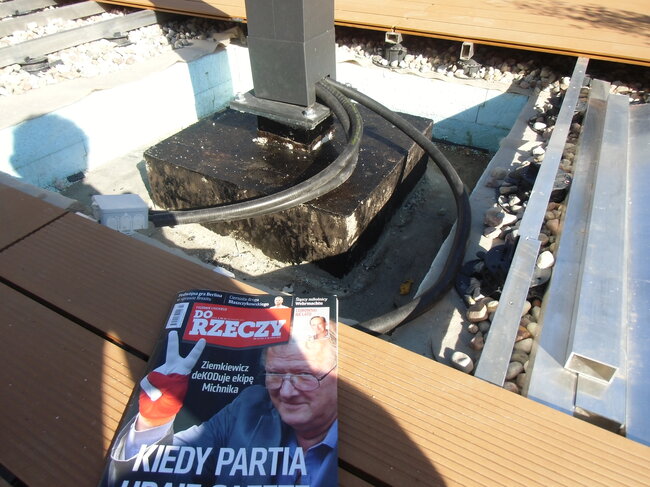

The environment under the terrace is subject to subtle movements, thermal expansion, and airflow. Never leave loose, unprotected cables lying directly on raw concrete or sharp edges.
- Protect low-voltage lighting, speaker, and sensor cables in flexible corrugated conduit.
- Secure the cables with durable UV-resistant cable ties or pipe clamps anchored directly to the substrate or wall edges, keeping runs tidy and out of the main water drainage paths.
3. Maintain the slope for drainage lines
While the pedestals allow for creating a perfectly flat, level terrace surface above, the underlying slab retains its natural slope toward the drains.

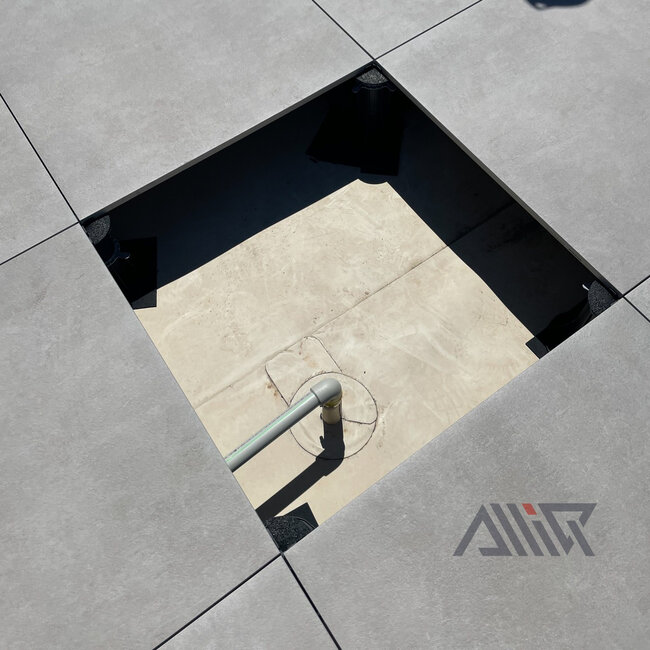

When routing sewer lines, condensate drains, or kitchen plumbing, make sure the pipes follow this natural slope. Avoid running pipes horizontally through high points of the slope, where the height clearance under the pedestal drops to a minimum.
4. Plan your designated access points
The biggest advantage of a pedestal system is access without the need for disassembly. However, pulling up a random 60-pound stone paver when something breaks is not the ideal solution.

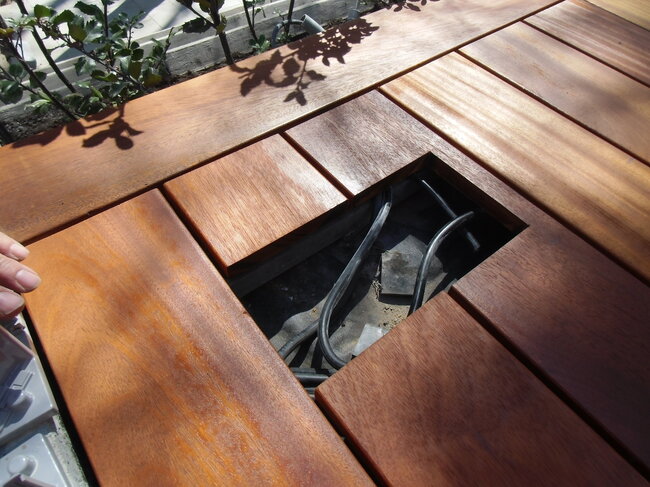

- Mark your electrical boxes: Always place electrical boxes, irrigation valves, inspection plugs, and shut-off valves under specific, easily removable pavers.
- Keep documentation: Take high-resolution photos of the substrate layout with a visible tape measure before laying the final pavers. A quick reference to a photo saves hours of guessing later.
How adjustable pedestals make a difference
Supporting heavy surfacing materials while leaving space for installations underneath requires a system designed with precision in mind. As a manufacturer of adjustable pedestal systems, we design our pedestals to simultaneously solve structural and spatial challenges.

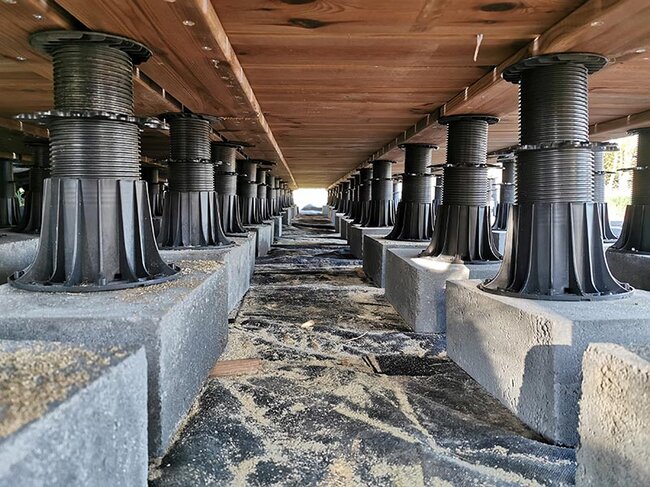

Because the terrace substrate is sloped to drain water, the distance between the slab and the level of the finished surface varies across the space. Adjustable pedestals use threaded adjustment mechanisms and slope correctors to maintain a perfectly level terrace surface above while adapting to different heights below.

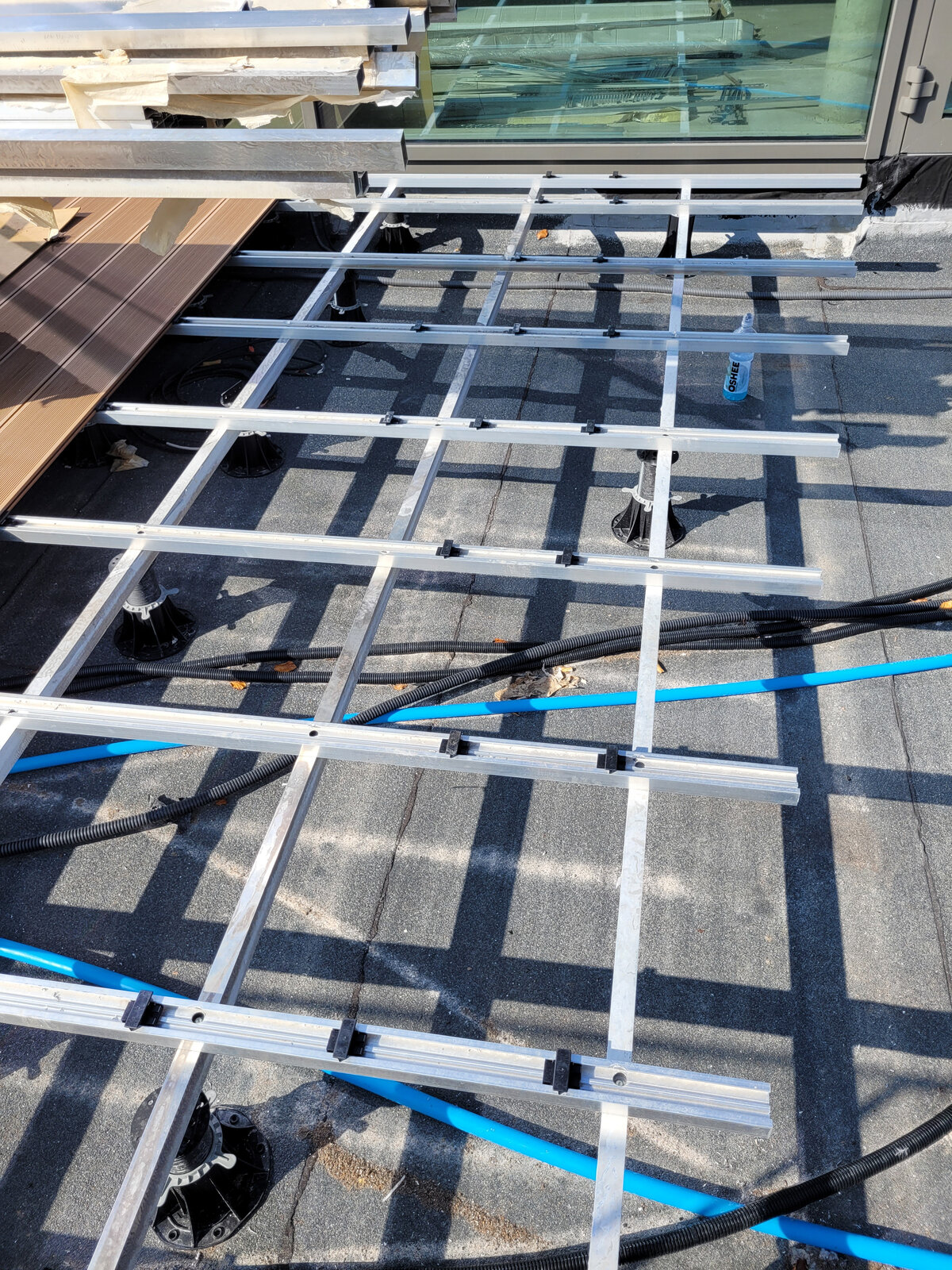

Their modular base allows installers to freely route pipes and cables around the pedestal bases without compromising load-bearing capacity or structural stability.
Balancing Function and Aesthetics

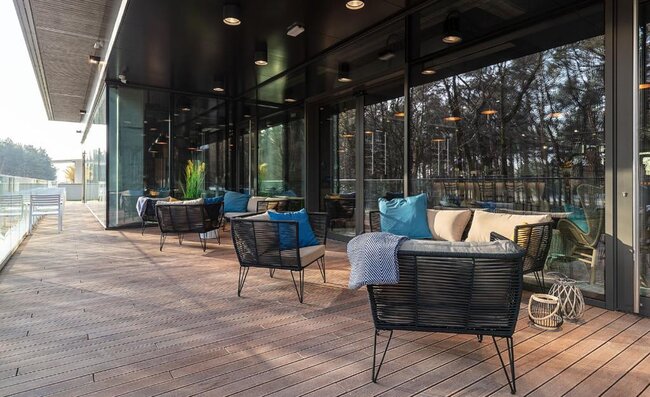

Designing an outdoor space shouldn't require choosing between cohesive aesthetics and practical maintenance. By raising your terrace on a system of adjustable pedestals, you gain the freedom to install all modern conveniences, from outdoor kitchens to perimeter lighting, knowing that every pipe and cable is neatly hidden, safe from the elements, and accessible in minutes.
