Beneath these massive, perfectly level concrete pavers lies a void, a network of drainage channels, and a series of heavy plastic screw jacks supporting the whole assembly.

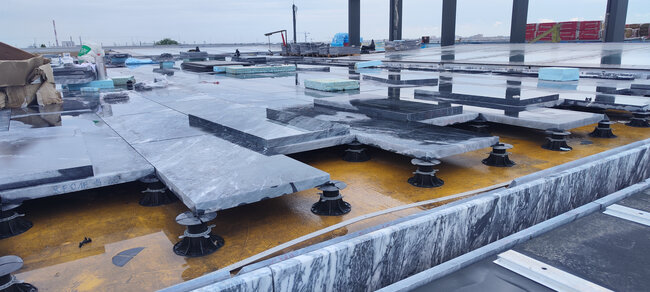

Raised paver systems have become the standard for commercial roofs, plazas, and entrances. They look clean, immediately absorb running rainwater, and give maintenance teams easy access to the waterproofing membrane underneath. But if you've ever tried to set a 150-pound precast concrete paver on a piece of high-density polypropylene, you know it can feel a bit unintuitive. Concrete doesn't forgive mistakes. If your base shifts by even one-eighth of an inch, your plaza will quickly develop a dangerous edge.
As a pedestal manufacturer, we design our adjustable systems for heavy loads specifically to withstand these extreme weights without bending or settling over time. Achieving a perfectly flat surface with heavy materials and plastic supports requires good planning and a solid understanding of how these systems behave on site.
Here's how to do it right.
The real challenge with heavy concrete
Wood-look tiles and thin porcelain pavers are forgiving. Heavy structural concrete pavers are not.

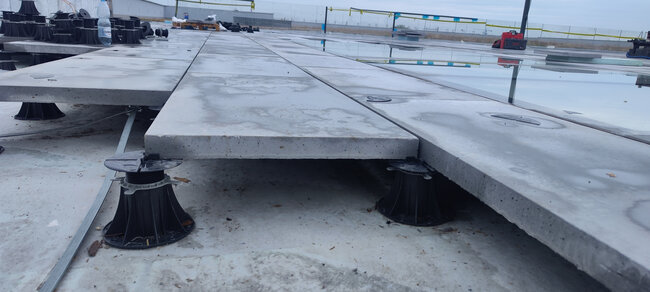

A typical 24x24 inch architectural concrete paver weighs between 50 and 90 pounds. Move up to a 24x36 inch paver or a custom 3-inch-thick slab, and you're easily dealing with 120 to 180 pounds per unit.
When you drop that much weight onto a raised point-load system, three things happen:
- Substrate compression: The roof insulation or membrane beneath the pedestal wants to crush under the concentrated weight.
- Pedestal deflection: Low-grade plastic flexes under static loads, causing subtle sagging across the field.
- Lateral drift: Without proper edge restraint, the entire paver field slowly creeps outward as people walk across it.
To build a plaza that survives heavy foot traffic, maintenance carts, and winter freeze-thaw cycles, you need to manage these three forces from day one.
Step 1: Substrate preparation and layout planning

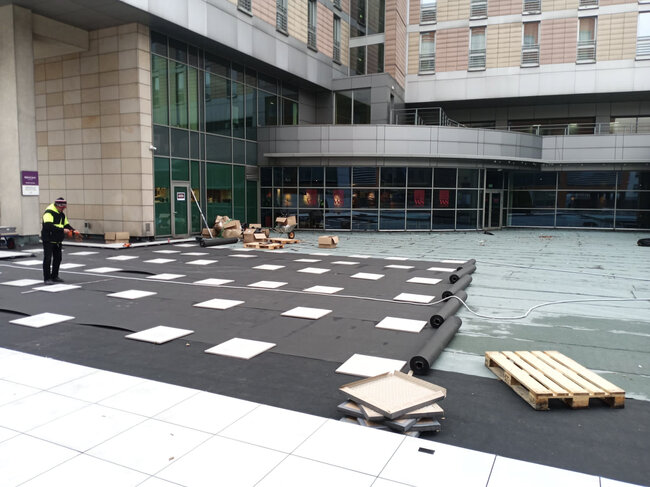

Before you touch even a single pedestal, check the terrace. Your waterproofing membrane or rigid insulation must be suitable for high point loads. If you are placing pedestals directly on soft insulation, you will need load-distributing boards under each pedestal base to spread the weight and prevent settling.

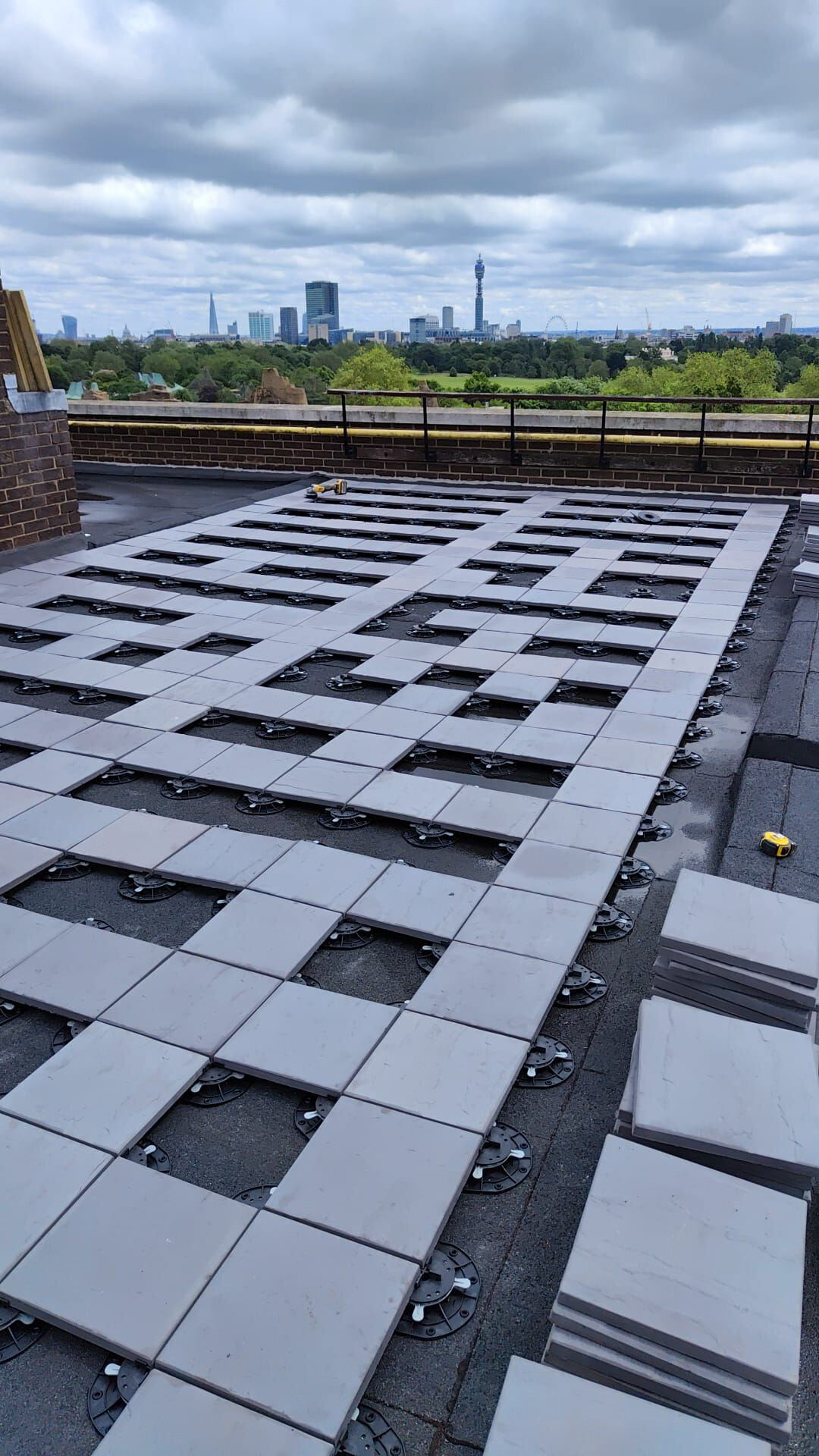

Establish a reference height at the highest point of the terrace slope. Run laser lines across the area to set out a grid. Do not skip this. If your grid is off by a quarter of an inch at the start, the perimeter cuts at the other end of the site will be a nightmare.

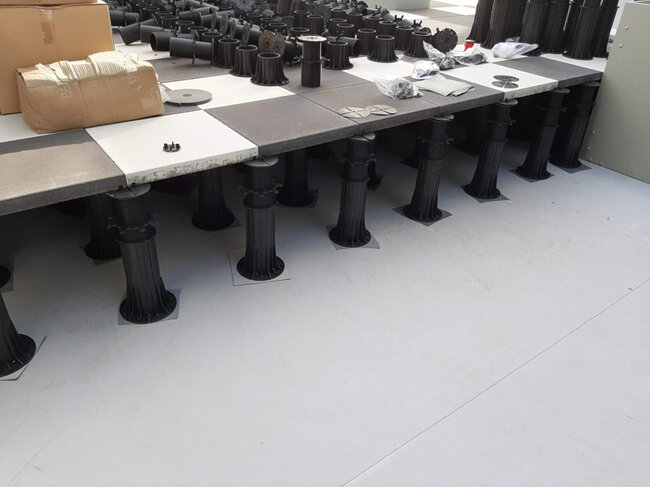

Step 2: Establish the perimeter first
Always secure the edges before filling the field.
Set the perimeter pedestals against parapet walls or restraining curbs. You will need to trim the base plates of the edge pedestals so they sit flush against the wall. We mold cut lines directly into the base of our pedestals so crew members can snap or cut off the excess flange cleanly with a utility knife, keeping the central column exactly where the load is meant to be transferred.
Use perimeter spacer clips or wall restraint springs along every vertical edge. This maintains a uniform expansion gap and prevents the field from shifting horizontally over time.
Step 3: Set height and slope

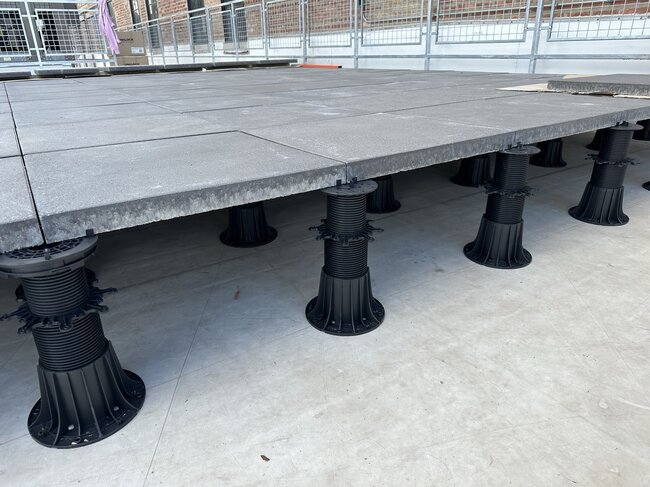

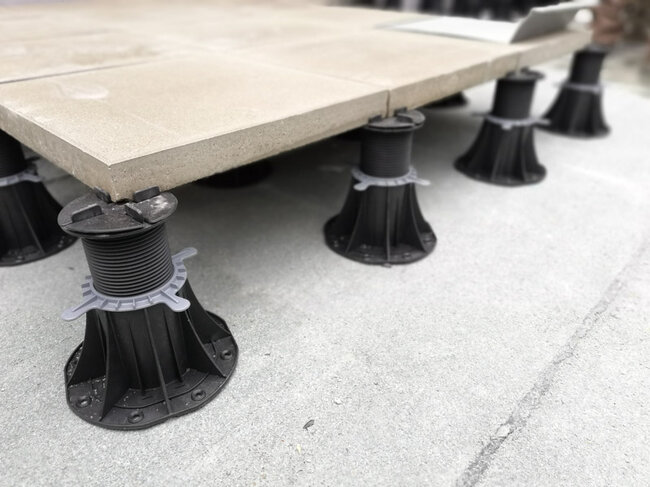

Adjustable pedestals work with threaded columns. You turn the head or adjustment ring to raise or lower the surface height.
Most commercial terraces have a slope of 1/8 inch or 1/4 inch per foot for drainage. To achieve a level plaza surface on a sloped terrace, you need slope correctors. They can be built into the pedestal head or placed under the base plate. Adjust each head until a laser level confirms it matches the target floor height.
Step 4: Laying the concrete
This is where the physical work begins. Manually laying heavy terrace pavers will strain the crew's backs by noon. Use a two-person vacuum lifter or a specialized paver clamp to precisely place each paver on the pedestal head.

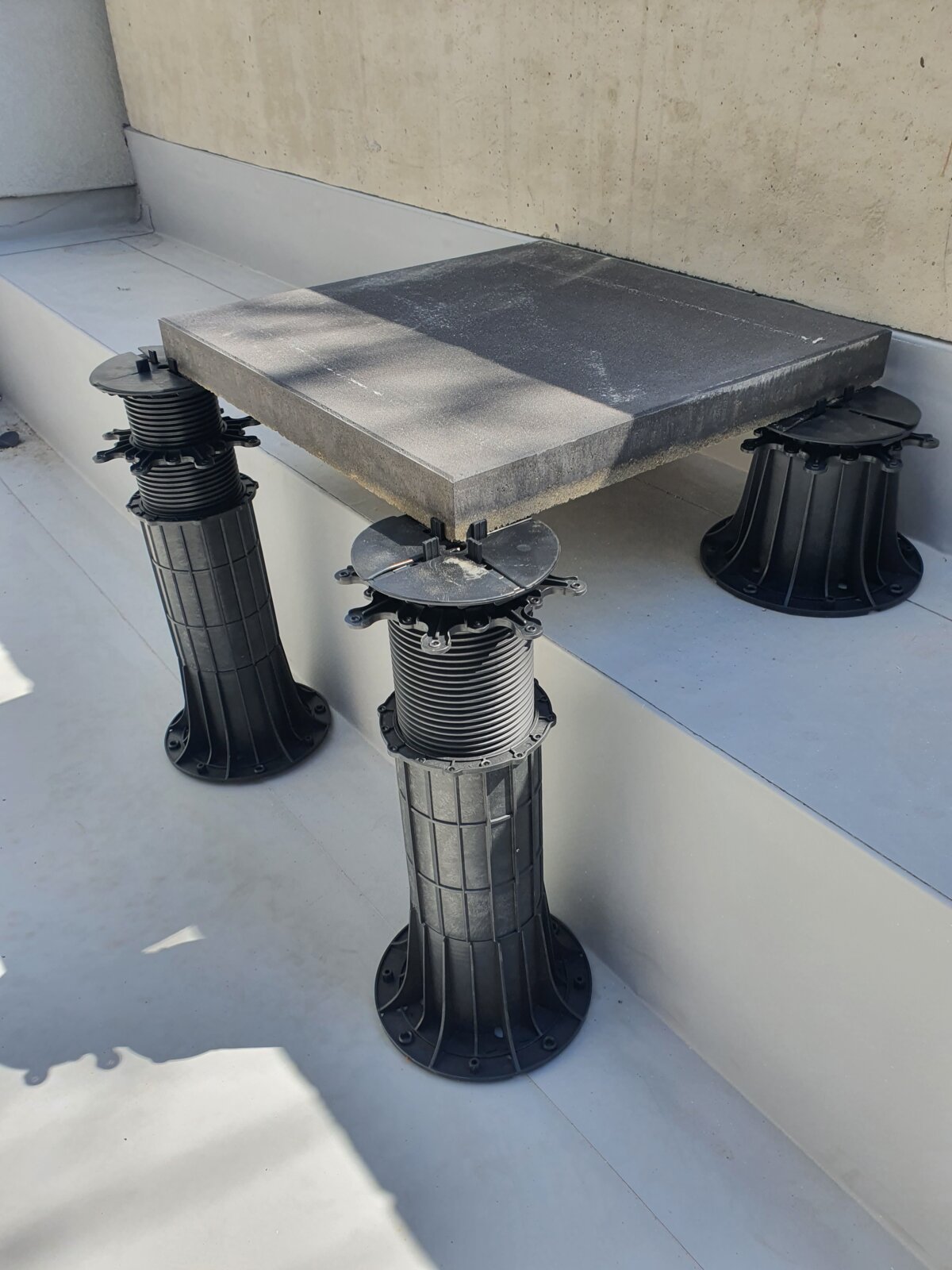

Make sure the terrace paver sits evenly on the spacer tabs built into the pedestal head. These tabs determine the joint width (usually 3 mm or 5 mm) and allow rainwater to drain directly from the surface onto the membrane below.
Step 5: Precise adjustment and shims
Even the best concrete manufacturers have slight variations in the thickness of their pavers. A 2-inch thick paver may be 2-1/8 inches at one corner and 1-7/8 inches at another.
When you lay a paver, check every joint with your foot. If you feel a lip, slide a rubber shim onto the lower quadrant of the pedestal head. Rubber shims level the corners and dampen impact noise when people walk on them.
Three common mistakes that ruin pedestal installations
- Skipping central support for large-format pavers: If you are installing long or large-format concrete pavers (e.g., 18x36 or 36x36 inches), four corner pedestals are not enough. The center of the paver will crack under heavy loads. Always install a central support pedestal under larger pavers.
- Skipping edge restraint: A raised deck terrace requires tight boundaries. If pedestals stand at an open edge without a parapet, you must install a rigid steel or aluminum edge restraint. If the edge shifts, the entire terrace will fall apart.
- Over-extending pedestals: Every pedestal has a maximum safe height. If you unscrew a pedestal beyond its intended limit to reach a high threshold, you lose structural integrity. If you need extra height, use height couplers designed for that specific system instead of exceeding the red limit of a short unit.
Why this engineering works
When people see heavy concrete floating on plastic pedestals, they worry about long-term durability. It's a valid concern, but the materials science behind industrial polypropylene tells a different story.
High-density polypropylene is resistant to water, salt, and soil chemicals. It doesn't rot, freeze, or degrade underground. Because the pedestals keep the concrete above the proper drainage plane, water flows freely beneath the plaza toward the roof drains.
This keeps standing water away from the surface, prevents winter icing, and protects the building's waterproof membrane from direct UV exposure and thermal shock. If a drain clogs in five years, you don't bring out a jackhammer. You lift two pavers with a vacuum lifter, clear the drain, and set the concrete back in place.
If you're planning a commercial investment and want to verify load calculations or develop a difficult slope correction plan, contact our team of engineers. We can review your site plans, calculate point loads, and make sure you get an accurate pedestal specification for your build.
Solid support starts with the foundation
Installing concrete pavers on adjustable pedestals comes down to calculations, planning, and using the right, durable hardware. Approach the preparatory work with due diligence, set a rigid edge, carefully level the corners, and you will build a clean, even commercial plaza that will withstand millions of steps without shifting even an inch.
