You spend hours fiddling with shims, wedges and micro-adjustments, or worse, settle for a finished surface that collects water with every rain.
And this is where self-leveling heads come in. If you are still using fixed-head pedestals on uneven or sloping ground, switching to a self-leveling system is not a minor upgrade, it is a huge change in how quickly and efficiently your construction site operates.
What self-leveling heads actually do (and why you need them)

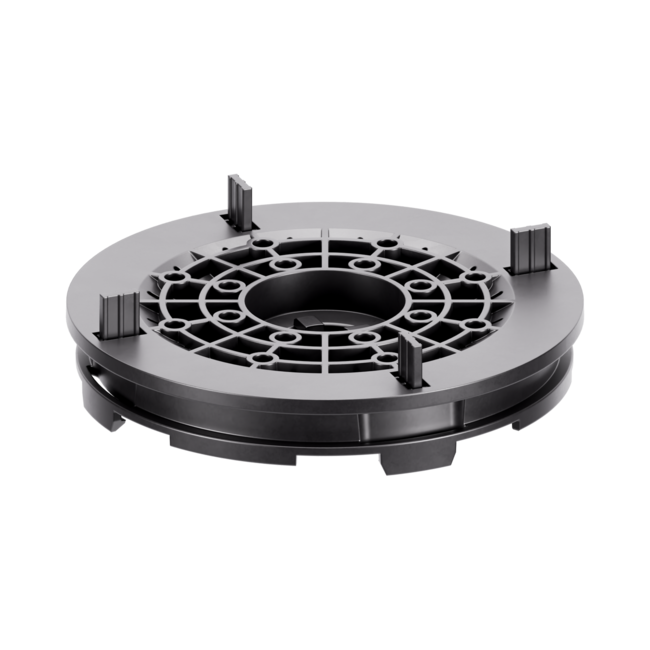

In the simplest terms, a self-leveling head sits on top of the adjustable pedestal's spindle and uses a ball-and-socket mechanism to automatically compensate for slopes, usually up to 5% (or 3 degrees).

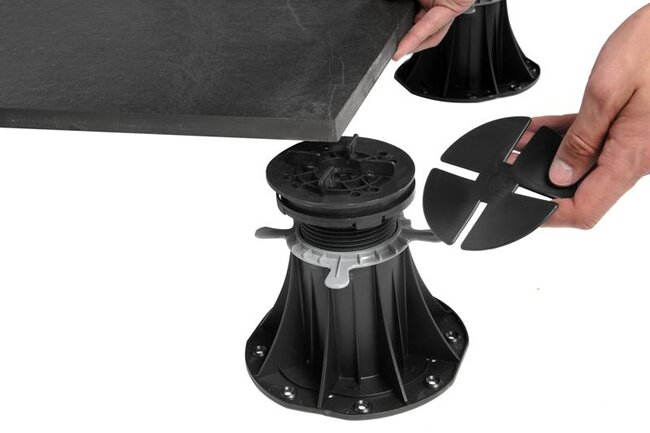

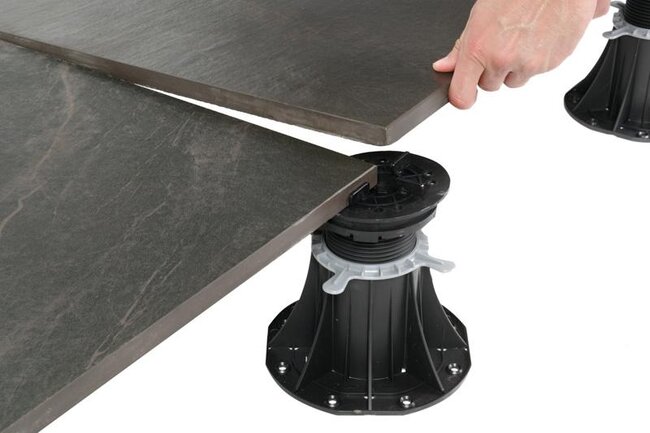

Instead of manually adding shims under each pedestal to match it to the slope of the concrete slab, drainage slope, or waterproofing membrane, the head rotates naturally under the weight of the paver or joist. You lower the pedestal, place the paver on top, and gravity takes care of leveling out the slope for you.
When we designed our pedestal series, this was exactly the problem we set out to solve. On paper, a 2% or 3% slope doesn't sound intimidating. But on a 200-square-meter roof, that small slope turns into hours of frustrating trial and error if the pedestal heads are completely rigid.
1. The nightmare of sloped roofs and drainage
Most commercial rooftop terraces and balconies are deliberately built with a slope to direct rainwater toward drainage points. This is a great solution for the structural integrity of the building, but it poses a problem when laying a perfectly flat paved surface on top.

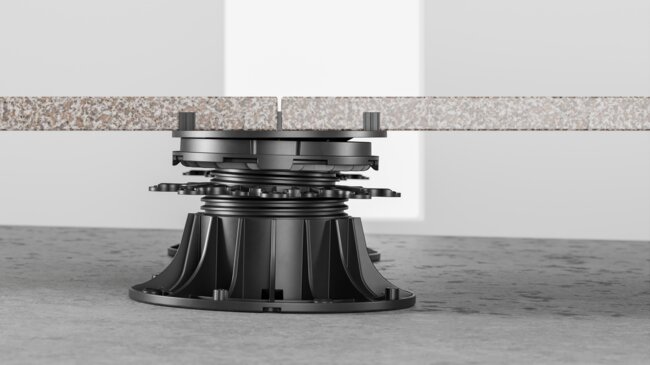

With traditional pedestals, each individual head is set at an angle relative to the terrace paver. This causes edge loading, where the edge of the tile bears the entire load instead of resting flat on the pedestal's support pad. Over time, this concentrated pressure leads to cracked pavers or chipped edges. The self-leveling head rotates to precisely match the underside of the paver, ensuring full contact and even weight distribution across the entire base.
2. Absorbing Substrate Unevenness

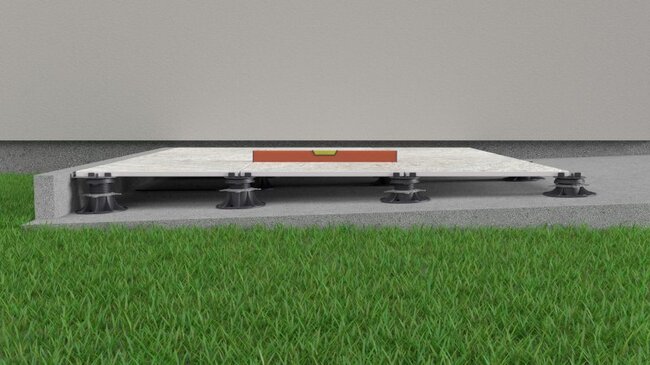

Concrete is rarely flat. Even on internal suspended floors or ground-level screeds, there are bumps, hollows, and joint lines everywhere. If a fixed pedestal lands on a slight rise, the whole pedestal stands at a slight angle, which disrupts the height lines across the entire row.
Self-leveling heads automatically absorb these local bumps. You get a perfectly even finished surface above, even if the concrete underneath looks like a topographic map.
3. Speed on the construction site
Time is money on any construction site. When we talk to installers using our self-leveling pedestals, the biggest benefit they mention is not the technical aspect, but speed. Eliminating the need to manually place shims under every third pedestal significantly shortens installation time, allowing your crew to cover far more square meters per day.
Practical tips for the crew: How to get the best results
Although self-leveling heads make installation much easier, a few proven practices will help keep the work running smoothly:
- Know your slope limits: Most self-leveling heads, including our standard series, are designed to compensate for slopes up to 5%. If the slope is greater, they should be combined with base slope correctors to handle the additional angle before setting the height.
- Lock the slope when needed: Sometimes you want the finished surface to follow a gentle slope (for example, on a balcony without drainage, where surface runoff is required). Look for pedestals equipped with an optional head-locking key, which allows you to switch between self-leveling mode and fixed mode depending on the section of the terrace you are working on.
- Check perimeter stability: Along outer edges or at parapet walls, cut pavers can sometimes tilt if they are not evenly loaded at four points. Use dedicated perimeter clips or shims to keep edge pavers tightly pressed against the wall.
Summary
Building a commercial or residential terrace should not resemble a constant battle with gravity and poorly executed concrete screeds. By letting physics make micro-adjustments for you, self-leveling pedestal heads protect tiles from damage caused by point loads, give your clients a perfectly even surface, and save the crew hours of tedious work.
If you are planning your next terrace or paving project and want to see how our self-leveling pedestals perform on site, contact our technical team or order a trial kit to test the mechanism yourself.
