When designing raised deck terrace systems using adjustable plastic pedestals in combination with deck boards made of natural wood or composite (supported by a substructure of joists), a key factor is performance in cold climates. Sub-zero temperatures, icing, frost heave, and ground movement create physical forces that act directly on the pedestals, the joist grid, and the deck boards above.
Understanding the interaction of these elements helps ensure a durable, safe, and visually consistent terrace throughout the year.
1. How winter conditions affect pedestals, wood, and composite boards
Winter brings a distinct set of physical loads to raised outdoor terraces, affecting each element of the terrace structure differently.
Temperature fluctuations and thermal expansion
Building materials expand and contract with seasonal temperature changes, but they do so at different rates depending on their composition.
- Plastic pedestals: Pedestals are typically molded from high-density polypropylene (PP) with additives that modify UV and low-temperature resistance. Polypropylene handles cold well, although the polymer's stiffness increases when the temperature drops below zero. As manufacturers, we account for load-bearing behavior at low temperatures and impact resistance in structural design to ensure pedestal reliability during freeze-thaw cycles.
- Wooden boards: Natural wood expands and contracts mainly due to changes in moisture, not temperature alone. In cold climates, wooden boards absorb moisture, which expands as it turns to ice. This can lead to surface cracking, warping, or bowing of the boards if they are not properly protected, ventilated, and spaced.
- Composite boards: Wood-plastic composites and polymer-capped boards exhibit a higher coefficient of thermal movement than natural wood. They noticeably contract in cold and expand in summer heat. End gaps between boards are crucial when planning for winter so that the boards have room to expand later without buckling.
Frost heave and ground movement
In ground-level or raised-on-grade installations, moisture trapped in the subbase freezes and expands, lifting the soil in a process known as frost heave.
- Rigid structures: Traditional concrete pillars or posts anchored in the ground can rise unevenly if the foundations are not set deep enough below the local frost line, leading to twisting, tilting, or structural stress in the frame.
- Floating structures: A system of adjustable pedestals creates an unanchored, "floating" support for the substrate. Because the pedestals rest on the subbase rather than being rigidly fixed, the structure can absorb minor ground movements within the terrace without cracking rigid foundations or overloading the joist connections.
Dynamic snow and ice loads
Accumulated snow adds a significant dead load to the entire terrace structure. In configurations with joists and boards, meltwater from snow must drain off the boards and through the joist grid without forming ice pockets around the pedestal bases. The pedestals must carry these heavy static snow loads while keeping the joist frame above accumulating water.
2. How adjustable pedestals compensate for ground movement beneath the terrace
The key engineering advantage of an adjustable pedestal system in a cold climate is its ability to separate the finished terrace surface from the moving ground below.

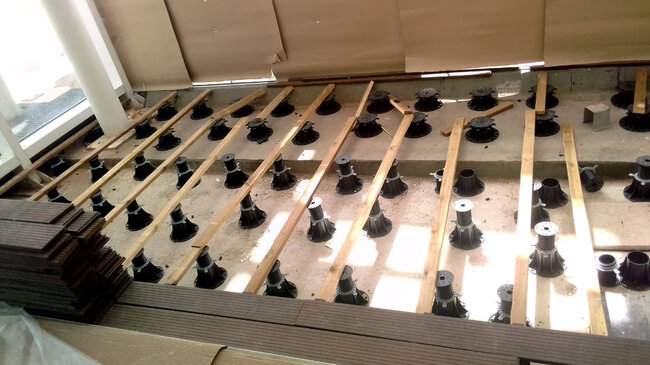

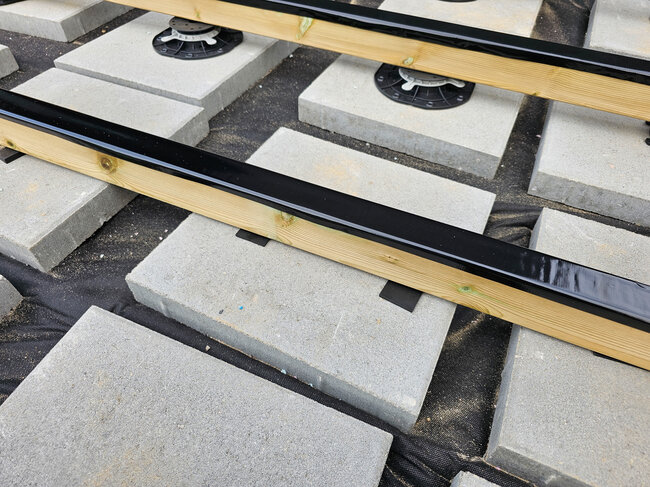

- Overview of layered assembly: On the surface there are wooden or composite deck boards, fastened to an underlying grid of aluminum or wooden joists. The joist frame rests on adjustable pedestal heads equipped with specialized joist-fixing clips. The pedestals stand directly on the substrate membrane, concrete slab, or compacted sub-base. Beneath this structure lies the frost line, where seasonal frost heave occurs.
- Independent, non-bonded support: Because the pedestal feet rest on the ground and are not concreted into permanent foundations, small vertical ground movements under one section of the terrace do not create strong localized shear forces. The joist structure distributes the load to adjacent pedestals.
- Adjustment after thaw: If severe frost heave or uneven settlement causes minor dips or bulges in the terrace surface after a harsh winter, individual pedestals can be adjusted after the spring thaw. Raising or lowering specific pedestals restores a flat, level walking surface without dismantling the frame or deck boards.
- Air circulation beneath the terrace: Raising the joist grid above the ground creates an open space for continuous airflow. This airflow accelerates the drying of wooden joists, the undersides of composite, and the drainage layers beneath the terrace, reducing the risk of trapped ice accumulation and long-term rot.
3. Safety, system performance and risk management
To maintain the structural integrity and user safety during winter, several factors related to site management and materials must be considered:
Managing thermal gaps
Composite boards contract when the ambient temperature drops. Joist connectors and clips must allow the boards to slide or flex slightly without shearing the screws or causing the boards to bulge when temperatures rise again in spring. During installation, always follow the detailed winter gap tables provided by the decking board manufacturer.
Lateral stability and frame bracing
Since pedestal systems on pavers are not anchored in deep ground piles, perimeter stability is crucial. The joist frame must be securely connected using cross-bracing, perimeter joists, or fixings to the wall edge strip, where appropriate. Perimeter edge restraints ensure that the entire joist grid remains laterally anchored during movements associated with freeze-thaw cycles.
Snow and Ice Removal
- Snow Removal: Use plastic shovels or snow blowers with soft rubber edges. Metal shovels can damage the surface layer of composite boards or scratch the finish of wood. Always shovel snow parallel to the deck boards to avoid catching the edges of the boards.
- Chemical De-Icing Agents: Calcium chloride is generally preferred over rock salt (sodium chloride) for melting ice on composite and wooden decks. Always check both the deck board manufacturer's guidelines and the pedestal manufacturer's chemical compatibility charts before using de-icing agents, as some chemicals can dull the board finish or react with plastic components.
4. What to verify when selecting products
Every terrace installation involves distinct load criteria, climatic profiles, and requirements for the supporting structure. When evaluating a system of adjustable terrace pedestals for winter projects with wooden or composite boards, the following details should be verified:
- Material assessment at low temperatures: The pedestal manufacturer should be consulted for data on polymer behavior, impact resistance, and load-bearing capacity at sub-zero temperatures.
- Joist fastening elements: It should be confirmed that the pedestal head design includes secure joist fastening clips or head adapters compatible with the selected joist material (aluminum or wood).
- Snow load and dead load assessment: It should be ensured that pedestal and joist spacing calculations account for the maximum local snow accumulation in the given region along with the weight of the supporting structure and terrace material.
- Substrate preparation: The recommended substrate preparation (such as compacted aggregate, drainage mats, or concrete slabs) should be verified to minimize seasonal frost movement beneath the pedestals.
- Chemical resistance: Product documentation should be checked to ensure that pedestals and terrace boards are resistant to degradation caused by commonly used de-icing agents and ice-melting chemicals.
Final Conclusions
Floating wooden and composite decks built on adjustable pedestal systems provide a durable, adaptable surface for cold-climate applications. By understanding how thermal movement, frost heave of the substrate, and drainage beneath the deck interact with one another, designers, contractors, and owners can design decks that maintain performance and visual appeal year after year.
Note: Load-bearing capacity, low-temperature performance parameters, structural support requirements, and installation procedures vary by manufacturer and product line. Always review the technical data sheets for the specific pedestals and decking products, check local building codes, and consult a qualified structural specialist to verify the design for the specific application.
