Installation of the terrace without permanent gluing

Trouble-free installation without adhesive, mortar, and grouting - the raised deck terrace system is a solution to many problems associated with traditional glued terraces.

Raised deck terrace without mortar or adhesive

More and more investors are abandoning the traditional method of gluing pavers to the substrate on the terrace. This is because a modern raised deck terrace without adhesive is more durable, easier to maintain, and significantly safer for the building structure.

The raised floor technology allows for the construction of a terrace without wet work - without gluing, grouting, or permanent connection to the substrate. The pavers rest pointwise on pedestals, creating a stable structure that is comfortable to use and install.

If you want to learn the basics of the system:

See also: What is a raised deck terrace

1. What is a raised deck terrace, i.e., a terrace without adhesive?

In a traditional terrace, all layers, including the paver and waterproofing, are connected to each other — the pavers are glued to the substrate, and the joints are filled with grout, which means the structure is permanently bonded.

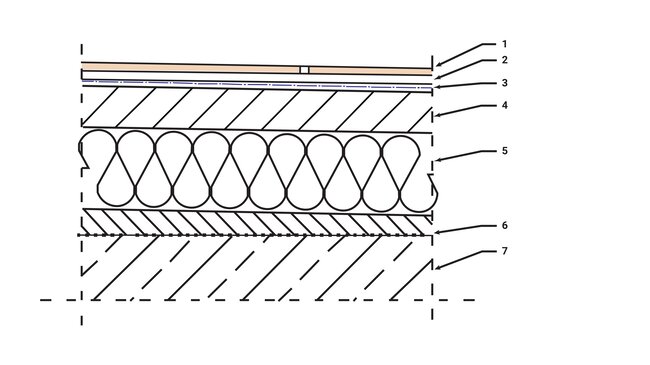

The layers of a glued terrace look as follows:

  1. terrace paver
  2. adhesive
  3. waterproofing layer
  4. compression layer
  5. insulation layer
  6. slope layer
  7. structural slab

In contrast, in the raised deck system, the pavers are supported on adjustable pedestals or support pads. There is no need to glue elements to the substrate, which allows for complete disassembly of the structure at any time.

This system has many advantages, primarily protecting the building structure, but also offering speed of installation and the possibility of inspection.

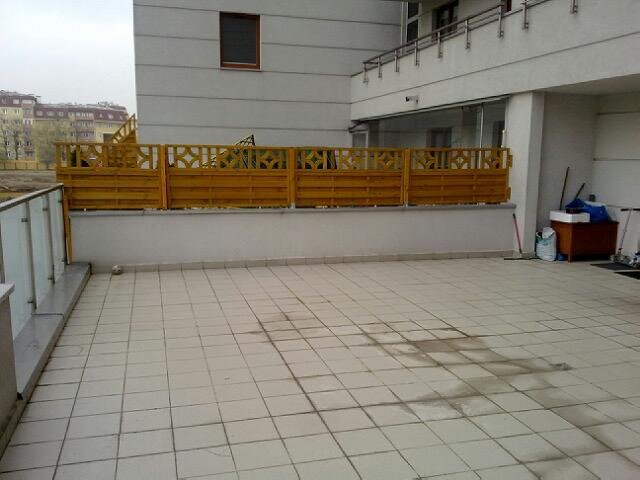

Schemat warstw tarasu tradycyjnego klejonego ocieplonego Low-aesthetic glued terrace with water pooling

2. Why does gluing a terrace cause problems?

In traditional systems, the most common faults result from:

  • moisture being trapped under the paver
  • water freezing in the adhesive layers
  • damage to the waterproofing membrane
  • thermal movement of materials

Water that gets under the paver has no way to evaporate, causing them to crack or the grout to crumble. In a raised deck system, the situation is different – water flows freely into the lower layers and does not accumulate under the surface.

More about the differences:

See also: Elevated terrace vs traditional glued terrace

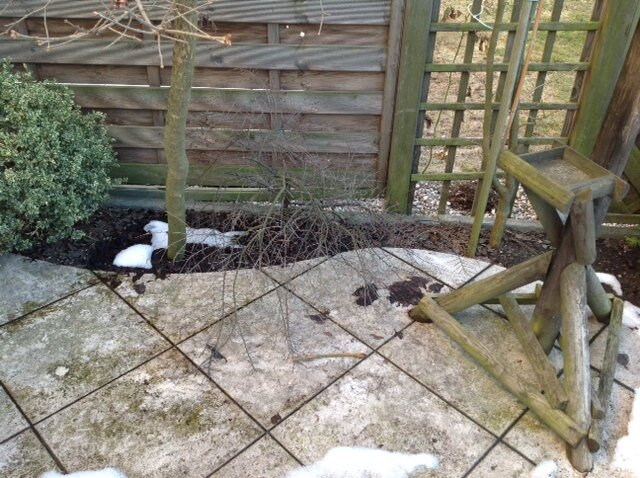

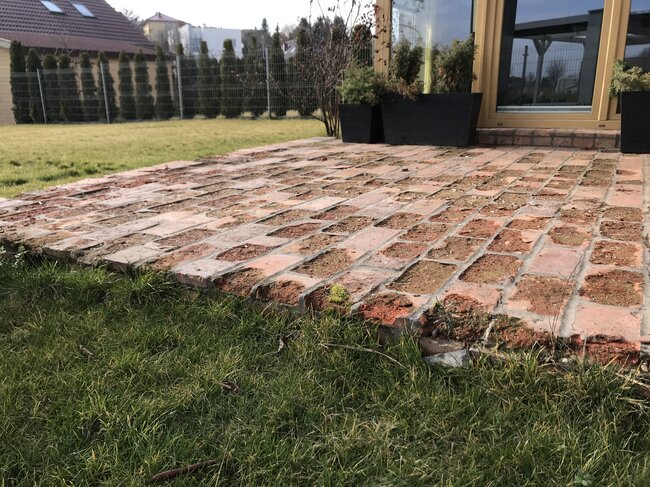

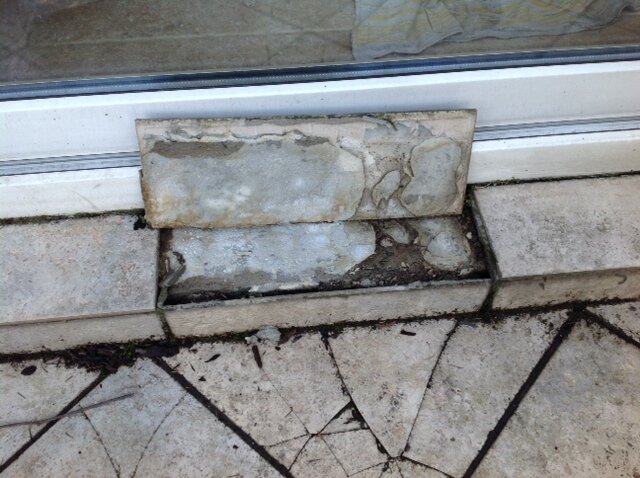

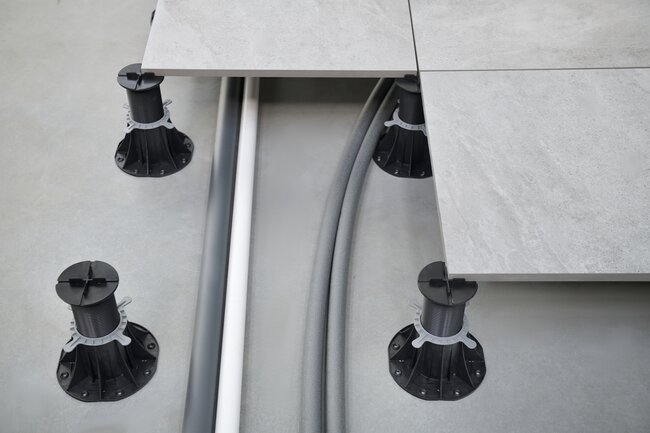

Water or electrical installation routed under the raised deck terrace Delaminated paver and cracked paver on a traditional adhesive terrace Damaged pavers on a glued terrace Damaged glued terrace made of bricks on the ground

3. How does a raised deck terrace without mortar work?

A raised deck terrace consists of:

  1. concrete paver
  2. terrace pedestal
  3. waterproofing membrane
  4. thermal insulation
  5. vapor barrier
  6. sloping layer with a 1.5-2% gradient
  7. bonding layer
  8. reinforced concrete balcony slab

Laying pavers on a raised deck terrace - installation rules

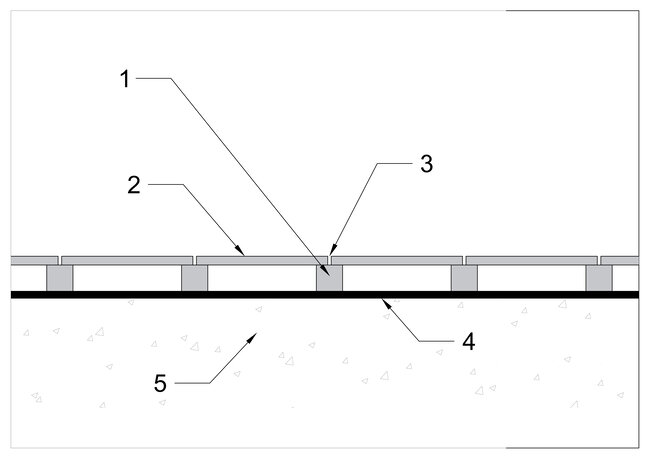

Illustration showing a raised deck terrace diagram img

4. Key advantages of a glue-free terrace

  1. No wet work

In a raised deck terrace, there is no need for adhesives. Mortars and grouts are also not used.

  1. Waterproofing protection

The absence of drilling and gluing reduces the risk of damaging it.

  1. Dismantling capability

Each paver can be removed individually for inspection.

  1. Speed of installation

The absence of wet work significantly shortens the working time, as there is no need to wait for materials to set.

  1. Height adjustment

Pedestals allow for correcting slopes even with large differences in levels.

If you are interested in the topic of load-bearing capacity:

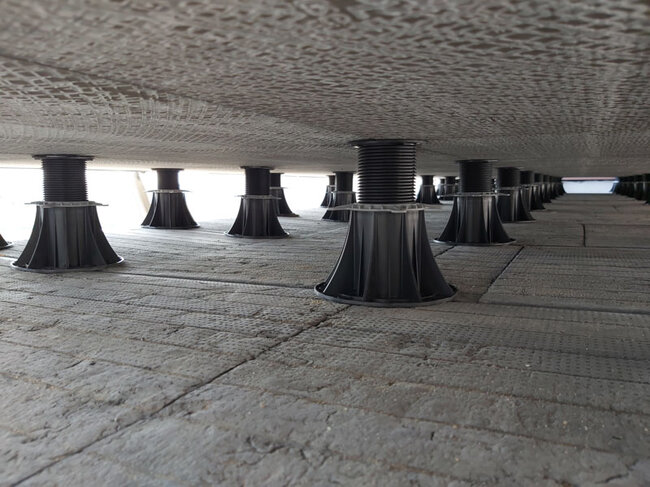

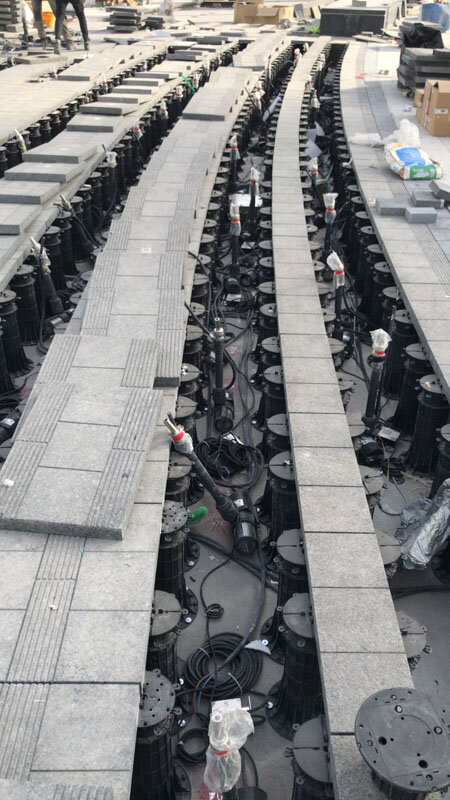

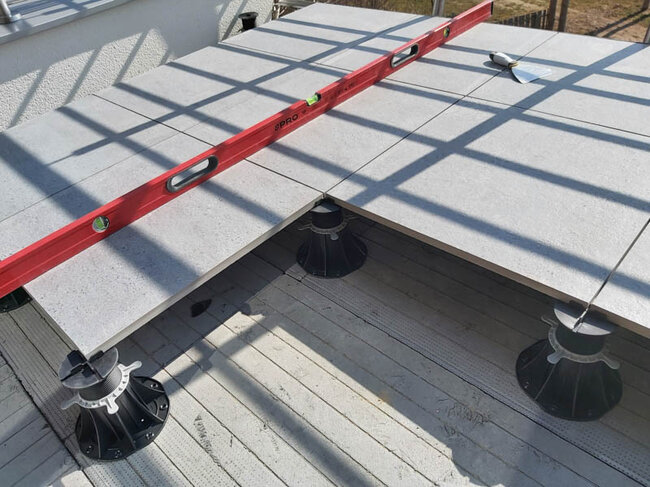

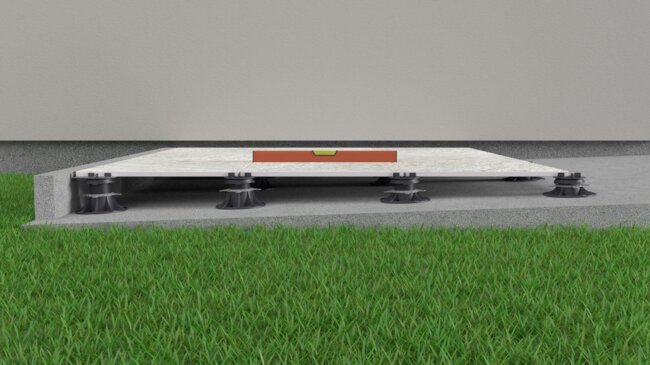

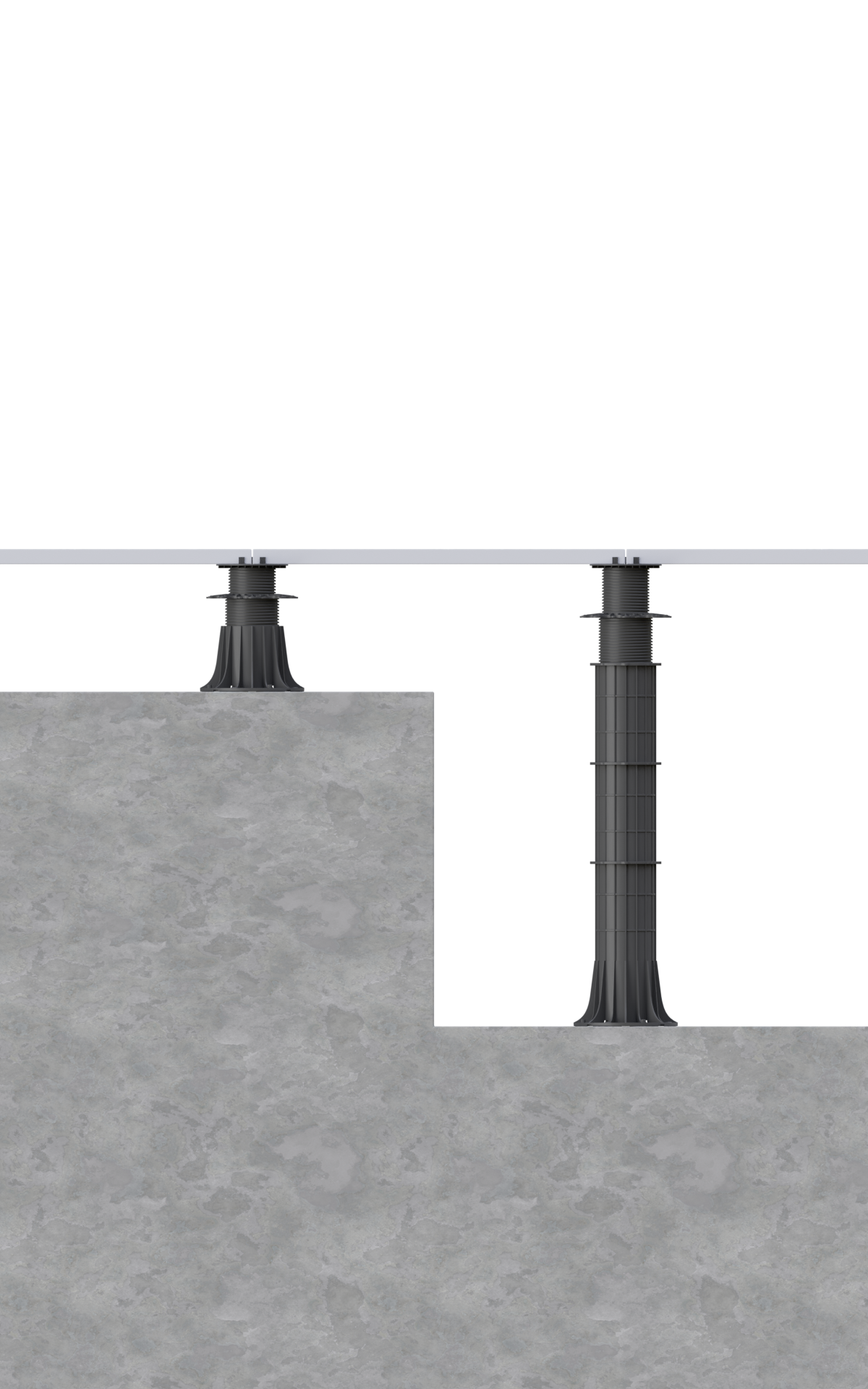

The underside of a raised deck terrace structure with pavers Installation of a raised deck terrace structure with pavers Installation of a fountain in a raised deck terrace system Pavers on a raised deck terrace on a flat roof

5. Where does a raised deck terrace without adhesive work best?

The technology is used:

  • on balconies
  • on rooftop terraces
  • around swimming pools
  • on large development projects
  • around fountains
  • when renovating old terraces
  • on residential ground-level terraces
  • in restaurant gardens
  • at exhibitions
  • where service access is required.

It works particularly well on flat roofs:

See also: Roof terrace - how to build a raised deck terrace step by step

6. Are terrace pavers without adhesive stable?

This is one of the most frequently asked questions about raised deck terraces, and the answer is - yes!

However, they must be spaced at appropriate distances (especially under additional loads such as planters, a pergola, or a jacuzzi), and the substrate should be stable and clean.

Standard 60x60x2 cm pavers are supported at the corners so that the system transfers loads evenly directly to the substrate.

About the structural layers:

See also: Raised deck terrace system components

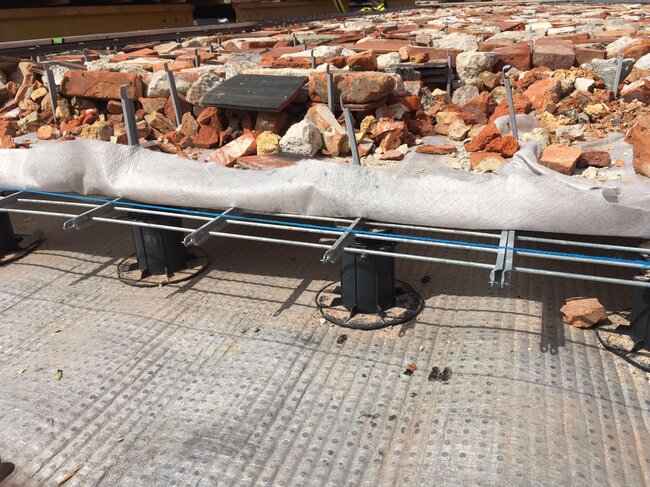

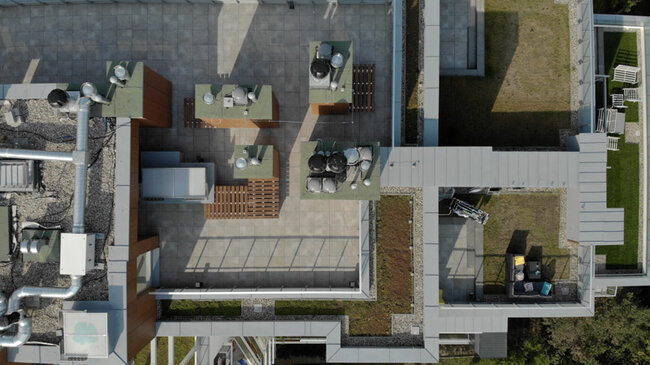

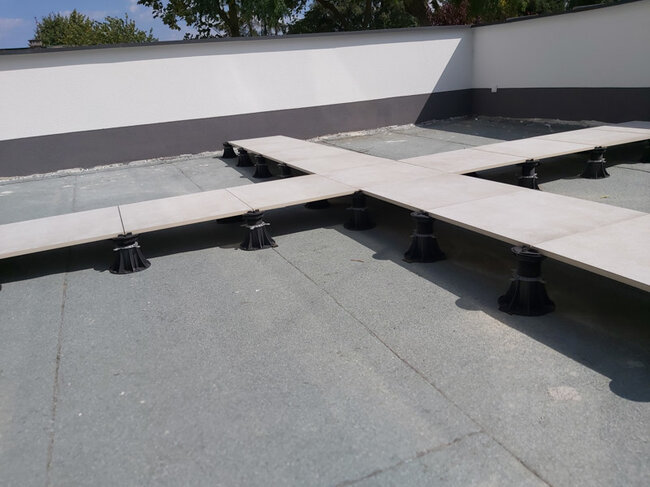

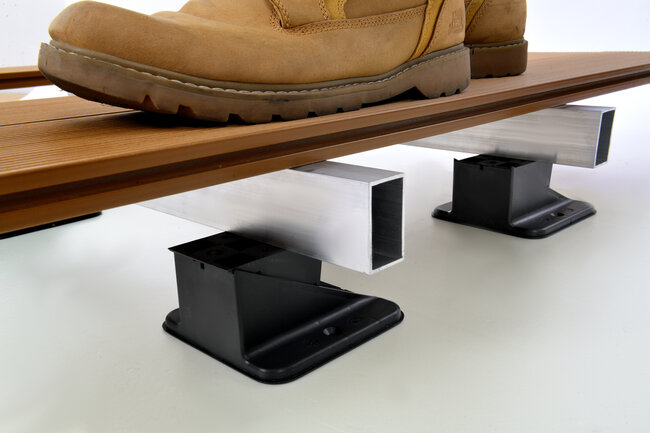

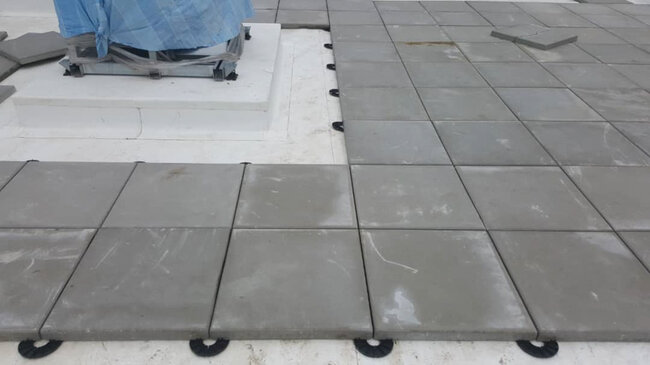

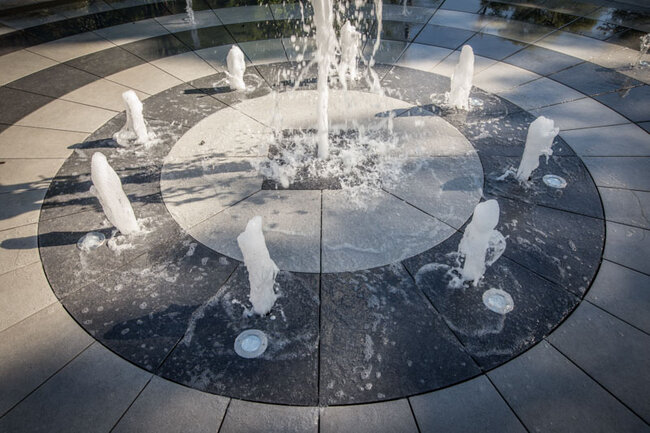

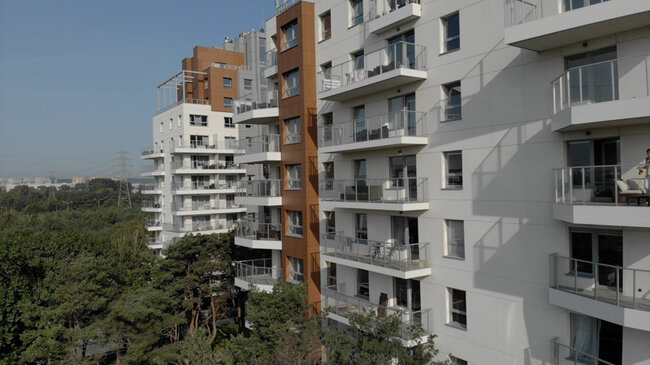

Grates with load held by terrace pedestals Concrete paver terrace on support pads Fountain made on adjustable pedestals and pavers Balconies made in the raised deck terrace system Flat roof on a raised deck terrace Adjustable pedestals with joists and boards Adjusting the slope of the terrace with joists and adjustable pedestals

7. Can a terrace without adhesive be renovated?

Definitely yes.

It is one of the best solutions for modernization because:

  • there is no need to remove the old waterproofing
  • unevenness can be hidden
  • the terrace level can be raised to the door threshold
  • installation is clean and quick
  • additional installations can be hidden under the terrace

More about modernizations:

See also: Renovation of a terrace and balcony using raised deck terrace technology - step by step

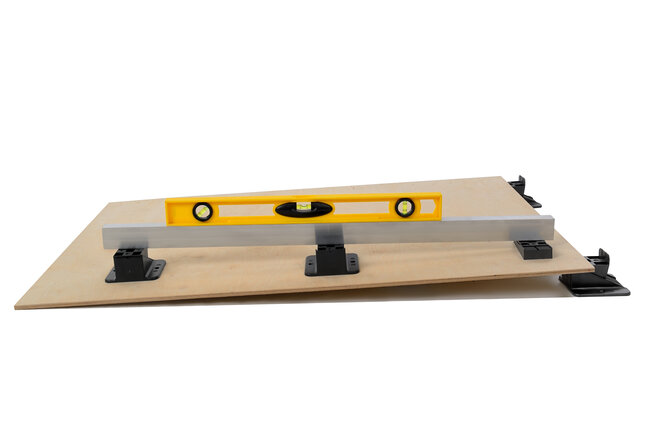

Damaged glued terrace before renovation Montaż tarasu bez trwałego przyklejania 23

8. Most common mistakes when installing without adhesive

The main mistakes during installation result from:

  • incorrect spacing of supports (without checking the paver's strength and design assumptions)
  • unstable substrate
  • lack of proper expansion gaps at structural elements and between pavers.

We have described them in more detail here:

See also: Most common mistakes during the installation of raised deck terraces

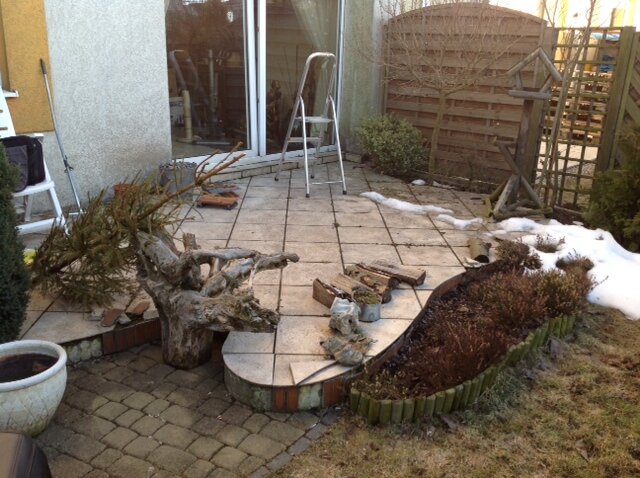

Montaż tarasu bez trwałego przyklejania 24

Summary

Glueless terrace is a modern, system-based installation method that eliminates most of the problems associated with traditional solutions.

A raised deck terrace without mortar means:

  • no grout or adhesive
  • no water retention
  • no degradation of waterproofing
  • full serviceability.

This is not just an alternative to glued systems. It is a technological standard in modern construction
