Why Porcelain Pavers on Roof Decks Fly Away (and How to Keep Them in Place)
Architects love 20 mm porcelain pavers for rooftop spaces. They are lightweight, non-porous, fade-resistant, and elegant. However, that low weight—often under 10 pounds per square foot—becomes a liability when extreme weather hits high-rise buildings.
At height, wind doesn't just push horizontally against a roof deck; it generates a pressure differential. Fast-moving air flowing over an open-jointed paver system creates a low-pressure zone above the surface, while high-pressure air builds up underneath through the open joints. The result is wind uplift: a lifting force that tears pavers off their pedestals.
If left unaddressed, wind uplift leads to paver displacement, damage to the waterproofing membrane underneath, serious property damage, and significant safety hazards for pedestrians below. Securing porcelain pavers against high winds is a structural requirement for any rooftop amenity space.
Understanding Differential Pressure Dynamics
The fundamental wind suction mechanisms acting on a raised deck terrace with open gaps come down to four distinct pressure zones:
- Upper surface (low pressure): High-velocity air flowing over the roof creates a localized vacuum directly above the pavers, according to Bernoulli's principle.
- Open gaps: Gaps of 3/16 inch or 1/8 inch width between pavers allow wind currents to penetrate beneath the terrace surface.
- Chamber beneath the terrace (high pressure): Ambient air becomes trapped and compressed in the open space beneath the raised pavers.
- Resultant suction force: The combination of upward-directed pressure from below and suction from above creates a lifting force strong enough to overcome the paver's own weight.
Wind Suction Physics on Raised Decks
Understanding why wind suction damages open-gap pedestal systems comes down to aerodynamics and mechanical leverage:
- Bernoulli's principle on roofs: Air accelerates as it rises over the edge of a building's parapet. Fast-moving air lowers the pressure on top of the paver, while ambient air remains trapped in the void below.
- Vortex formation at corners and edges: Wind does not hit the roof evenly. It swirls violently around corners and parapets, creating local pressure spikes that lift pavers from the edges.
- Overturning forces: A single unanchored paver caught by a gust can tilt. Once one paver loosens, wind enters the open void beneath adjacent pavers, causing a domino-effect failure across the entire deck.
Comparison of Popular Wind Uplift Resistance Strategies
Contractors and designers use several methods to resist wind uplift forces in raised paver systems. Each involves different trade-offs in labor, accessibility, and long-term performance:
- Heavy ballast: Relies on self-weight (concrete or stone ballast). While installation speed is moderate, gaining access to the membrane is difficult. The main drawback is that heavy ballast easily exceeds the allowable dead loads of the structure and negates the benefits of porcelain's lightweight nature.
- Surface adhesives: Rely on chemical bonding agents. Installation is slow and completely eliminates access to the membrane beneath the deck. The main drawback is inevitable failure during thermal expansion cycles and the destruction of substrate access.
- Mechanical edge restraints: Use perimeter fastening along walls and parapets. Installation is fast and provides high membrane accessibility. However, perimeter fastening leaves pavers in the central area of the terrace exposed to localized uplift caused by corner vortices.
- Pedestal locking systems: Use mechanical anchors, clips, or tray assemblies. Installation speed ranges from fast to moderate, while maintaining full membrane access. The main requirement is matching the system to compatible paver edge profiles or tray supports.
1. Heavy ballast
Adding weight is the oldest way to secure a roof. While concrete pavers rely on their own weight (25–30 pounds per square foot) to resist uplift forces, porcelain pavers weigh about 9–10 pounds per square foot. Adding extra ballast on top of porcelain destroys the clean aesthetic and increases the dead load, which structural engineers rarely approve for high-rise conversions.
2. Surface adhesives and continuous sealing compound
Gluing terrace pavers to structural pedestals or assemblies creates a rigid plane. However, roofs constantly expand and contract with temperature changes. Adhesives degrade over time, lose elasticity, and eliminate one of the greatest advantages of the pedestal system: easy access to the underlying roof membrane for leak detection and repairs.
3. Perimeter and parapet fixing
Securing the terrace perimeter with mechanical perimeter clips prevents wind from getting under the edges. Although effective in low to medium wind zones, perimeter clips alone cannot protect the centre of a wide roof terrace from local pressure drops during strong winds.
4. Integrated Pedestal Locking Systems

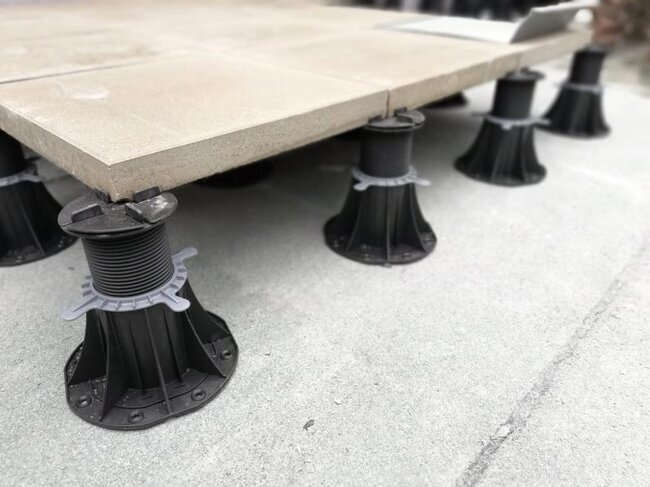

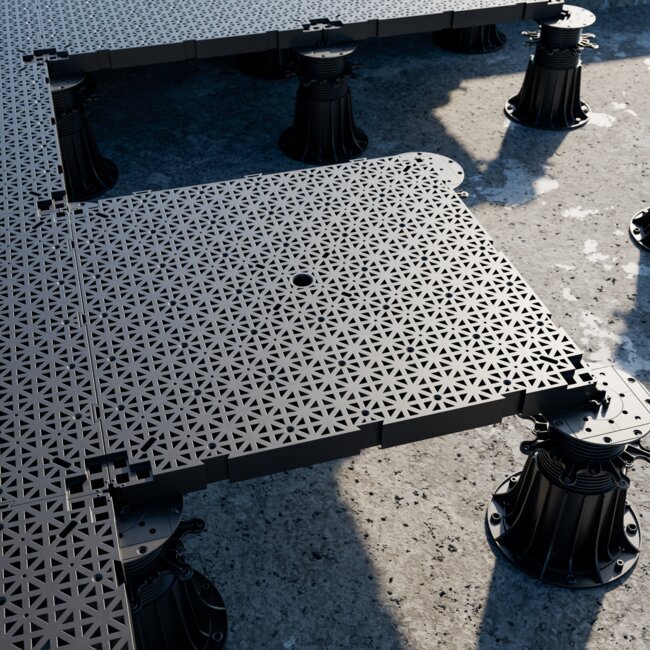

Modern installation methods connect the paver directly to the pedestal head using specialized mechanical clips, protective trays mounted from underneath, or corner-locking discs. These systems turn individual lightweight pavers into a unified mat without losing drainage and accessibility.
Choosing the right system for your terrace
Preventing wind uplift requires balancing structural load limits, wind zone requirements, and long-term maintenance needs. Lightweight porcelain pavers offer incredible durability and style, but at greater heights they require a dedicated fastening strategy.
In our next post, See also: DeckSafe locking pin with screw.
[[LINK:1740|Deck-Safe]]
See also: DeckSafe locking pin with screw
See also: DeckSafe locking pin with screw.
we dive into the details of the mechanics of locking systems, comparing bottom tray assemblies, clip mechanisms, and pedestals with head locking, to help you choose the right specification for your next project.
