| Short name |
|
DECS-GRP-(1)
|
| Full name |
|
DeckSafe Substructure Grating and Paver Positioning Pin with Locking Pin
|
| Product group |
|
DeckSafe
|
| Code |
|
108.020111
|
| EAN |
|
5904276345351
|
| Application |
|
• terrace tiles
|
| Minimum height [mm] |
|
2.5 mm
|
| Minimum height [inch] |
|
1/16 inch
|
| Maximum height [mm] |
|
2.5 mm
|
| Maximum height [inch] |
|
1/16 inch
|
| Load resistance up to |
|
0 kg
|
| Load resistance up to [lbs] |
|
0 lbs
|
| What finishing materials can be used |
|
• DeckSafe
• concrete paver • ceramic tile • stone pavers |
| characteristic_attributes |
|

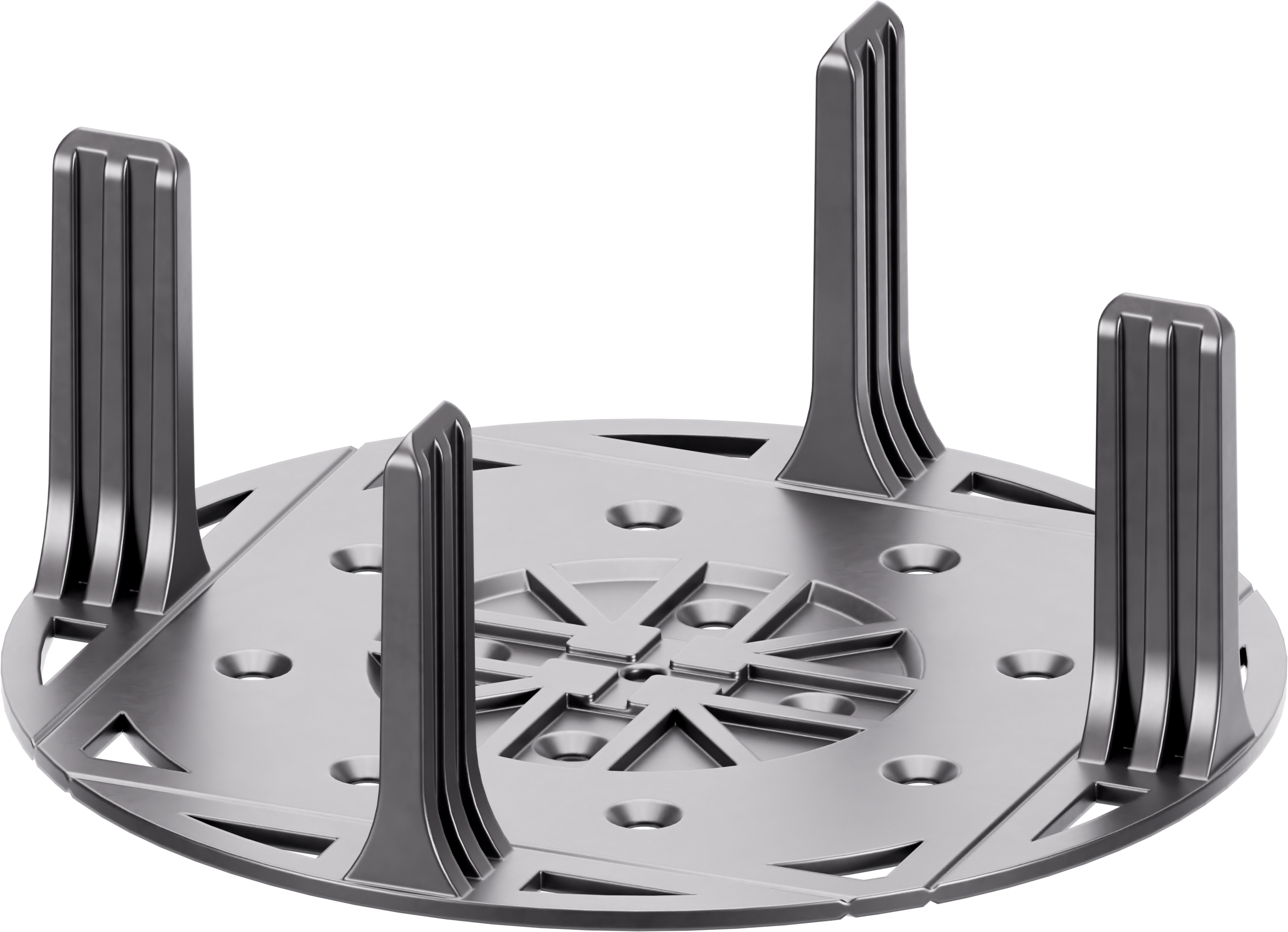

Product features: Dimensions and construction: An overlay with a diameter of 144 mm, designed to perfectly fit into the sockets of the pedestal spacer discs. Spacing elements: Equipped with four vertical protrusions that serve a dual function: they position the corners of the grates and define the width of the gap between the pavers. Mounting system: The element is installed using a "press-fit" method into the pedestal head, with an option for additional securing with screws to achieve maximum rigidity. Compatibility: Fully integrated with the SPIRAL and MAX series adjustable pedestals. |
|
|
|
| Total dimension - length |
|
145 mm
|
| Total product dimension length (inch) |
|
5 11/16 inch
|
| Total dimension - width |
|
145 mm
|
| Total product dimension width (inch) |
|
5 11/16 inch
|
| Head area |
|
(165 cm2)
|
| Head area [inch²] |
|
25.58 inch² inch2
|
| Head diameter (upper plate) |
|
Ø 145 mm
|
| Head diameter (top plate) [inch] |
|
5 11/16 inch
|
| Base diameter |
|
Ø 0 mm
|
| Weight |
|
~0.07 kg
|
| lbs |
|
0.1543 lbs
|
| Fire resistance |
|
E
|
| Minimum temperature [°C] |
|
od -20°C
|
| Minimalna temperatura [stopnie F] |
|
-4 F
|
| Maximum temperature [°C] |
|
do 65 °C
|
| Maksymalna temperatura [stopnie F] |
|
149 F
|
| Color |
|
black
|
| Mandatory warranty |
|
Limited 10-year residential and commercial warranty
|
| Country of origin |
|
Poland
|
| Material name |
|
PP
|
| Percentage of recycled material |
|
100 %
|
| Type of waste |
|
• non-hazardous waste - recyclable
|
| Project type |
|
• Fountain
• exterior use |
| Consists of |
|
GRP positioner
|
