| Short name |
|
DECS-PGC-(1)
|
| Full name |
|
DeckSafe grid end cap with screw
|
| Product group |
|
DeckSafe
|
| Code |
|
108.040111
|
| Application |
|
• terrace pavers
|
| Minimum height [mm] |
|
0 mm
|
| Maximum height [mm] |
|
0 mm
|
| Load resistance up to |
|
0 kg
|
| Load resistance up to [lbs] |
|
0 lbs
|
| What finishing materials can be used |
|
• DeckSafe
• concrete paver • ceramic tile • stone pavers |
| characteristic_attributes |
|

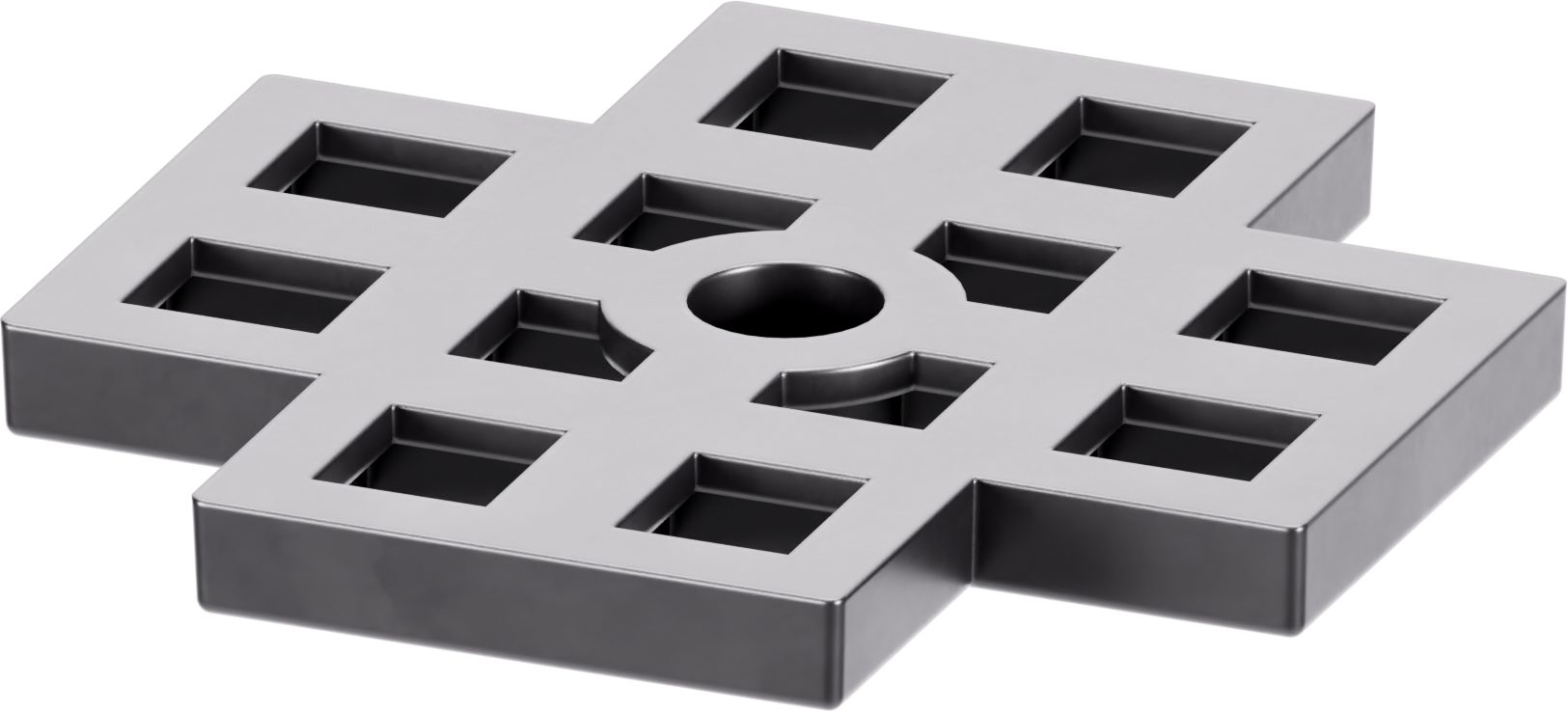

Product characteristics: Construction: Flat, ribbed cross-shaped element. Dimensions: 89 x 89 mm. Thickness: 8 mm. Function: Compensates for height differences resulting from the lowered corners of the DSP grid at their connection points. |
|
|
|
| Total dimension - length |
|
89 mm
|
| Total product dimension length (inch) |
|
3 1/2 inch
|
| Total dimension - width |
|
89 mm
|
| Total product dimension width (inch) |
|
3 1/2 inch
|
| Head area |
|
(0 cm2)
|
| Head area [inch²] |
|
0 inch² inch2
|
| Head diameter (upper plate) |
|
Ø 0 mm
|
| Base diameter |
|
Ø 0 mm
|
| Weight |
|
~0.03 kg
|
| lbs |
|
0.0661 lbs
|
| Fire resistance |
|
E
|
| Minimum temperature [°C] |
|
od -20°C
|
| Minimalna temperatura [stopnie F] |
|
-4 F
|
| Maximum temperature [°C] |
|
do 65 °C
|
| Maksymalna temperatura [stopnie F] |
|
149 F
|
| Mandatory warranty |
|
Limited 10-year residential and commercial warranty
|
| Country of origin |
|
Poland
|
| Percentage of recycled material |
|
100 %
|
| Type of waste |
|
• non-hazardous waste - recyclable
|
| Project type |
|
• Fountain
• exterior use |
| Consists of |
|
PGC Plug , Wkręt 6x80 Inox
|
