| Short name |
|
ADEC-ACA-(1)
|
| Full name |
|

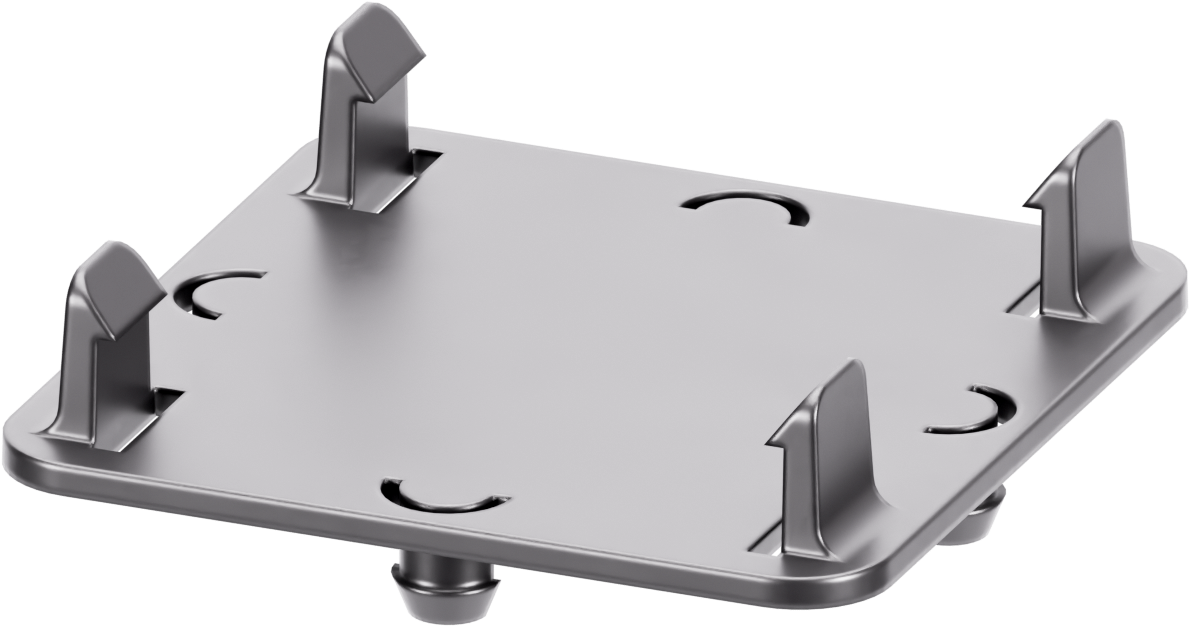

Fixed click adapter for AluDeck joist for STANDARD and CLEVER LEVEL pedestals, height 2 mm
|
| Product group |
|
AluDeck
|
| Code |
|
109.020111
|
| EAN |
|
5904276345399
|
| Application |
|
• terrace tiles
• terrace joist • wooden decking • wpc decking boards |
| Minimum height [mm] |
|
2 mm
|
| Minimum height [inch] |
|
1/16 inch
|
| Maximum height [mm] |
|
2 mm
|
| Maximum height [inch] |
|
1/16 inch
|
| Load resistance up to |
|
0 kg
|
| Load resistance up to [lbs] |
|
0 lbs
|
| What finishing materials can be used |
|
• AluDeck
• concrete paver • ceramic tile • aluminium joist • stone pavers |
| characteristic_attributes |
|
Product features: Click System: Equipped with top hooks (clips) designed for screwless installation of ADJ series aluminum joists. Material: High-quality plastic resistant to variable weather conditions and structural loads. Precise positioning: The underside features dedicated fixing pins that guarantee perfect seating in the pedestal head. |
|
|
|
| Total dimension - length |
|
58 mm
|
| Total product dimension length (inch) |
|
2 5/16 inch
|
| Total dimension - width |
|
58 mm
|
| Total product dimension width (inch) |
|
2 5/16 inch
|
| Head area |
|
(0 cm2)
|
| Head area [inch²] |
|
0 inch² inch2
|
| Head diameter (upper plate) |
|
Ø 0 mm
|
| Base diameter |
|
Ø 0 mm
|
| Weight |
|
~0.01 kg
|
| lbs |
|
0.022 lbs
|
| Fire resistance |
|
E
|
| Minimum temperature [°C] |
|
od -20°C
|
| Minimalna temperatura [stopnie F] |
|
-4 F
|
| Maximum temperature [°C] |
|
do 65 °C
|
| Maksymalna temperatura [stopnie F] |
|
149 F
|
| Mandatory warranty |
|
Limited 10-year residential and commercial warranty
|
| Country of origin |
|
Poland
|
| Material name |
|
PC
|
| Percentage of recycled material |
|
98 %
|
| Type of waste |
|
• non-hazardous waste - recyclable
|
| Project type |
|
• Fountain
• exterior use |
| Consists of |
|
Alu click adapter
|
