| Short name |
|
STA-120-220-AD-(36)
|
| Full name |
|

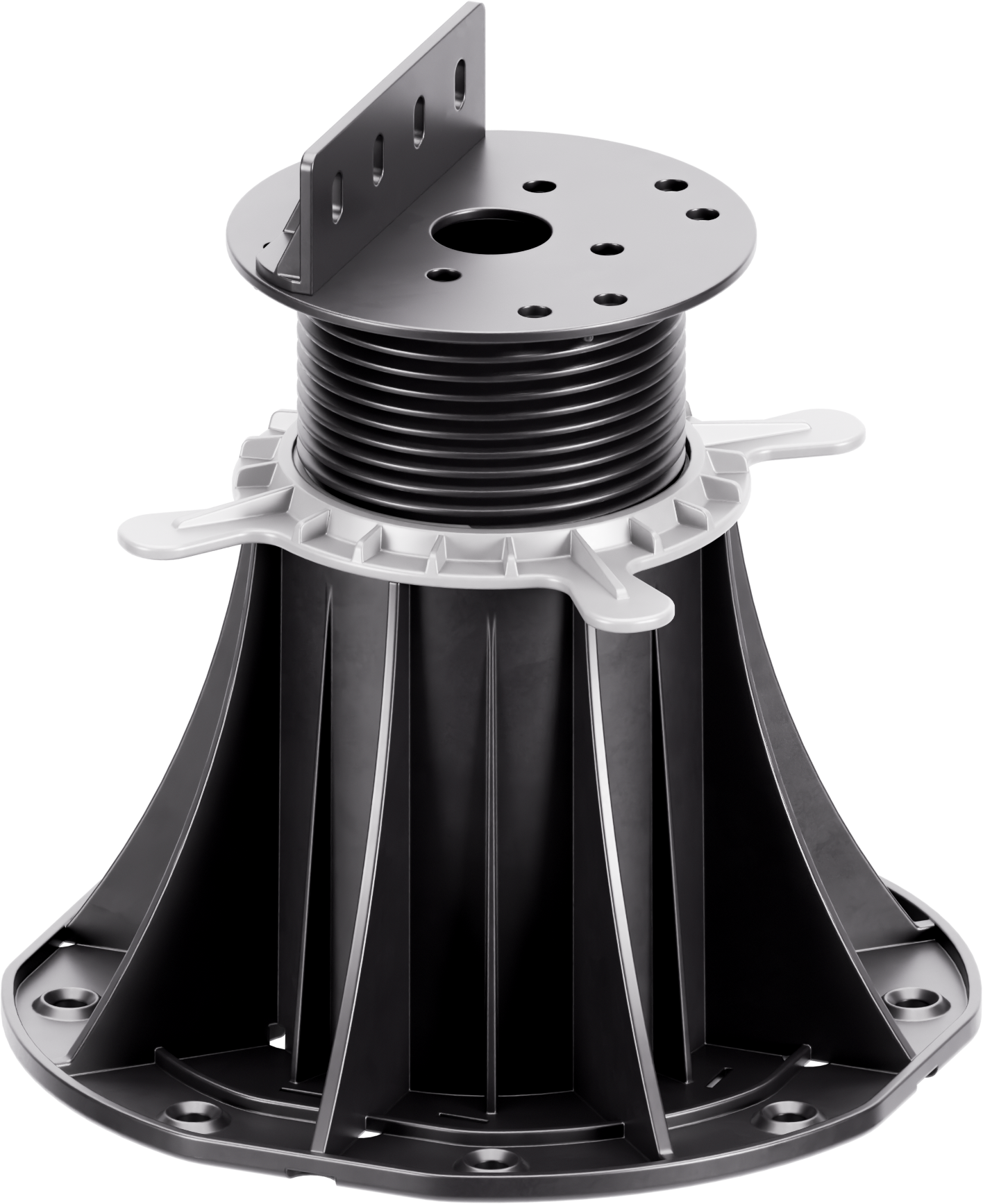

Adjustable pedestal STANDARD 120-220 mm for outdoor raised flooring for decking with AD
|
| Product group |
|
Standard
|
| Code |
|
102.040611
|
| EAN |
|
5904276341490
|
| Application |
|
• terrace joist
|
| Minimum height [mm] |
|
120 mm
|
| Minimum height [inch] |
|
4 3/4 inch
|
| Maximum height [mm] |
|
220 mm
|
| Maximum height [inch] |
|
8 5/8 inch
|
| Load resistance up to |
|
1000 kg
|
| Load resistance up to [lbs] |
|
2204.62 lbs
|
| Load resistance up to [kN] |
|
10 kN
|
| What finishing materials can be used |
|
• hardwood joist
• softwood joist • aluminium joist • WPC joist |
| Special Feature |
|
• Fire resistance
• Slope leveling • Sound insulation • Inspection access • Vertical edge |
|
|
|
| Regulation type |
|
smooth
|
| Total dimension - length |
|
182 mm
|
| Total product dimension length (inch) |
|
7 1/4 inch
|
| Total dimension - width |
|
182 mm
|
| Total product dimension width (inch) |
|
7 1/4 inch
|
| Head area |
|
(74 cm2)
|
| Head area [inch²] |
|
11.47 inch² inch2
|
| Head diameter (upper plate) |
|
Ø 100 mm
|
| Head diameter (top plate) [inch] |
|
3 15/16 inch
|
| Base diameter |
|
Ø 176 mm
|
| Base diameter [inch] |
|
6 7/8 inch
|
| Weight |
|
~0.39 kg
|
| lbs |
|
0.8598 lbs
|
| Fire resistance |
|
E
|
| Minimum temperature [°C] |
|
od -20°C
|
| Minimalna temperatura [stopnie F] |
|
-4 F
|
| Maximum temperature [°C] |
|
do 65 °C
|
| Maksymalna temperatura [stopnie F] |
|
149 F
|
| Color |
|
black, grey
|
| Mandatory warranty |
|
Limited 10-year residential and commercial warranty
|
| Country of origin |
|
Poland
|
| Material name |
|
PP
|
| Percentage of recycled material |
|
93.19 %
|
| Type of waste |
|
• non-hazardous waste - recyclable
|
| Project type |
|
• exterior use
|
| Consists of |
|
STANDARD base 4 , STANDARD 4 Screw , STANDARD Nut , Joist adapter for STANDARD - height 28 mm
|
